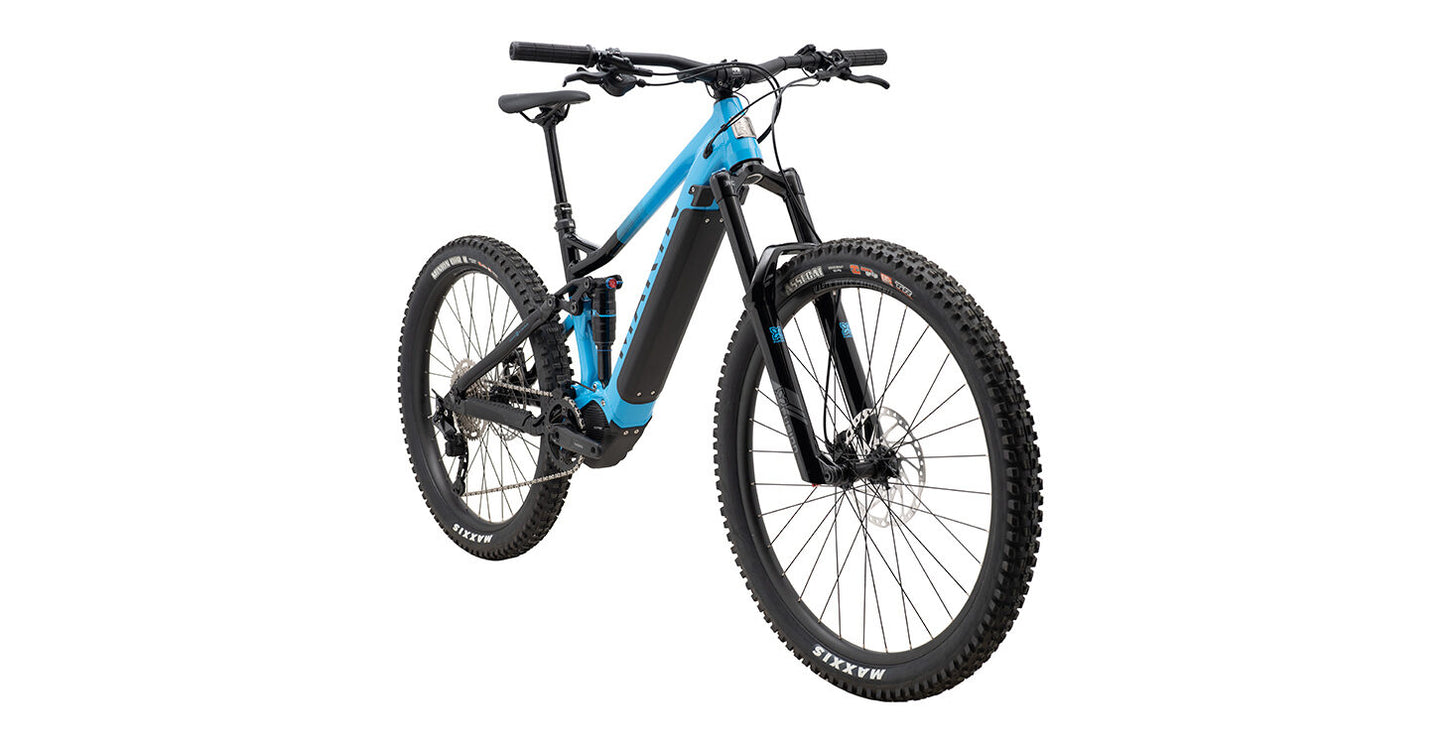

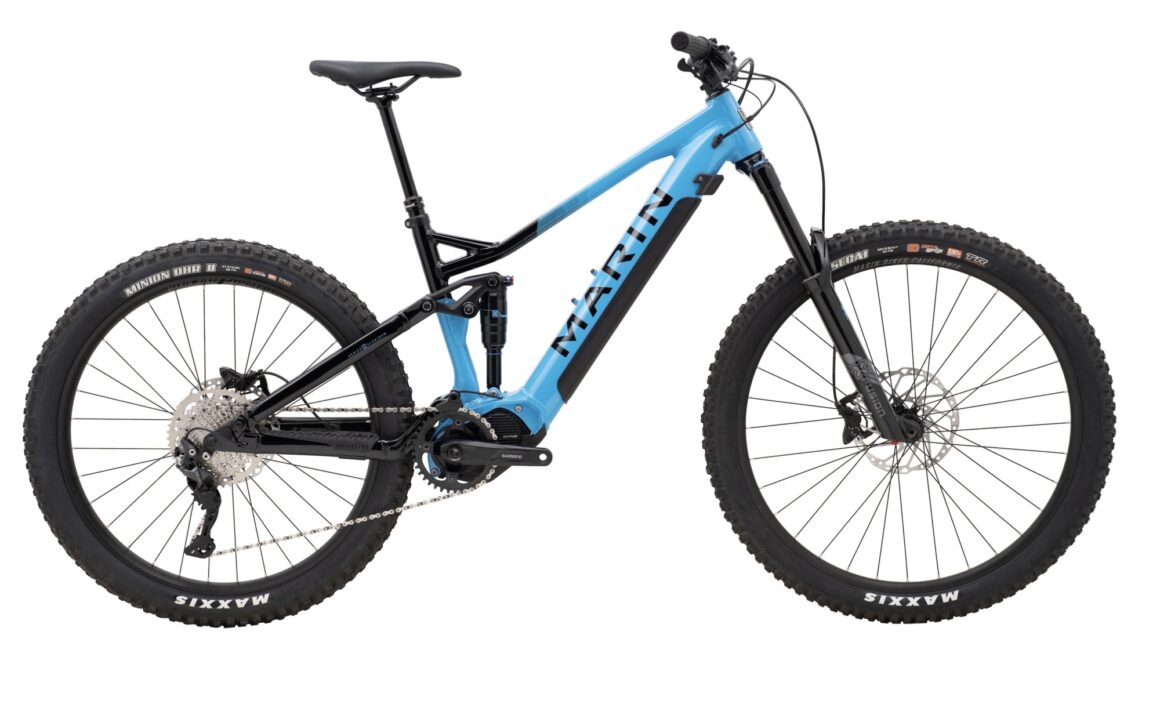

MARIN ALPINE TRAIL E

The Marin Alpine Trail E puts the fun and freedom of eMTB at a super-friendly price, because why should only the richest of riders get the good times?

We’ve created a big-mountain-capable eMTB that’s probably the best value eMTB on the planet and packed in the awesome Shimano EP6 drive unit, X-Fusion suspension, 10-speed Shimano drivetrain, Vee Tire Co. rubber, plenty of kick-ass Marin components and a long-lasting internal 504Wh battery. Rounding out all this goodness are powerful 4-piston TRP brakes with 203mm rotors.

SPECIFICATIONS

• FRAME

  Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

• FRONT SUSPENSION

  X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset

• REAR SUSPENSION

  X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount

• RIMS

  Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

• HUB REAR

  Forged Aluminum, 148x12mm, Disc, 32H

• HUB FRONT

  Forged Aluminum, 110x15mm, Disc, 32H

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible

• DERAILLEUR, REAR

  Shimano CUES 10-Speed

• SHIFT LEVER

  Shimano Deore, 10-Speed, I-Spec EV

• CRANKSET

  Shimano EM600, 160mm Length, 38t Chainring

• MOTOR

  Shimano Steps EP6 Drive Unit, 250W, 85Nm

• CHAIN

  KMC X-10E, Silver

• CASSETTE

  Shimano Deore 10-speed 11-46T

• BRAKE, FRONT

  TRP Slate Evo, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor

• BRAKE, REAR

  TRP Slate Evo, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor

• BRAKE LEVERS

  TRP Slate Evo, 4-Piston Hydraulic Disc

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

  Marin 3D Forged Alloy, 35mm

• GRIPS

  Marin Grizzly Lock On

• HEADSET

  FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm

• SADDLE

  Marin eMTB Saddle

• PEDALS

  Marin MTB Plastic

• BATTERY

  BT-8035L, Internal 504Wh

• DISPLAY

  SC-E600 Display

• SWITCH

  SW-EN600L Left Hand Switch for Assist Mode Change

• EXTRAS

  Shimano CS-EM800

• EXTRAS

  Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide

Specifications, pricing, and availability are subject to change without notice.
