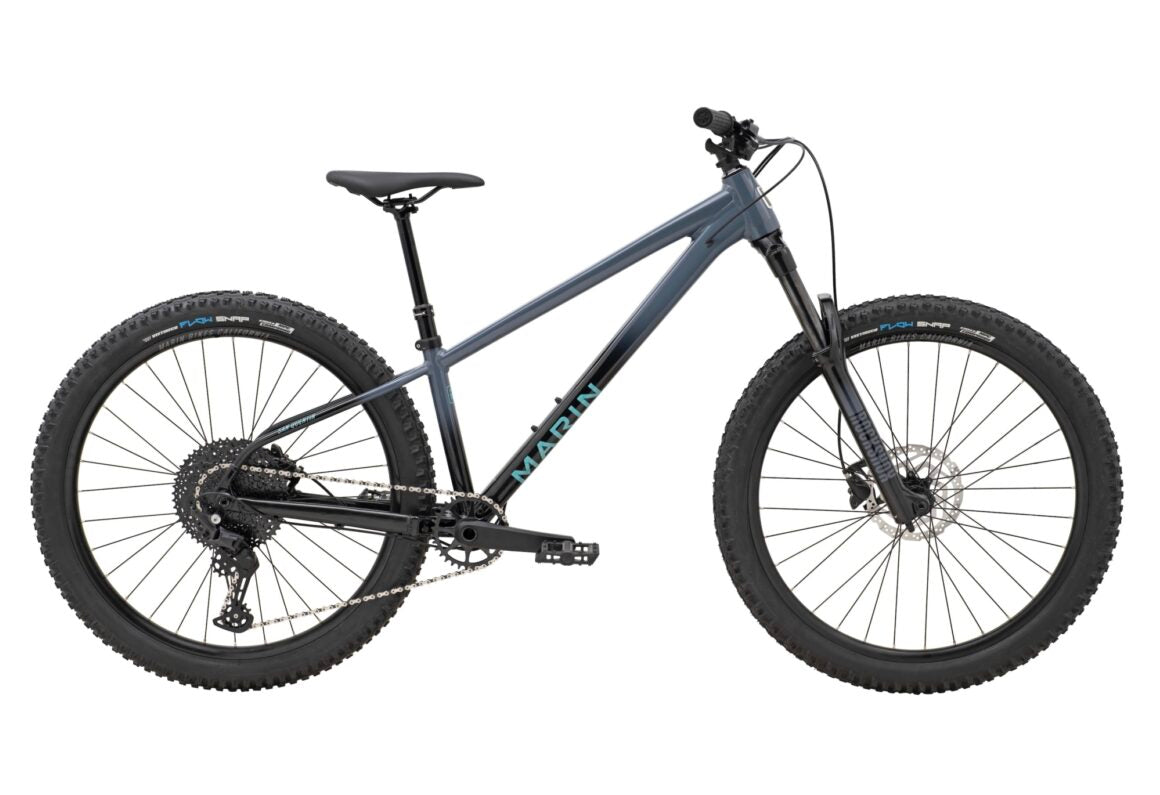

MARIN SAN QUENTIN 2

DOWNHILL TRAILS

LIGHT DIRT JUMP

ENDURO

The San Quentin 2 is our mid-pack model that blends bang-for-your-buck value with kick-ass components. We’ve packed in a TranzX dropper post, an RockShox suspension fork, Shimano brakes and drivetrain, Vee Tire rubber and plenty of awesome Marin kit to create a bike you’ll love to rip, but that won’t shred your budget.

Key upgrades over the San Quentin 1:

• Series 3 aluminum frame w/12x148mm thru axle
• RockShox FS35 Silver fork w/140mm travel
• Shimano Deore wide range 1x 11-speed drivetrain
• Shimano hydraulic disc brakes

SPECIFICATIONS

• FRAME

  All New Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

• FRONT SUSPENSION

  RockShox FS35 Silver, 110x15mm Boost Spacing, 140mm Travel, Maxle Stealth

• RIMS

  Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

• HUB, REAR

  Shimano HF-MT400B, 148x12, Disc, Standard Freehub Body

• HUB, FRONT

  Shimano HF-MT400B, 110x15mm, Disc

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead

• DERAILLEUR, REAR

  Shimano Deore, 11-Speed, SGS

• DERAILLEUR, FRONT

  -

• SHIFT LEVER

  Shimano Deore, 11-Speed, SL-5100R

• CRANKSET

  Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

• BOTTOM BRACKET

  External Sealed Cartridge Bearing

• CHAIN

  KMC X-11 Silver and Black

• CASSETTE

  SunRace, 11-Speed, 11-51T, ED Black

• BRAKE, FRONT

  Shimano BR-MT201 Hydraulic Disc Brake, 180mm Rotor

• BRAKE, REAR

  Shimano BR-MT201 Hydraulic Disc Brake, 180mm Rotor

• BRAKE LEVERS

  Shimano BR-MT201 Hydraulic Disc

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM



  Marin 3D Forged Alloy, 35mm



• GRIPS

  Marin Grizzly Lock On

• HEADSET

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  TranzX, YSP18, 1x Remote, Size S 125mm Travel, Size M-XL 150mm Travel, 30.9mm

• SADDLE

  Marin Speed Concept

• PEDALS

  Nylon Platform

• EXTRAS

Specifications, pricing, and availability are subject to change without notice.
