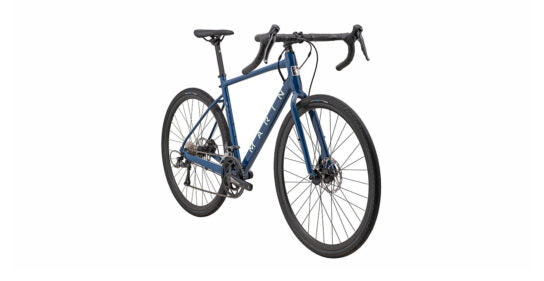

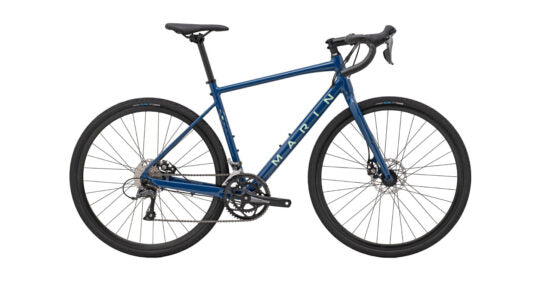

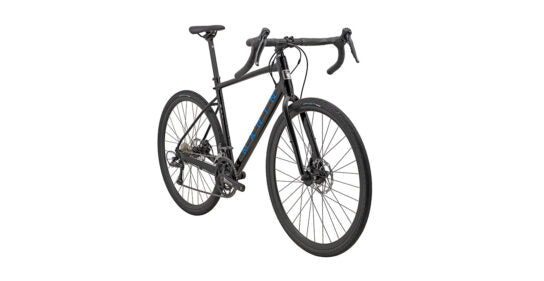

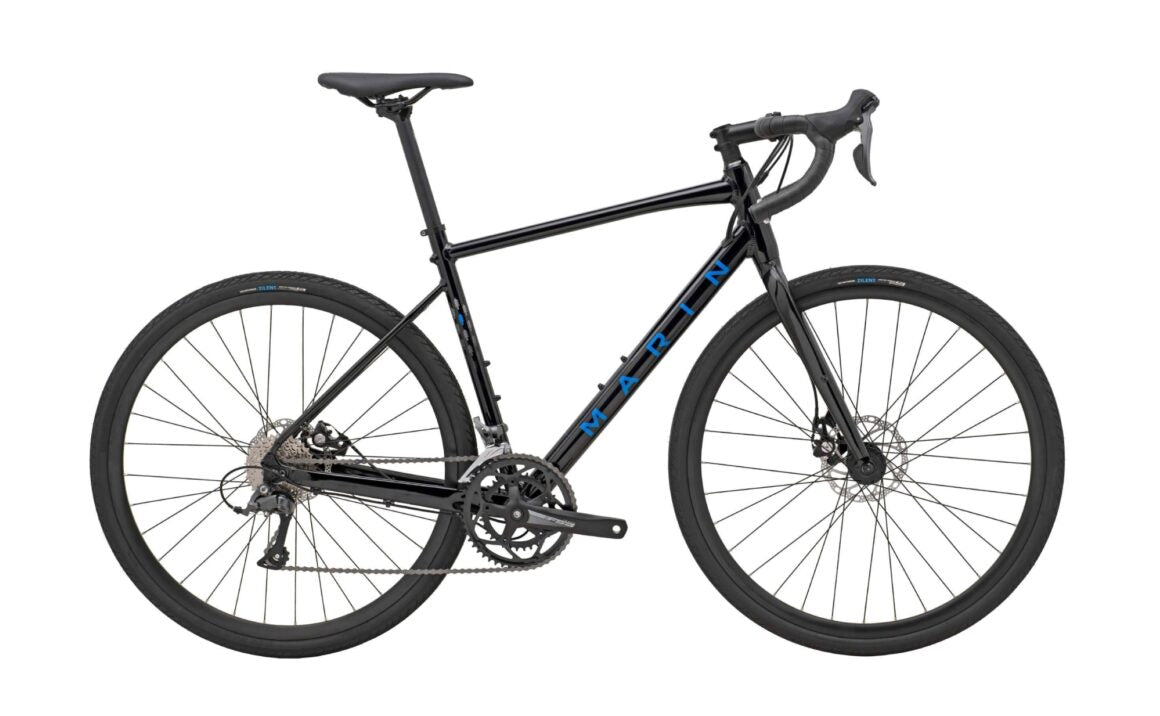

MARIN GESTALT

ADVENTURE ROAD RIDING

LONG DISTANCE COMMUTING

ENDURANCE AND ALL-WEATHER PAVEMENT

The Gestalt is for the drop bar rider that doesn’t want to stick to pavement, and can’t help but get dirty no matter the route. Long distance commuters and all-weather riders will appreciate the fender and rack mounts and the sure stopping disc brakes, and the larger volume tires are right at home on that unexpected detour.

Updated for 2023, with a 0.5° slacker headtube angle and increased tire clearance (up to 700x45mm).

SPECIFICATIONS

• FRAME

  Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts

• FORK

  6061 Aluminum, Straight-Blade, Post-Mount Disc

• RIMS

  Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific

• HUB, REAR

  Forged Aluminum Alloy, 6-Bolt Disc, 32H

• HUB, FRONT

  Forged Aluminum Alloy, 6-Bolt Disc, 32H

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co., Zilent, 700x35

• DERAILLEUR, REAR

  Shimano Claris 8-Speed

• DERAILLEUR, FRONT

  Shimano Claris

• SHIFT LEVER

  Shimano Claris 2x8-Speed

• CRANKSET

  FSA Tempo Compact, 50/34T

• BOTTOM BRACKET

  Sealed Bearing Square Taper

• CHAIN

  KMC Z8

• CASSETTE

  SunRace 8-Speed, 11-32T

• BRAKE, FRONT

  Tektro MD-C40 Road Mechanical Disc, 160mm Rotor

• BRAKE, REAR

  Promax Render R Road Mechanical Disc

• BRAKE LEVERS

  Shimano w/ Integrated Shifters

• HANDLEBAR

  Marin Butted Alloy, Compact 12º Flared Drop

• STEM

  Marin 3D Forged Alloy

• GRIPS

  Marin Perforated Tape

• HEADSET

  FSA No.8B

• SEATPOST

  Marin Alloy, 27.2mm

• SADDLE

  Marin Beyond Road Concept

• PEDALS

  Commute Platform

Specifications, pricing, and availability are subject to change without notice.
