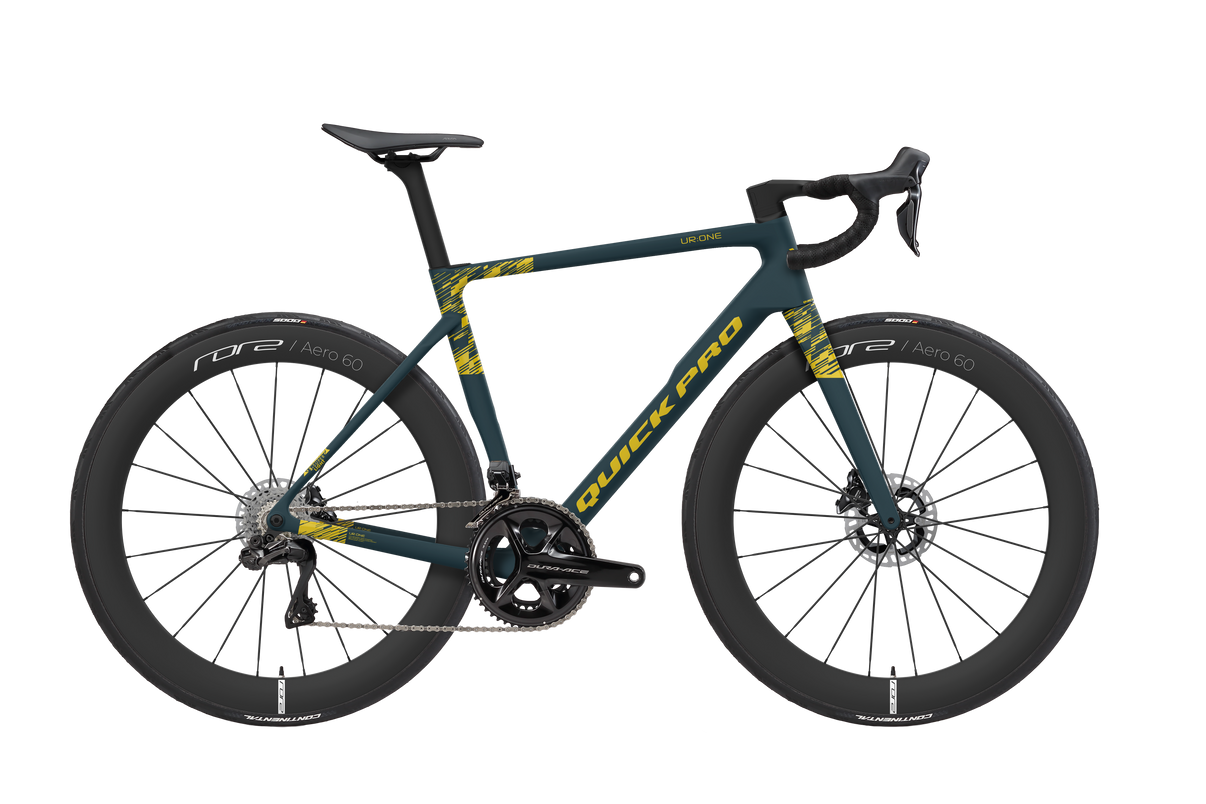

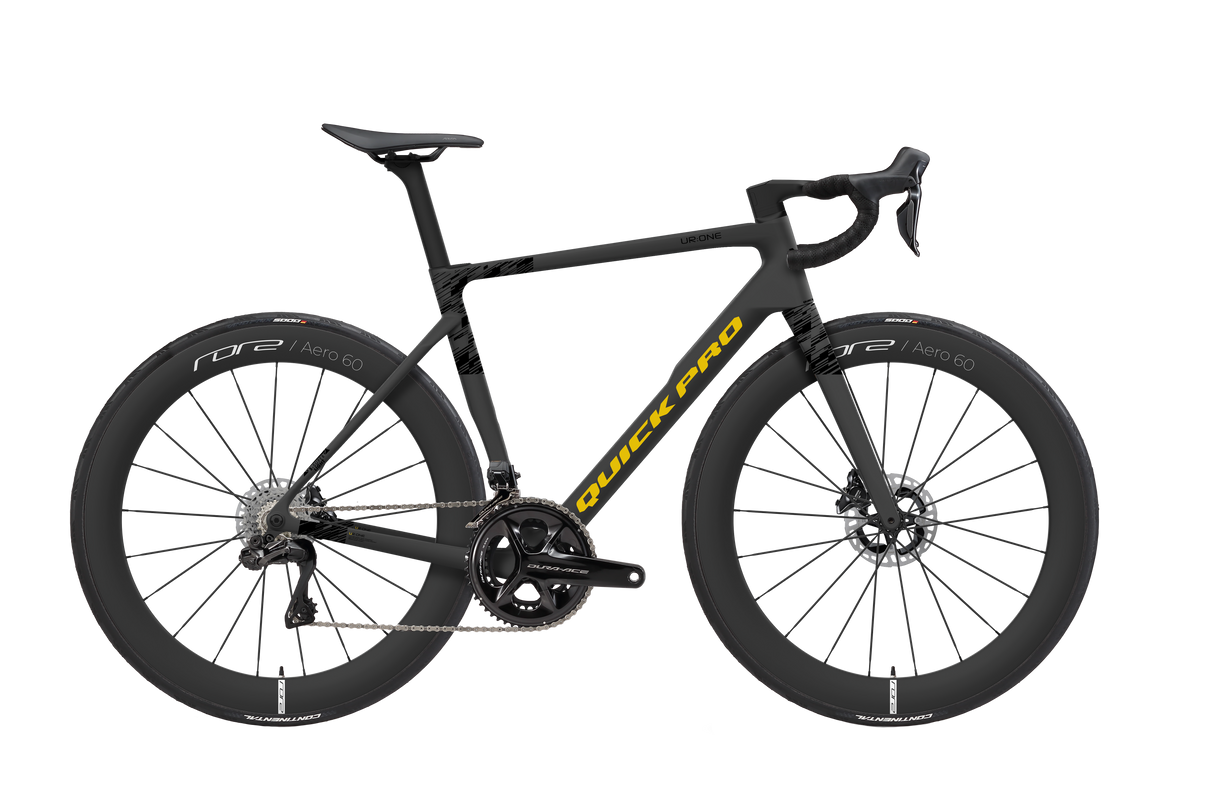

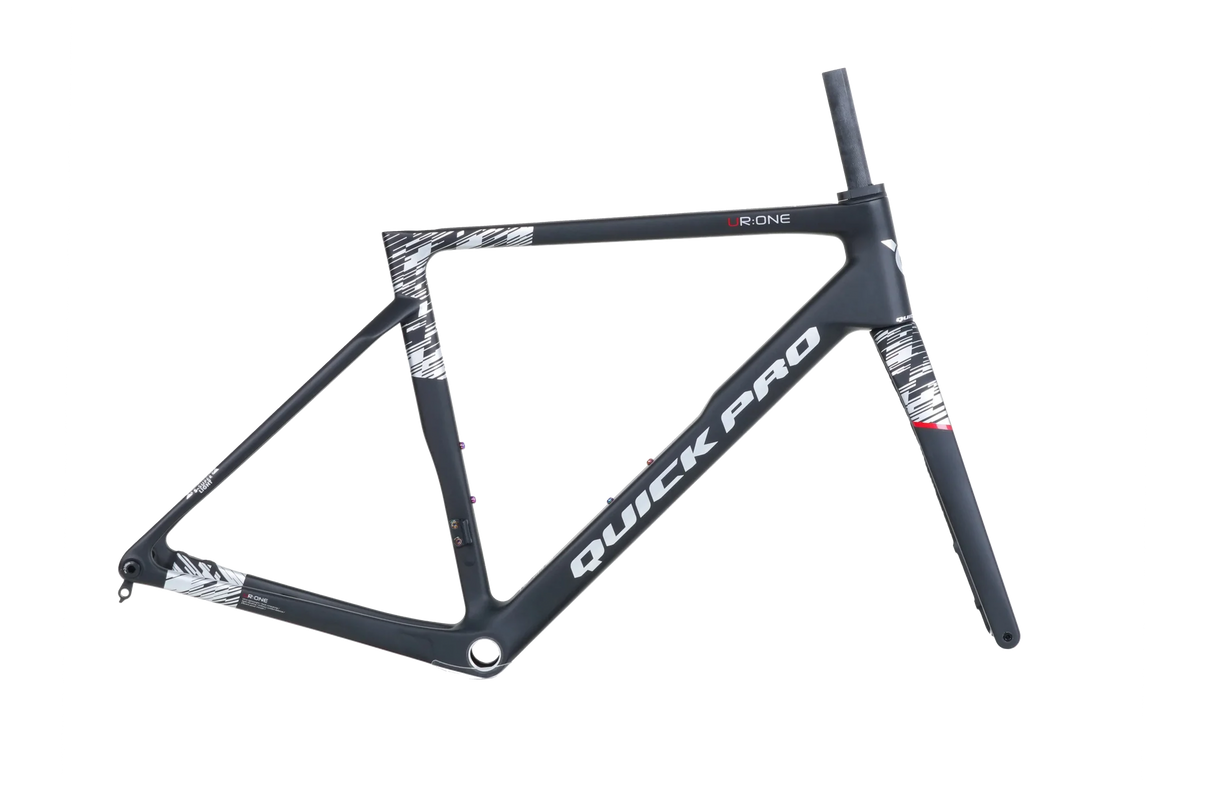

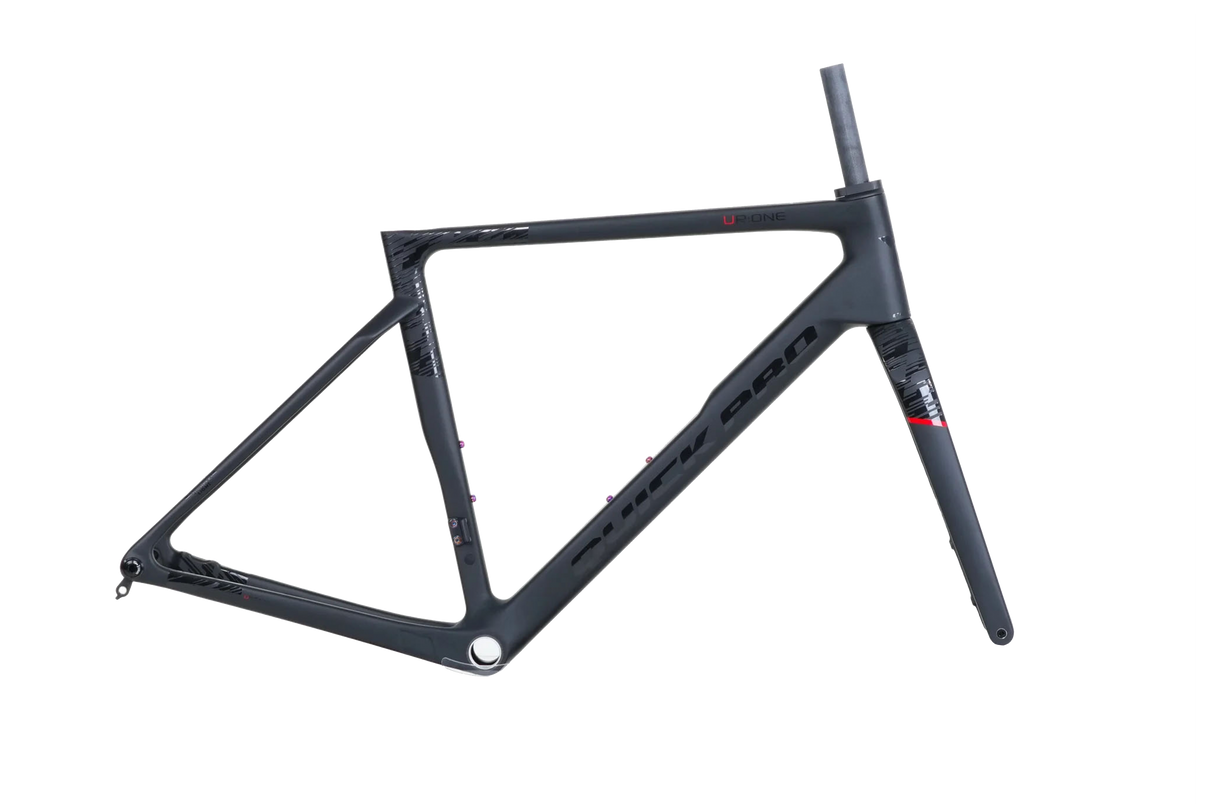

Quick Pro UR:ONE Frame

UR:ONE All-round Race Bike, Engineered to Defy Gravity

Every gram matters. Every watt counts. UR:ONE is Quick Pro's lightest and most advanced road platform, engineered for riders who demand explosive climbing performance without compromising stiffness, control, or confidence. Built around a premium high-modulus carbon construction, it transforms every acceleration into forward momentum while remaining composed on long mountain descents and technical roads.

Designed with modern racing standards—including UDH compatibility, fully integrated cable routing, and optimized aerodynamics—UR:ONE proves that an ultralight bike no longer has to sacrifice versatility or everyday rideability. From summit finishes to all-day alpine adventures, it delivers speed where it matters most.

Featherweight by Design

High-Strength, High-Modulus carbon fiber brings the UR:ONE to just 629g in size M — the lightest frame in the Quick Pro lineup.

Climbs Light, Cuts Wind

Validated at the Silverstone Sports Engineering Hub, the UR:ONE pairs feathery climbing weight with wind-tunnel-proven aero efficiency — fast in every direction the road turns.

Race-Ready, All-Day Geometry

A higher stack, lower bottom bracket, and 32mm tire clearance keep the UR:ONE stable over long, varied terrain without losing its racing edge.



Code	Measurement	XXS (432)	XS (446)	S (470)	M (495)	L (518)	XL (542)
A	Seat Tube Length (mm)	432	446	470	495	518	542
B	Top Tube Length (mm)	497	512	531	551	570	592
C	Seat Tube Angle (°)	75.5°	75.2°	74.2°	73.8°	73.5°	73°
D	Head Tube Angle (°)	70.7°	71.8°	72.5°	73.8°	73°	73.2°
E	Head Tube Length (mm)	99	108	121	146	172	197
F	Chainstay Length (mm)	408	408	408	408	408	408
G	Wheelbase (mm)	968	971.5	975	987	1002	1015
H	Fork Offset (mm)	47	47	47	44	44	44
I	Bottom Bracket Drop (mm)	74	74	74	72	72	72
J	Front Center (mm)	370	370	370	370	370	370
K	Standover Height (mm)	710	724	745	770	794	818
—	Stack-to-Reach Ratio (STR)	1.36	1.36	1.38	1.41	1.44	1.47
—	Reach (mm)	367	376	381	390	399	408
—	Stack (mm)	502	514	529	553	578	603

Stock Settup

• Seatpost:37.5cm
• Offset:Zero
• Handle Bar:No Handle Bar
• Groupset:No Group Set
• Power Meter Addon:No Power Meter
• Bottom Bracket:No Bottom Bracket
