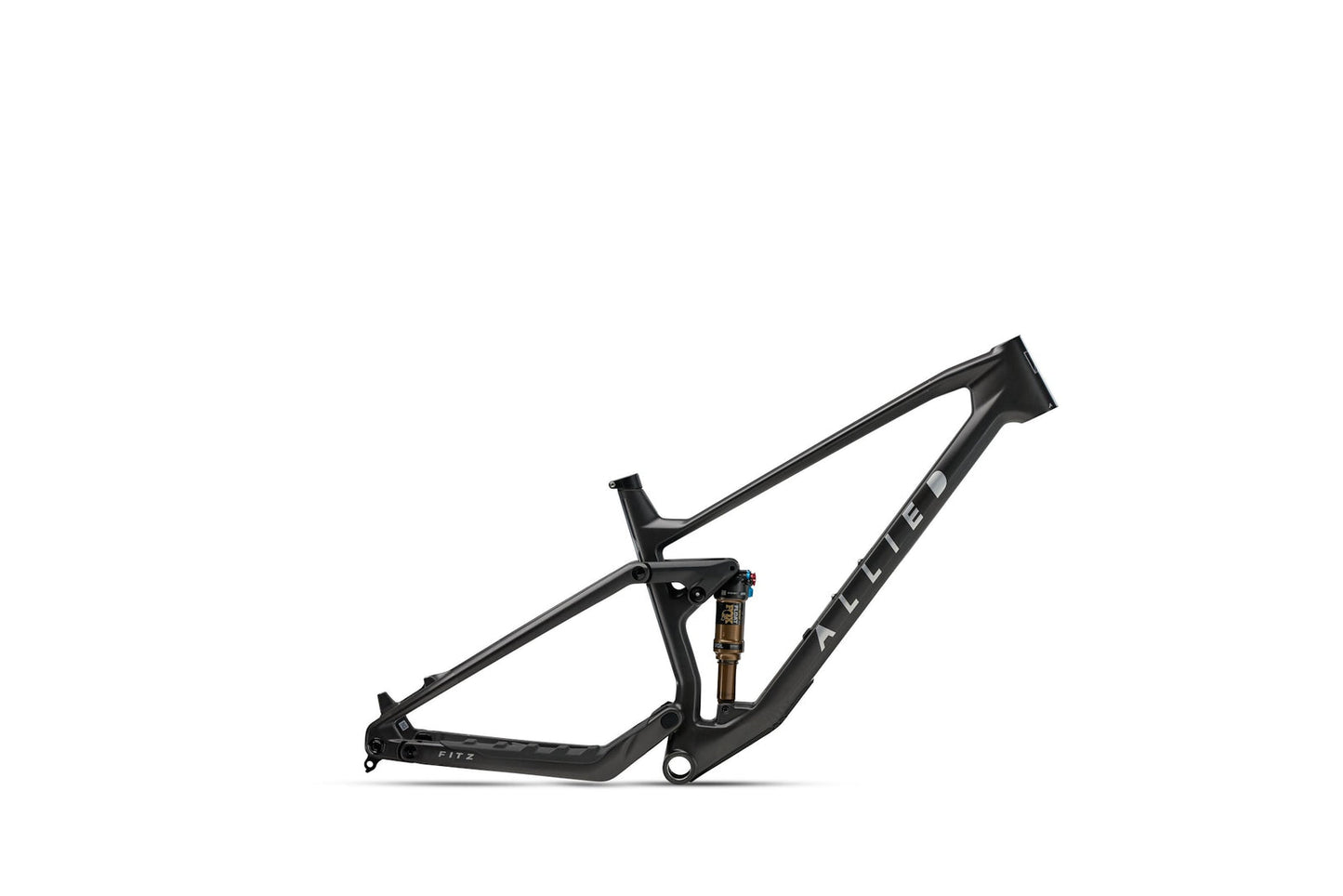

Name: Allied Cycle Works Fitz Frameset
Brand: Allied Cycle Works
Price: 3900.0 USD
Availability: InStock

Build Your FITZ Frameset Build Your FITZ Frameset Current lead time is 3 - 5 weeks. Schedule your consultation appointment HERE

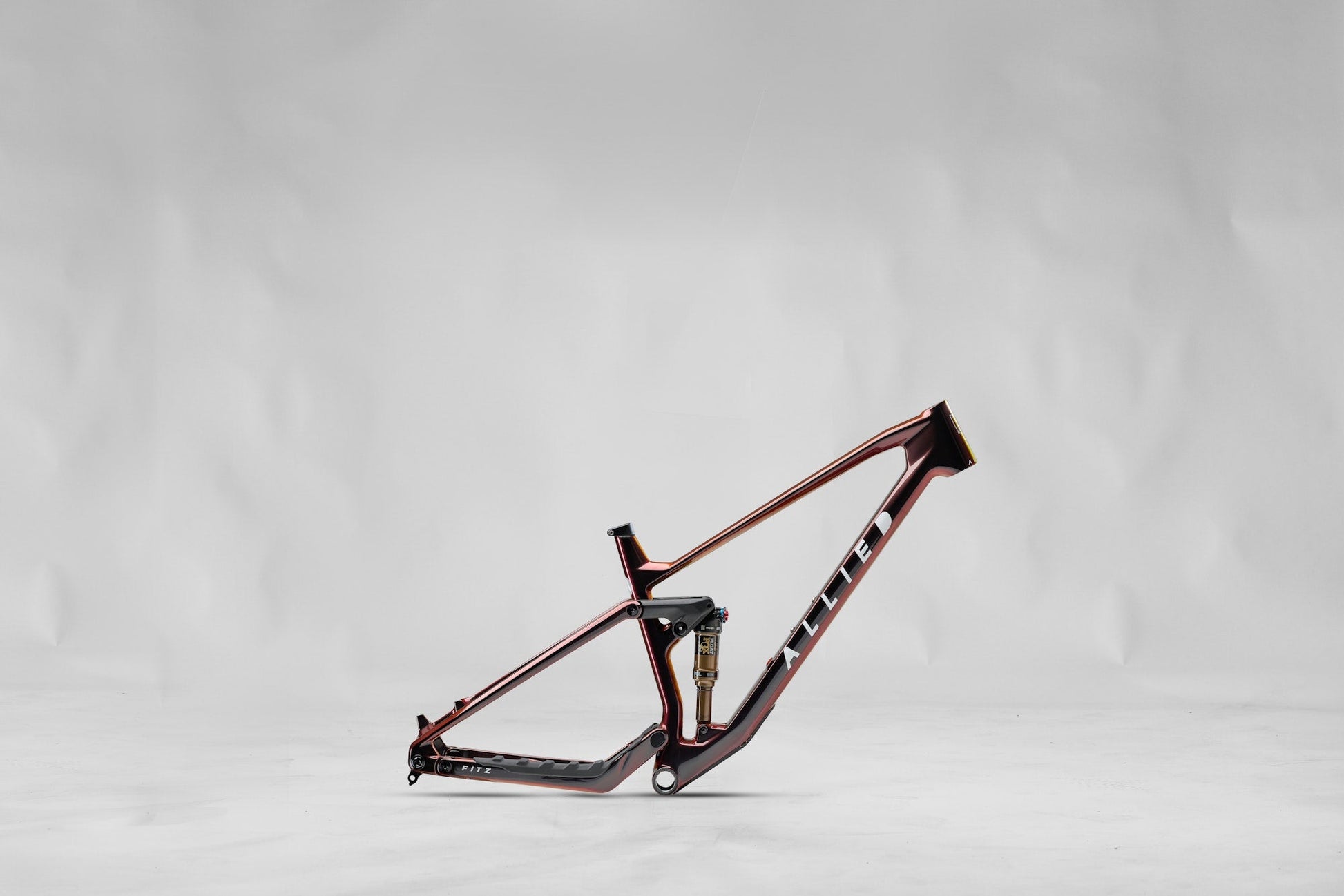

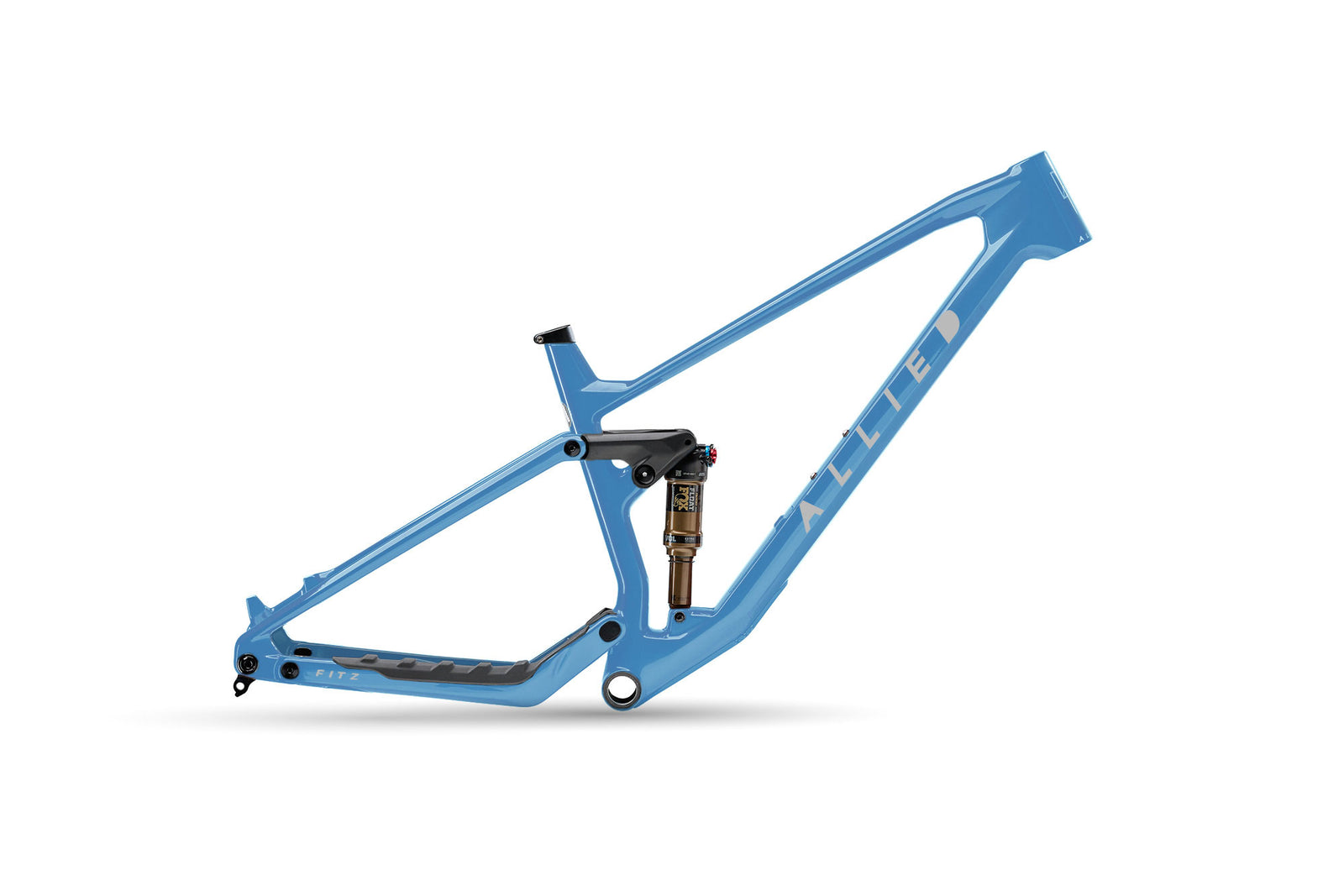

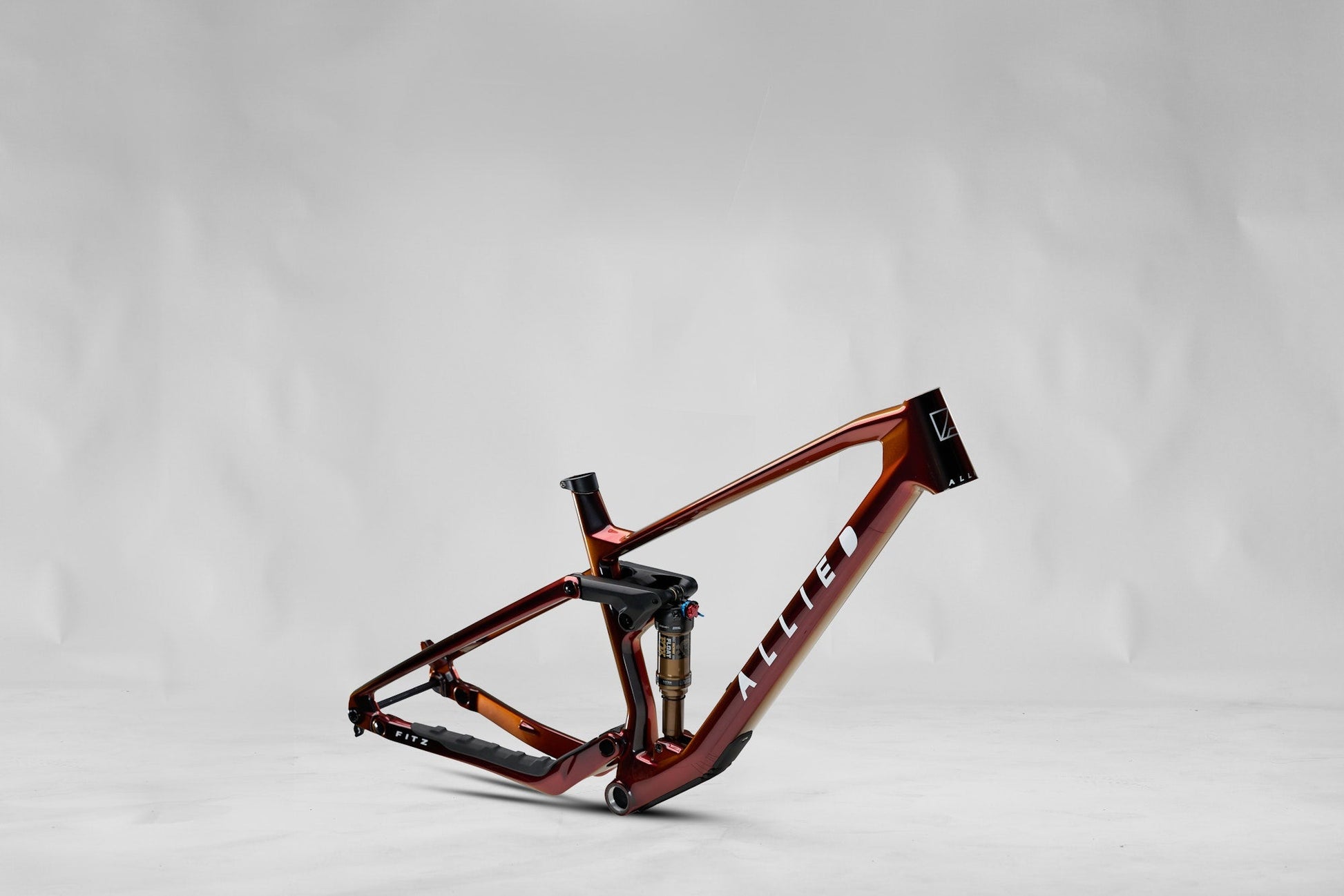

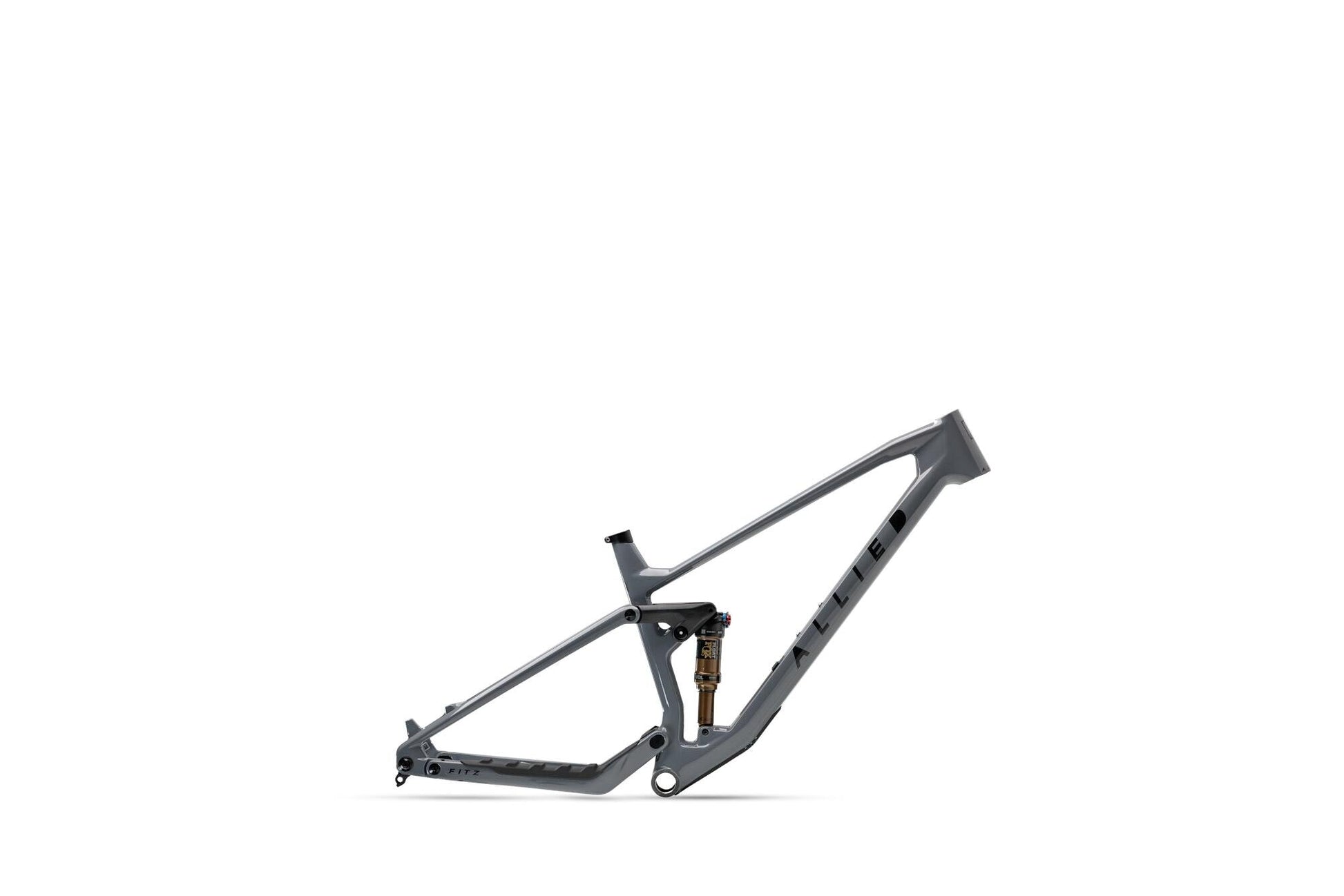

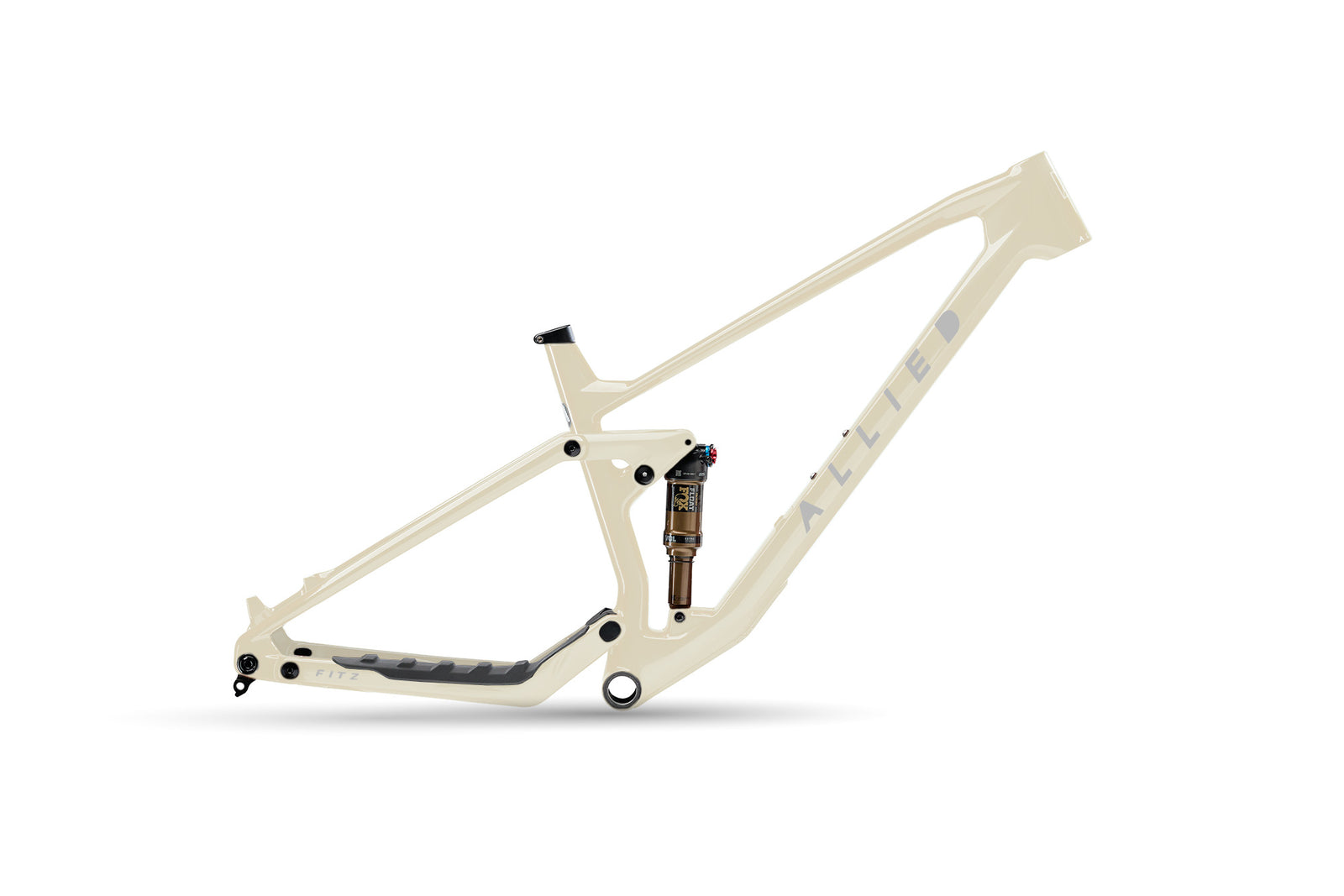

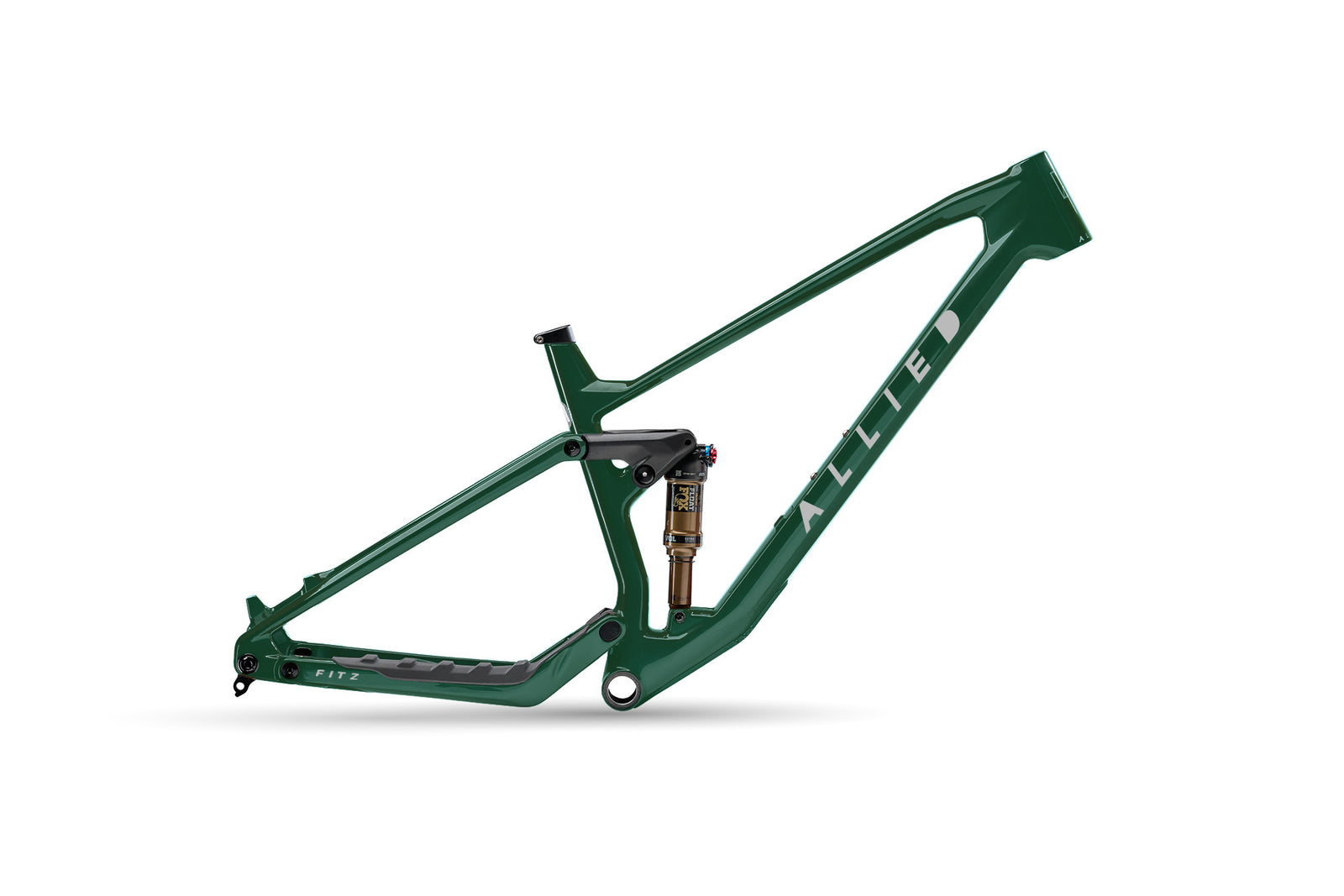

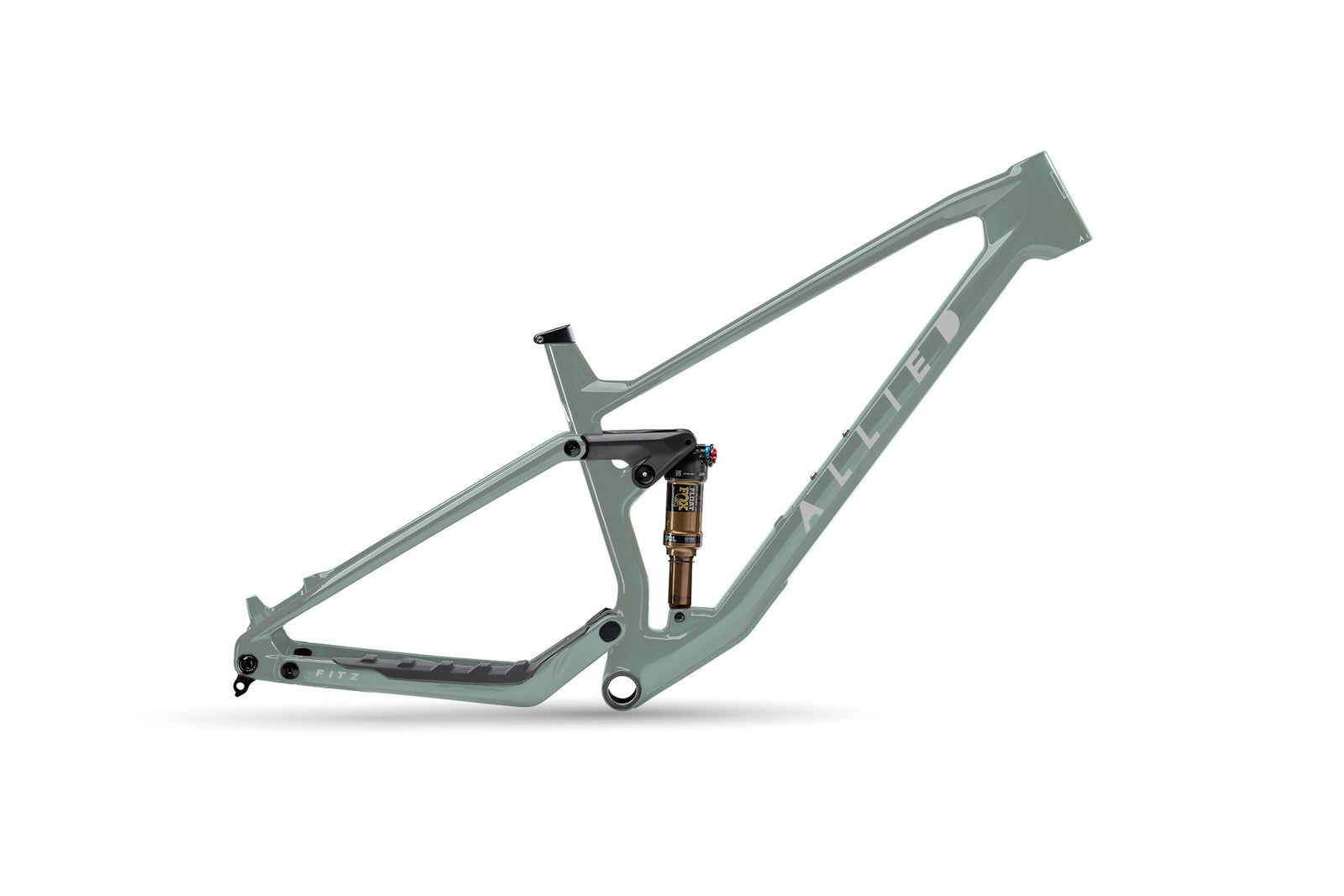

The FITZ frameset is where your dream trail bike begins. A featherweight carbon frame paired with a FOX Factory FLOAT 210x50 shock provides the ideal foundation for a fully custom build, from component choice to paint.

Carbon 140mm frame
FOX Factory suspension
Wolf Tooth Premium Headset

Taking Trail Back to the Roots

Over the past years, capability became synonymous with added features, and weight was accepted as the cost of admission. FITZ challenges that assumption. It’s a featherweight trail bike that delivers control, composure, and confidence—built for riders who value precision over excess.

Where Light Meets Capable

FITZ is where lightweight efficiency and trail capability converge. With 140mm of composed travel, it remains calm and controlled through steep, technical terrain, yet feels almost weightless when the trail turns skyward. It’s a balance that’s rare in trail bikes today—one that rewards effort, sharpens rider input, and delivers confidence without asking you to carry more bike than you need.

Geometry

With a long reach and a slack 64.5° head tube angle, FITZ is built for stability without sacrificing agility. The geometry keeps the bike composed at speed and confident through technical terrain, delivering control you can trust as conditions change.

Geometry

All units are in Millimeters or Degrees

	SM	MD	LG	XL
a Stack	610.7	619.7	633.3	646.8
b Reach	430	455	480	505
c Effective top tube	575	603	632	660
d Seat tube length	380	410	430	460
e Head tube length	95	105	120	135
f Head tube angle	64.5°	64.5°	64.5°	64.5°
g Seat tube angle	76.6°	76.6°	76.5°	76.5°
h Bottom bracket drop	35	35	35	35
i Chainstay length	440	440	440	440
k Wheelbase	1193	1223	1254	1286
l Standover height	797.2	814.6	832.4	854.9
n Front center	753.3	782.6	814.1	845.5
o Wheel size	29	29	29	29
