Name: Allied Cycles Able Frameset
Brand: Allied Cycle Works
Price: 4500.0 USD
Availability: InStock

Build Your ABLE Frameset Current lead time is 3 - 5 weeks. Schedule your consultation appointment HERE.

Wanna build your dream gravel bike? Whether you're going DIY or want us to tag along for the build, ABLE's frameset is the perfect canvas for custom specs and custom paint.

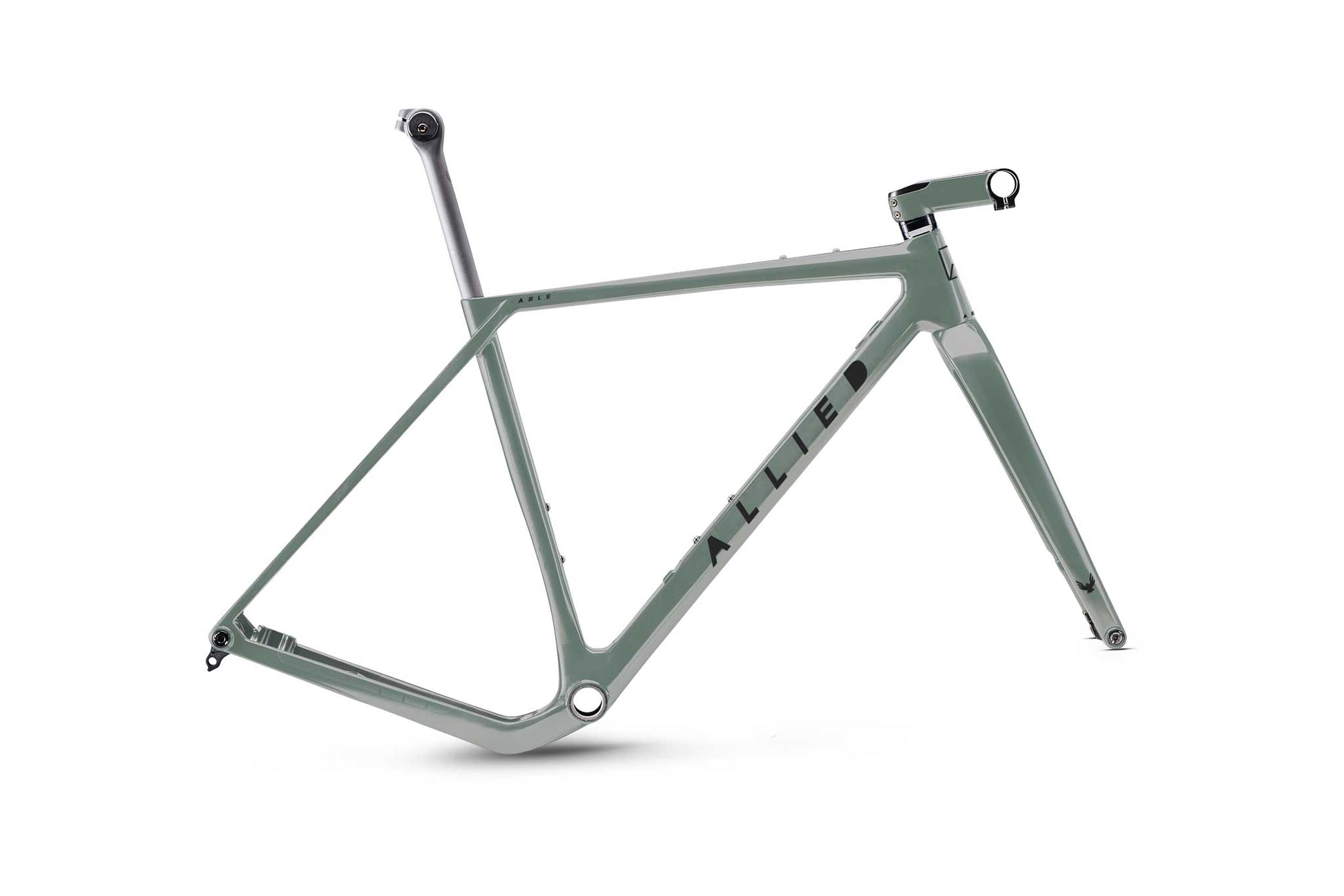

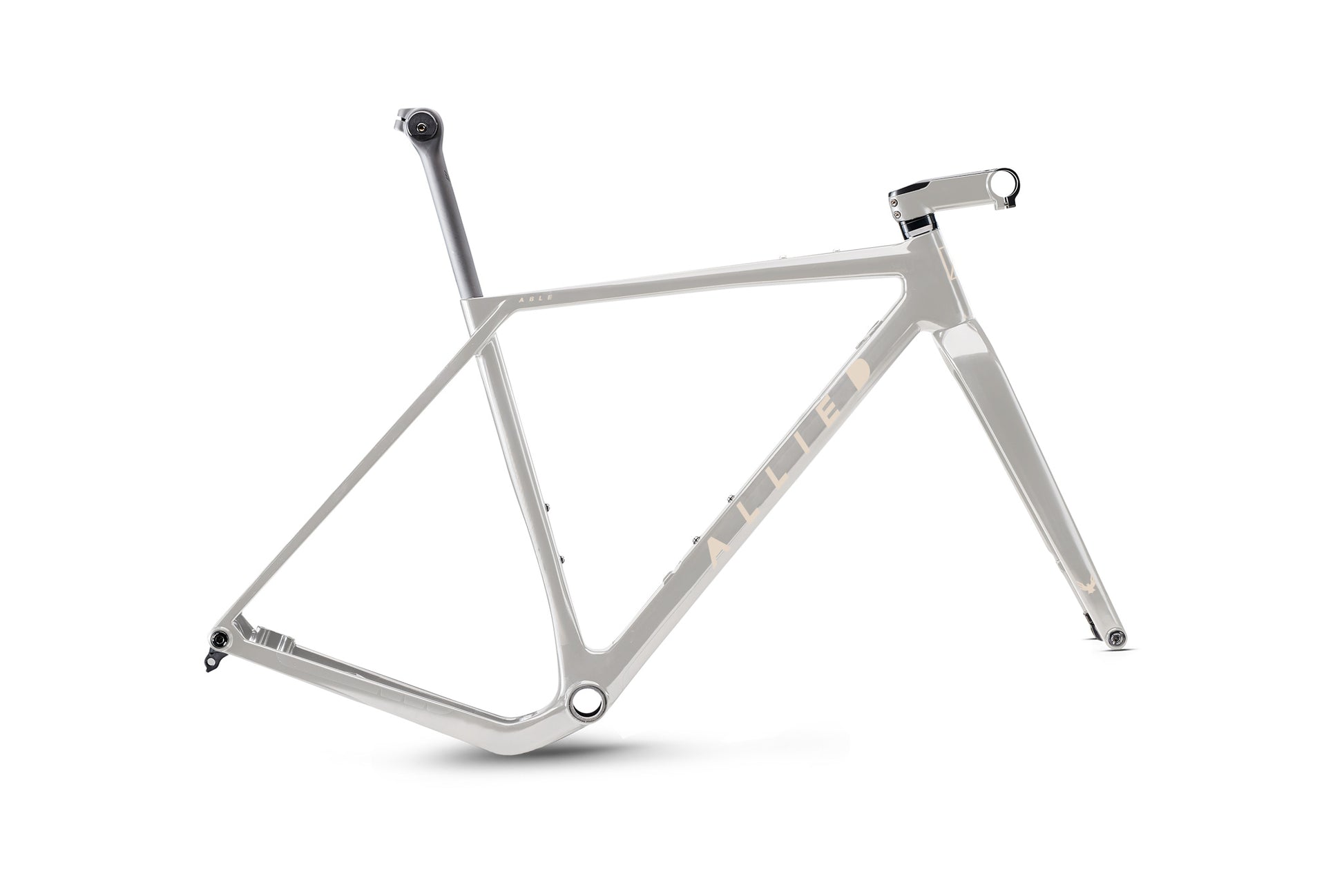

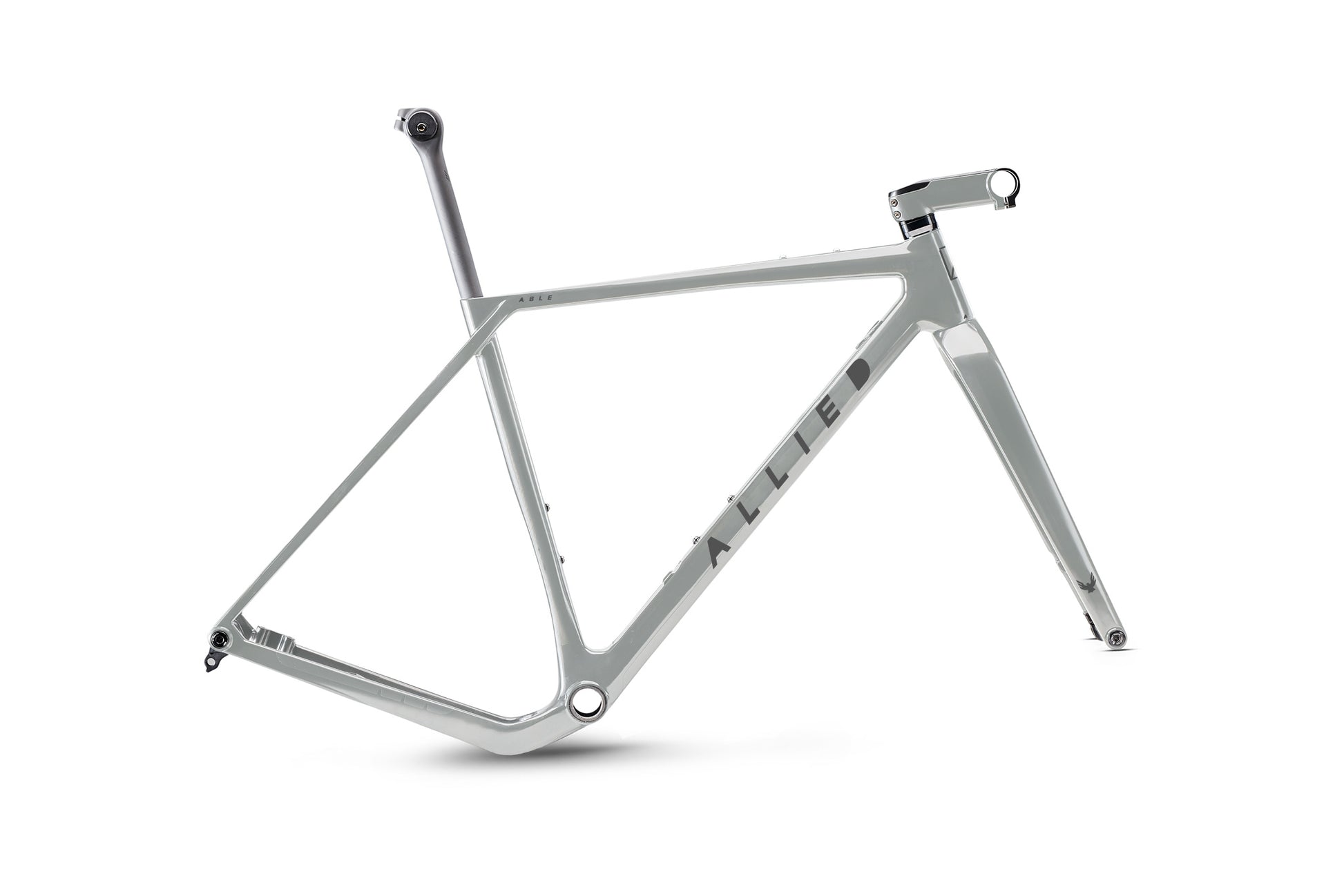

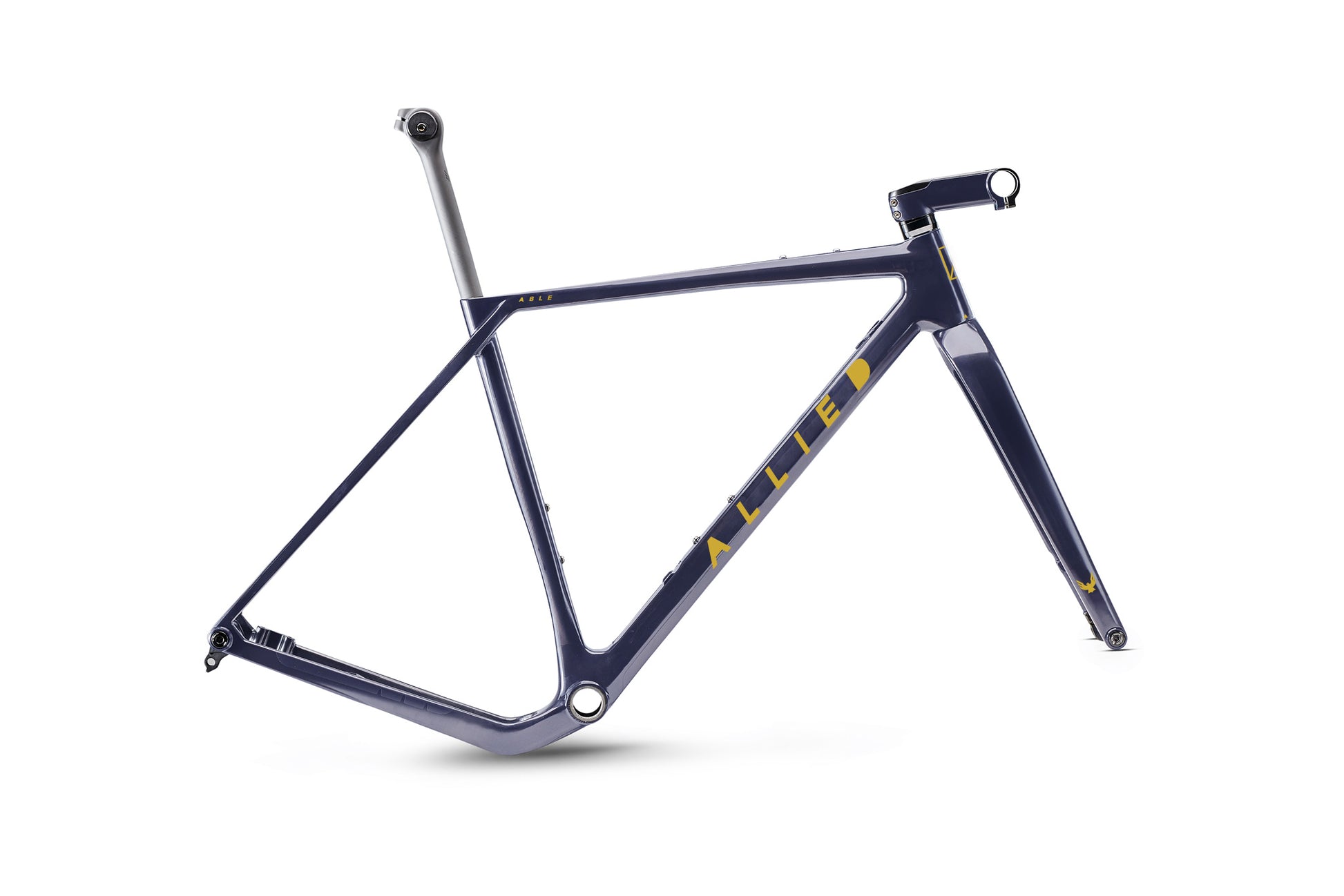

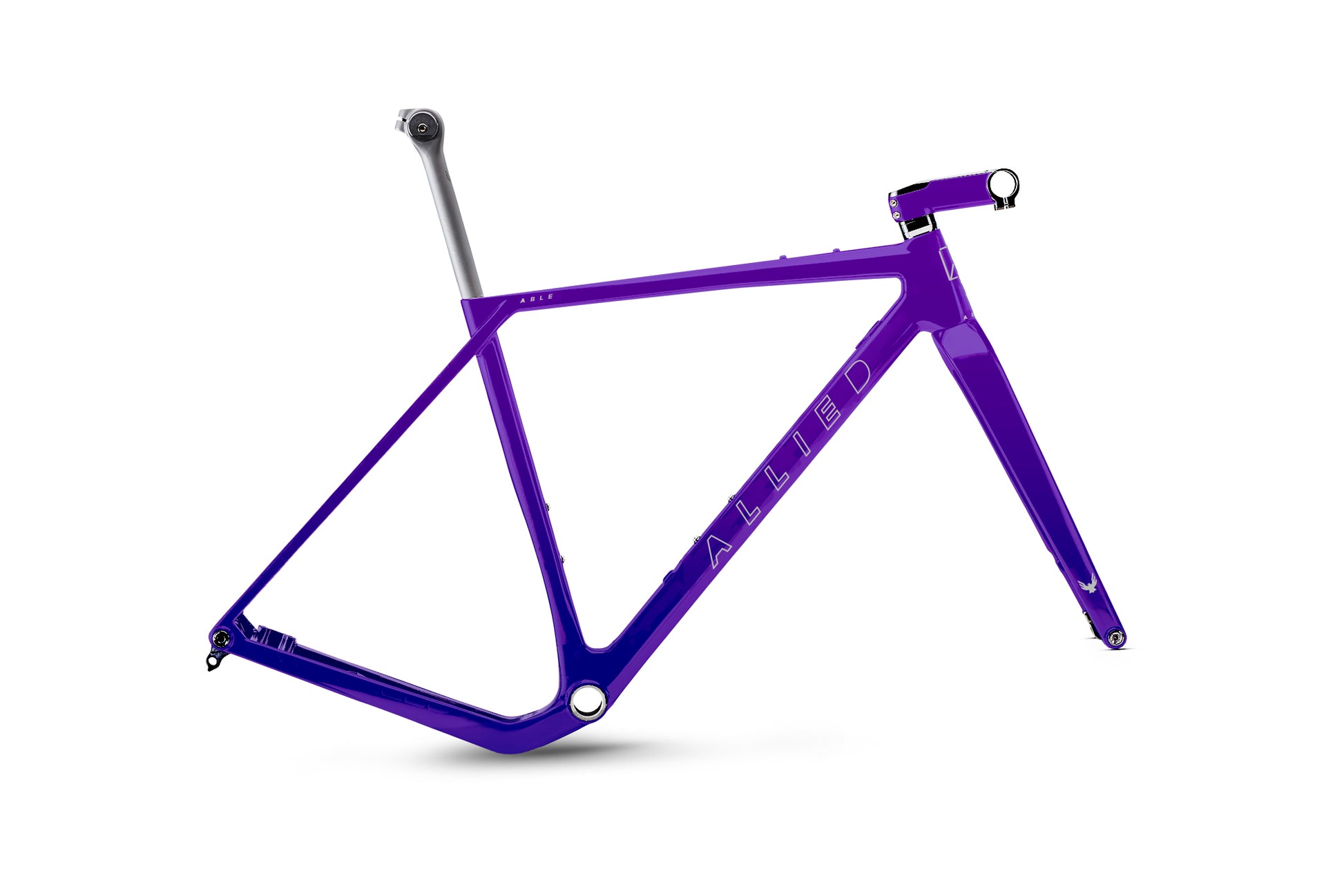

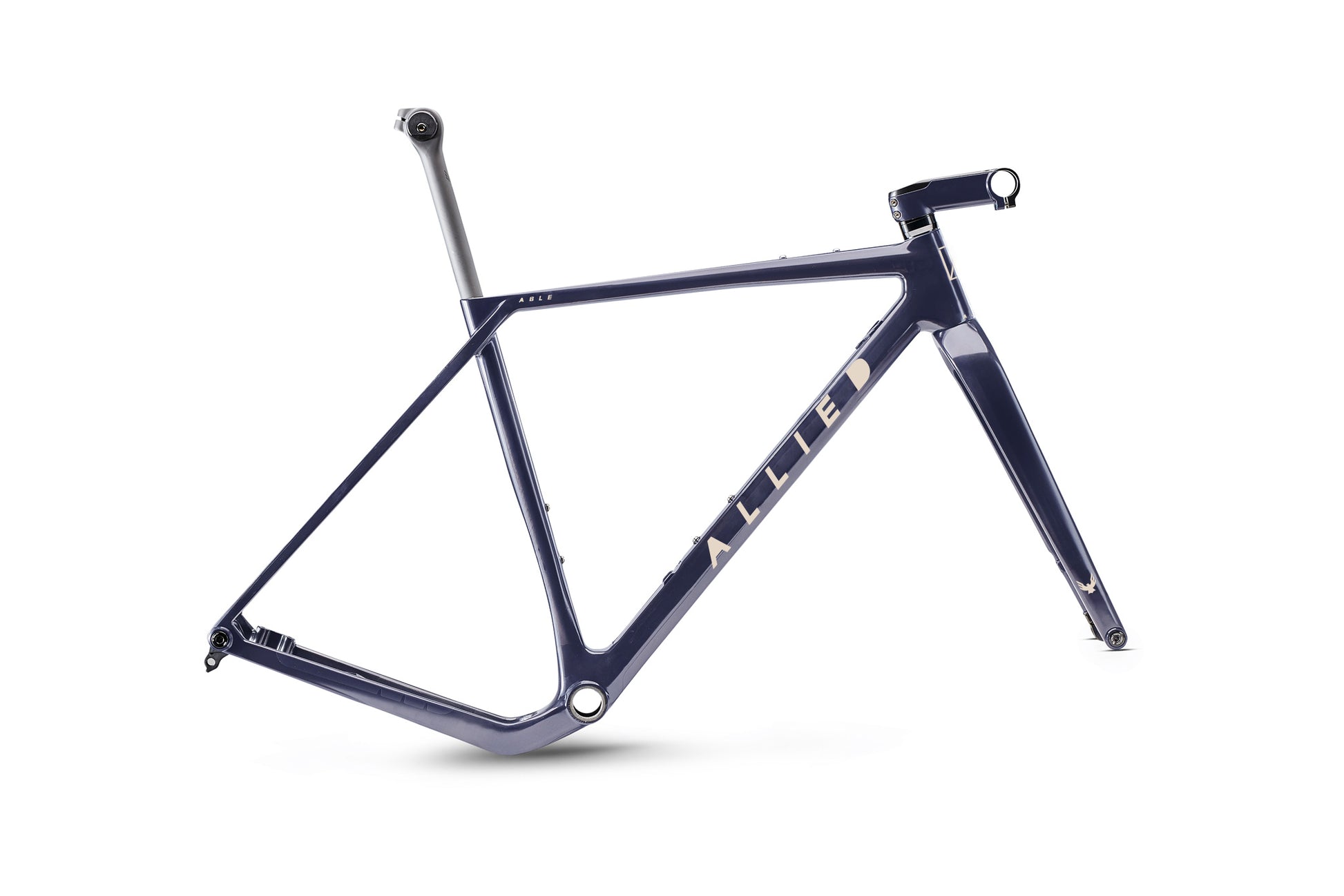

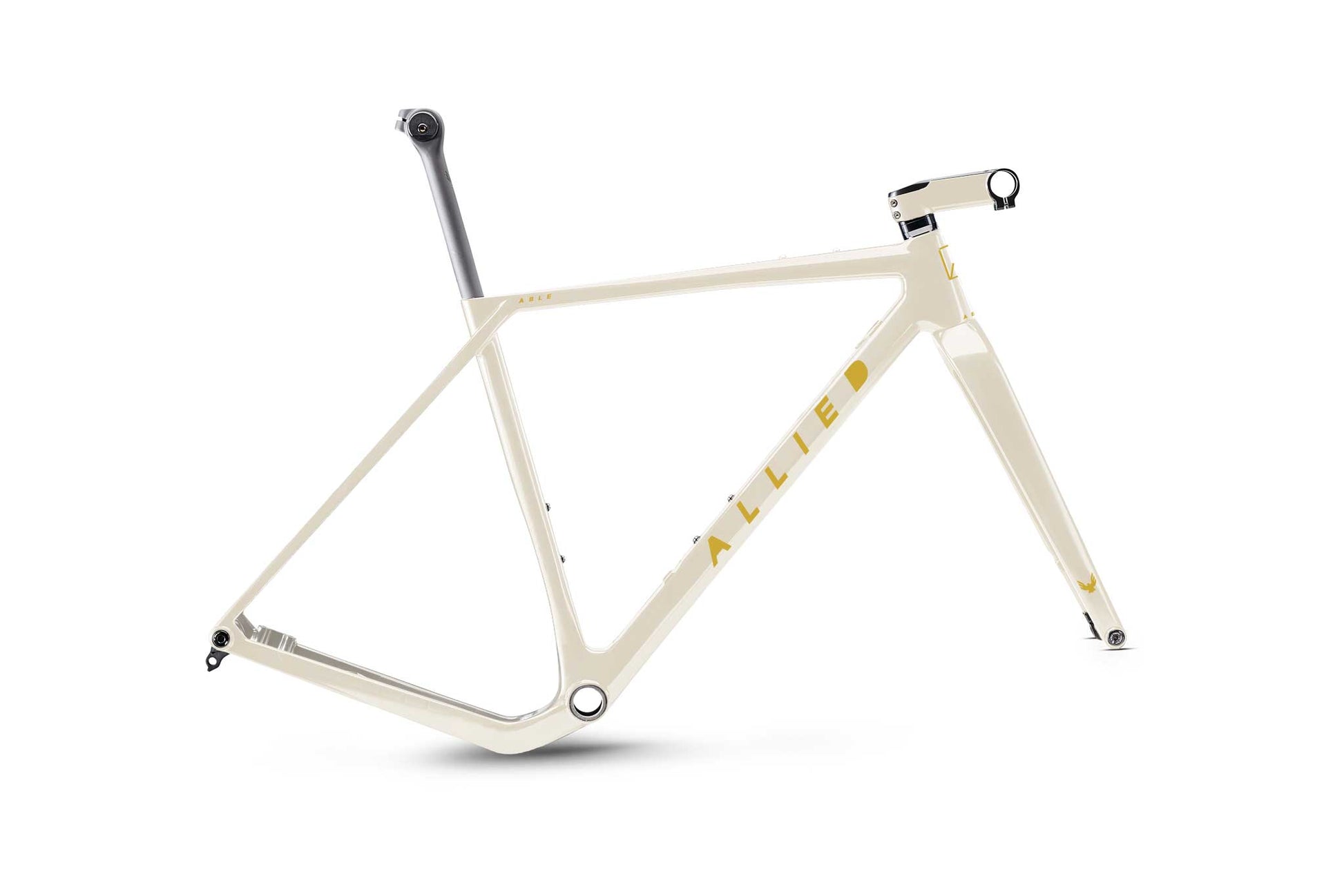

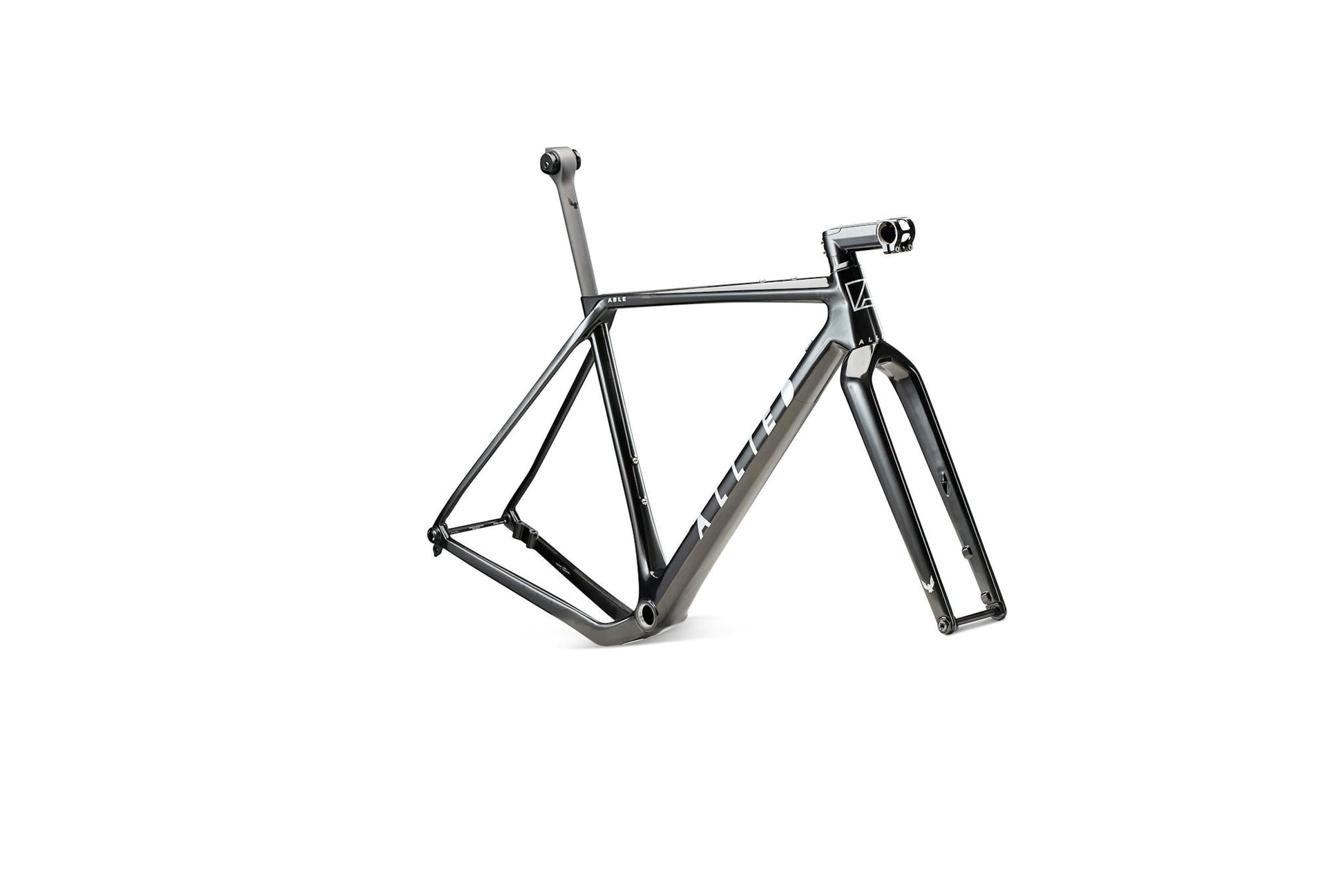

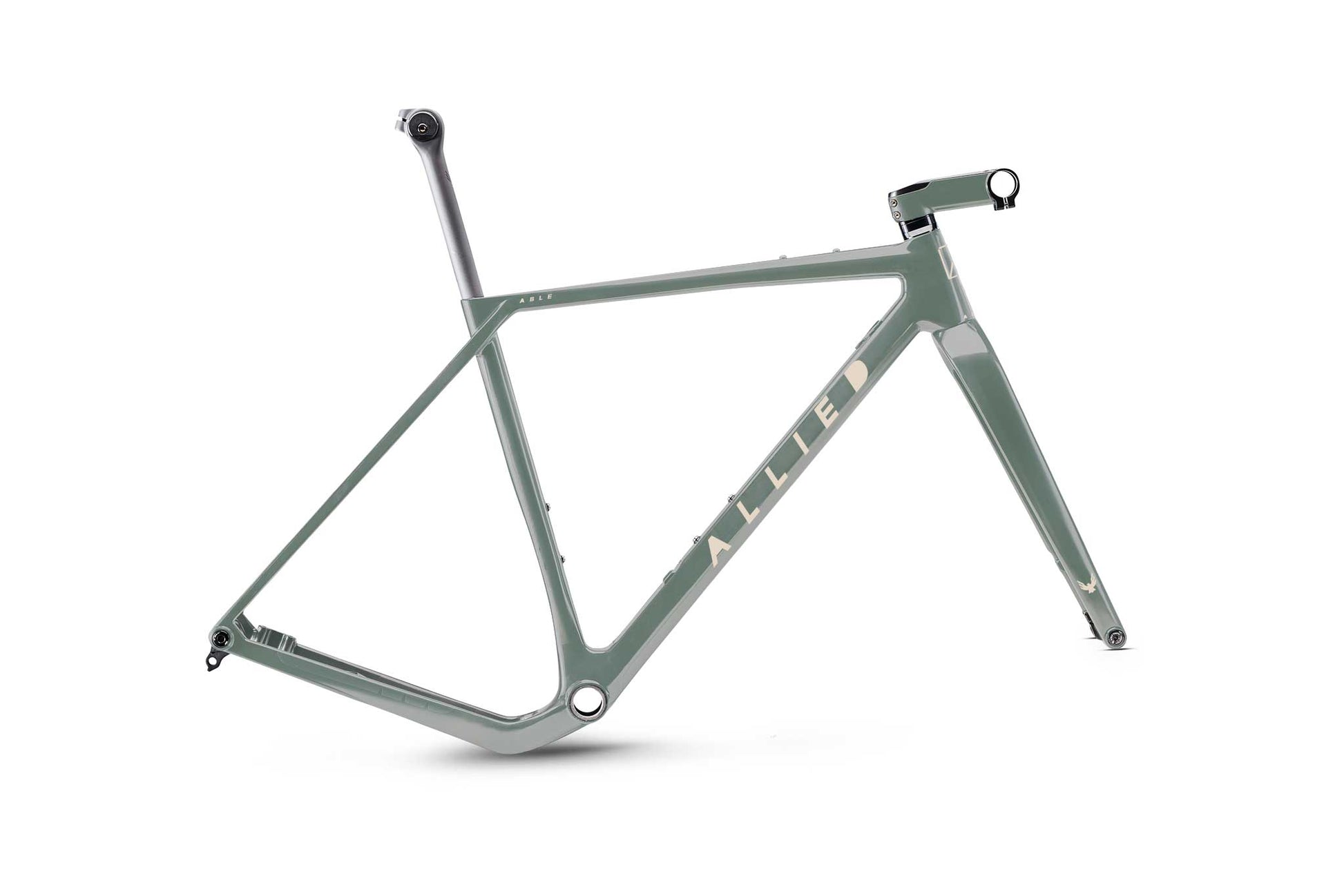

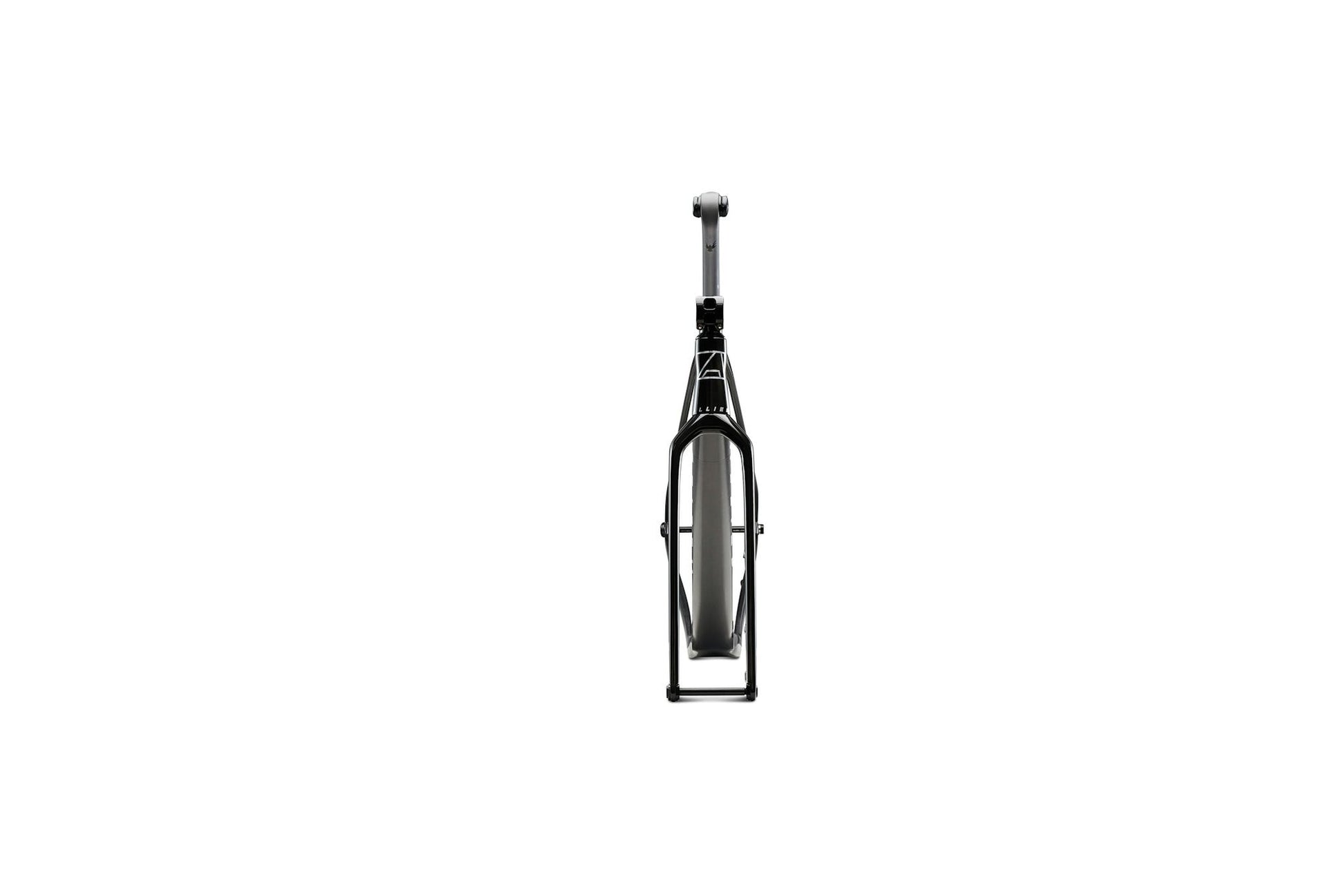

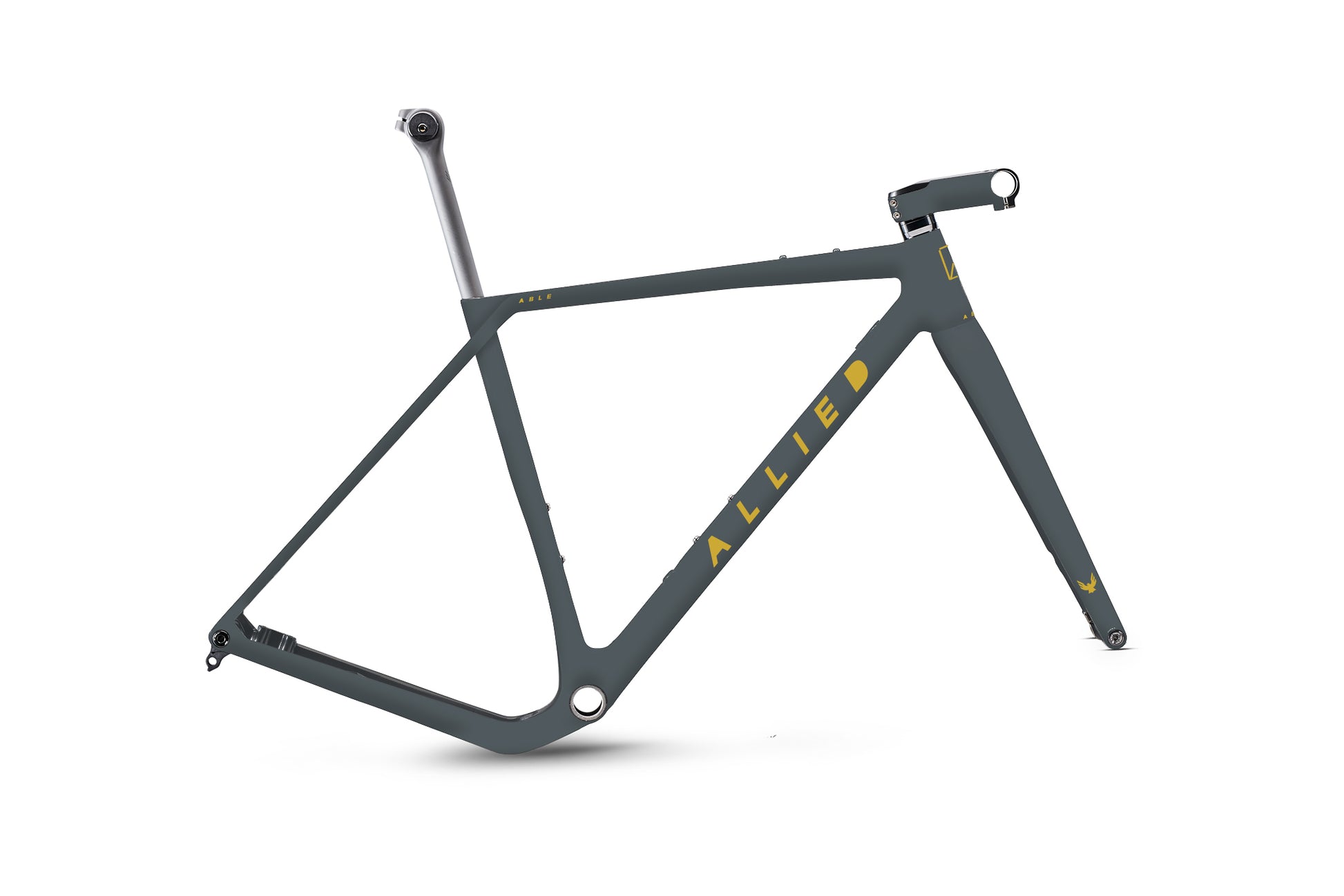

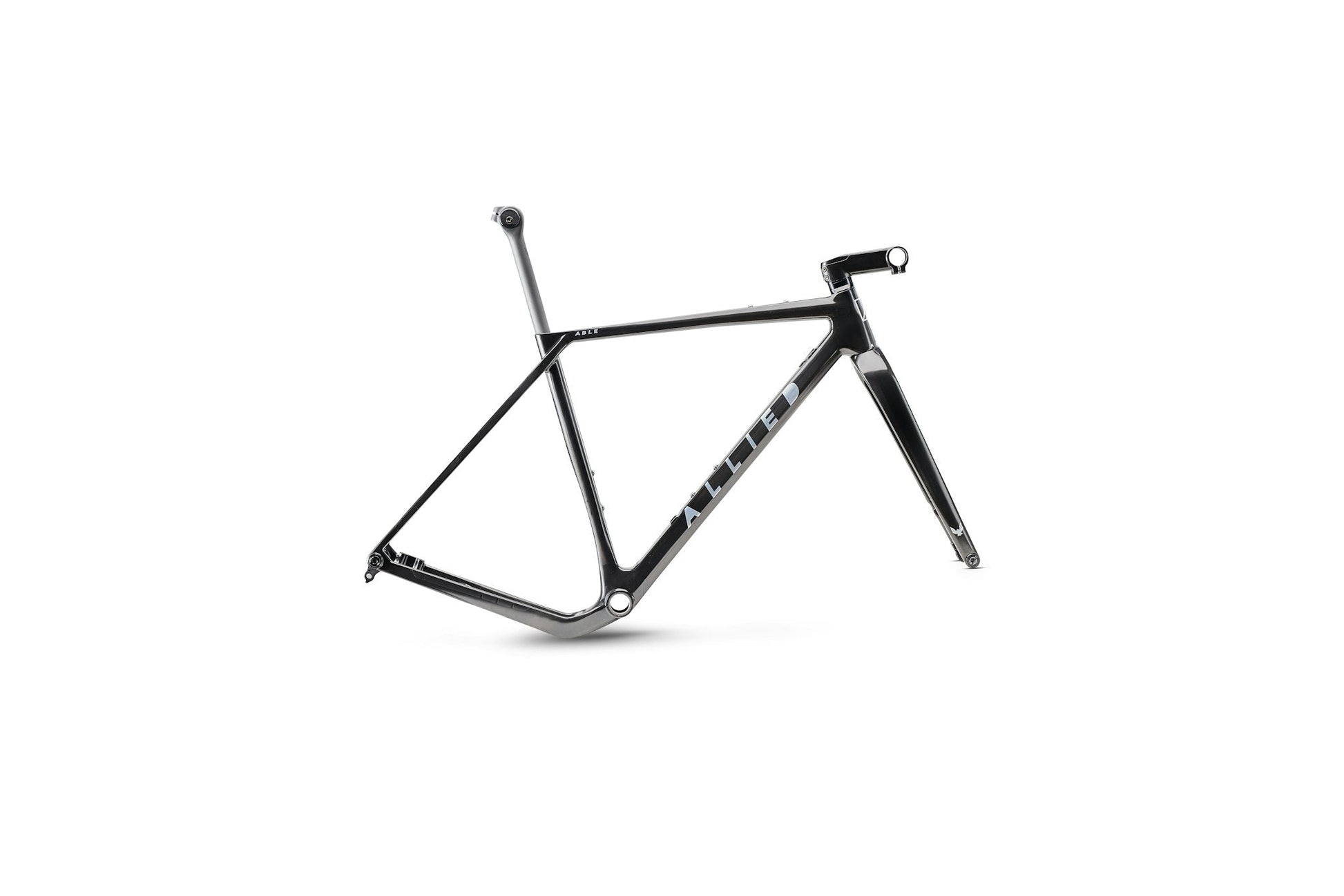

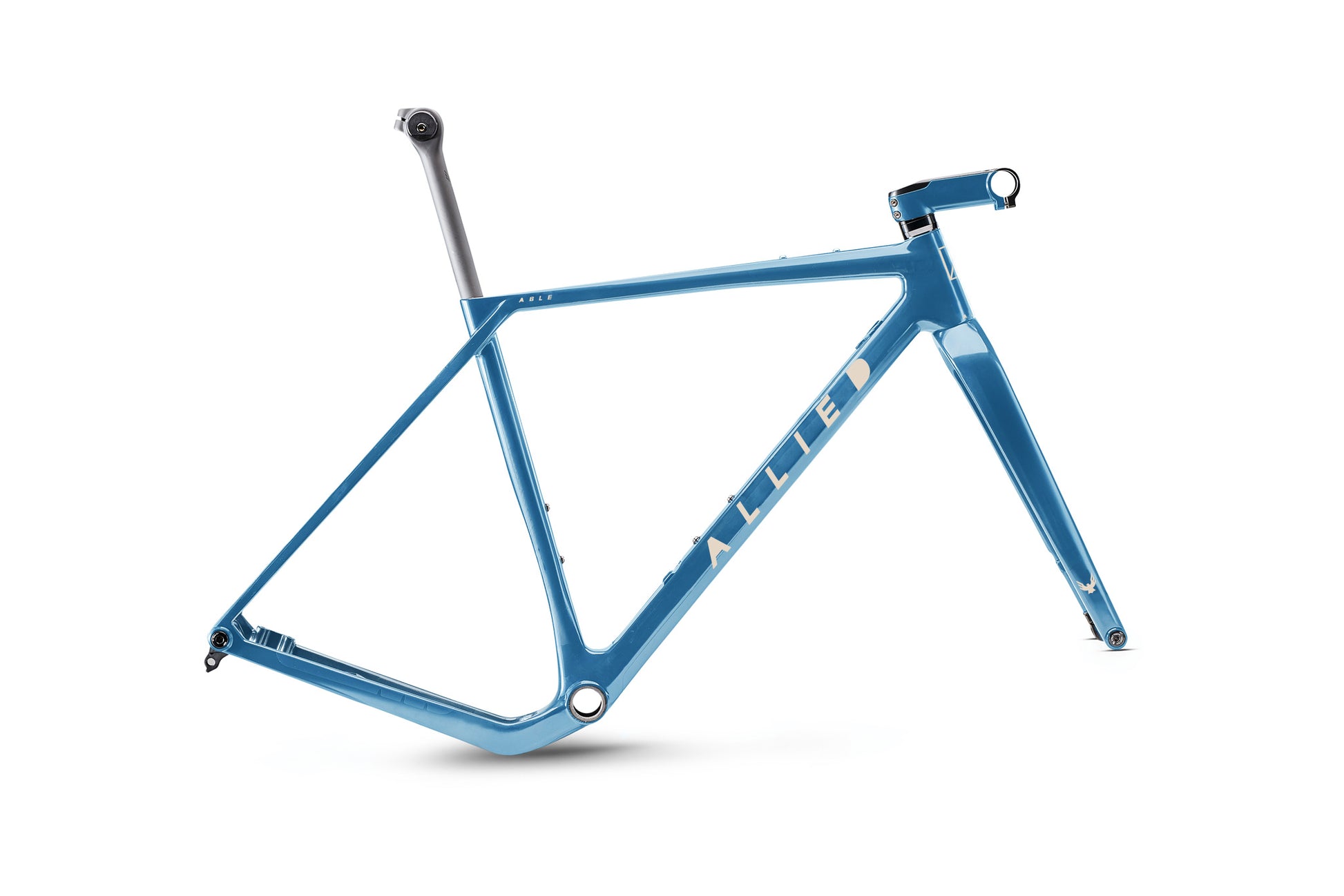

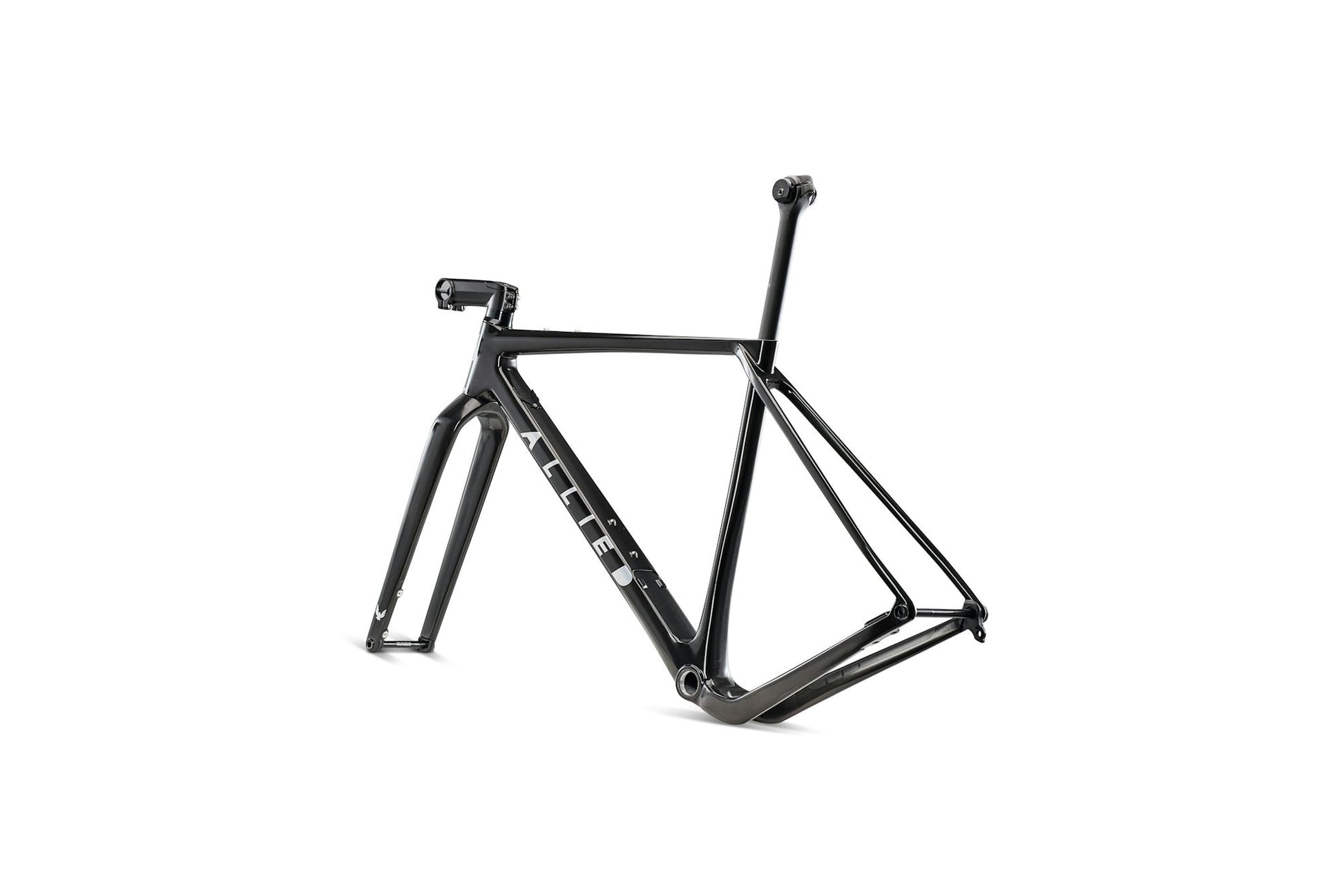

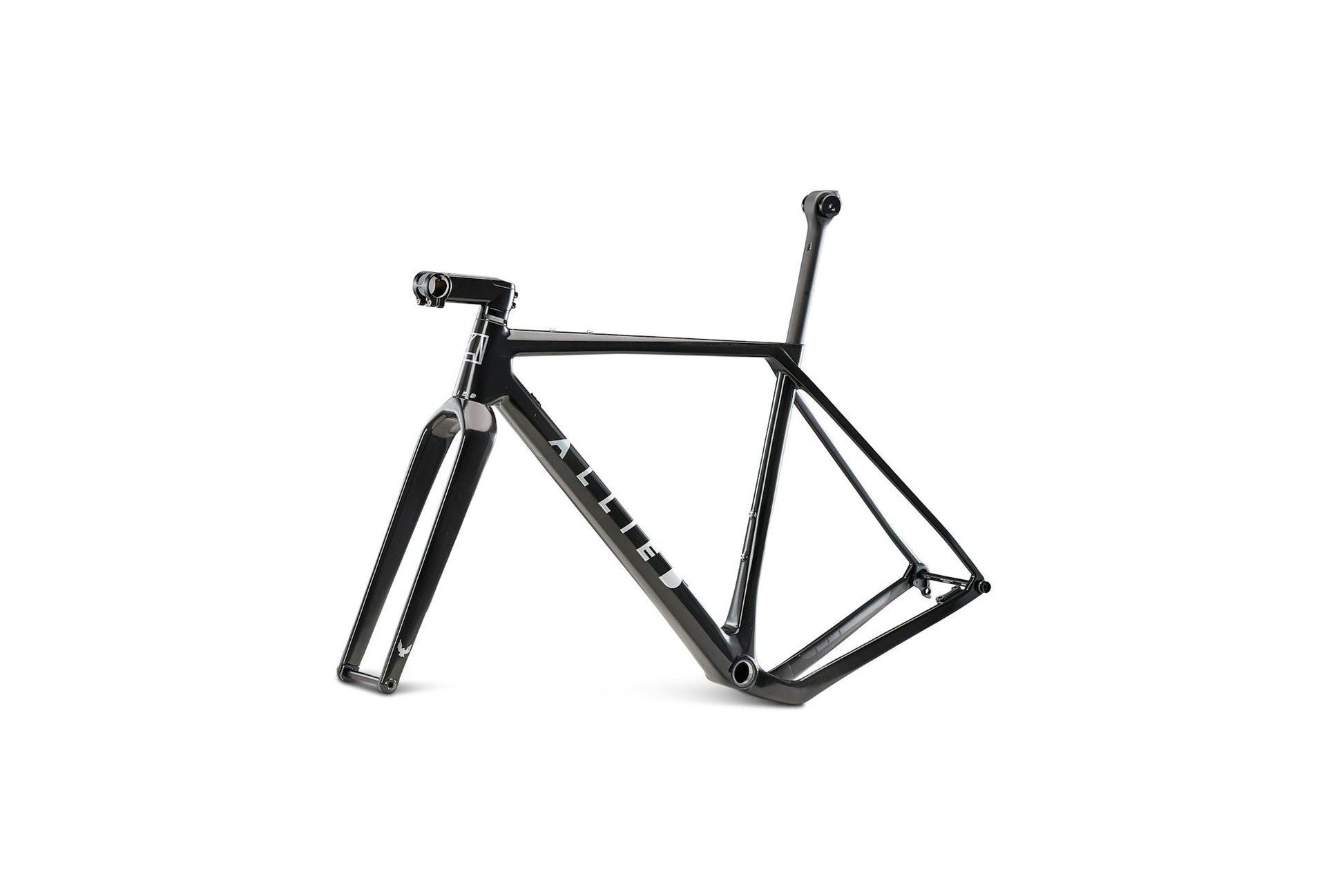

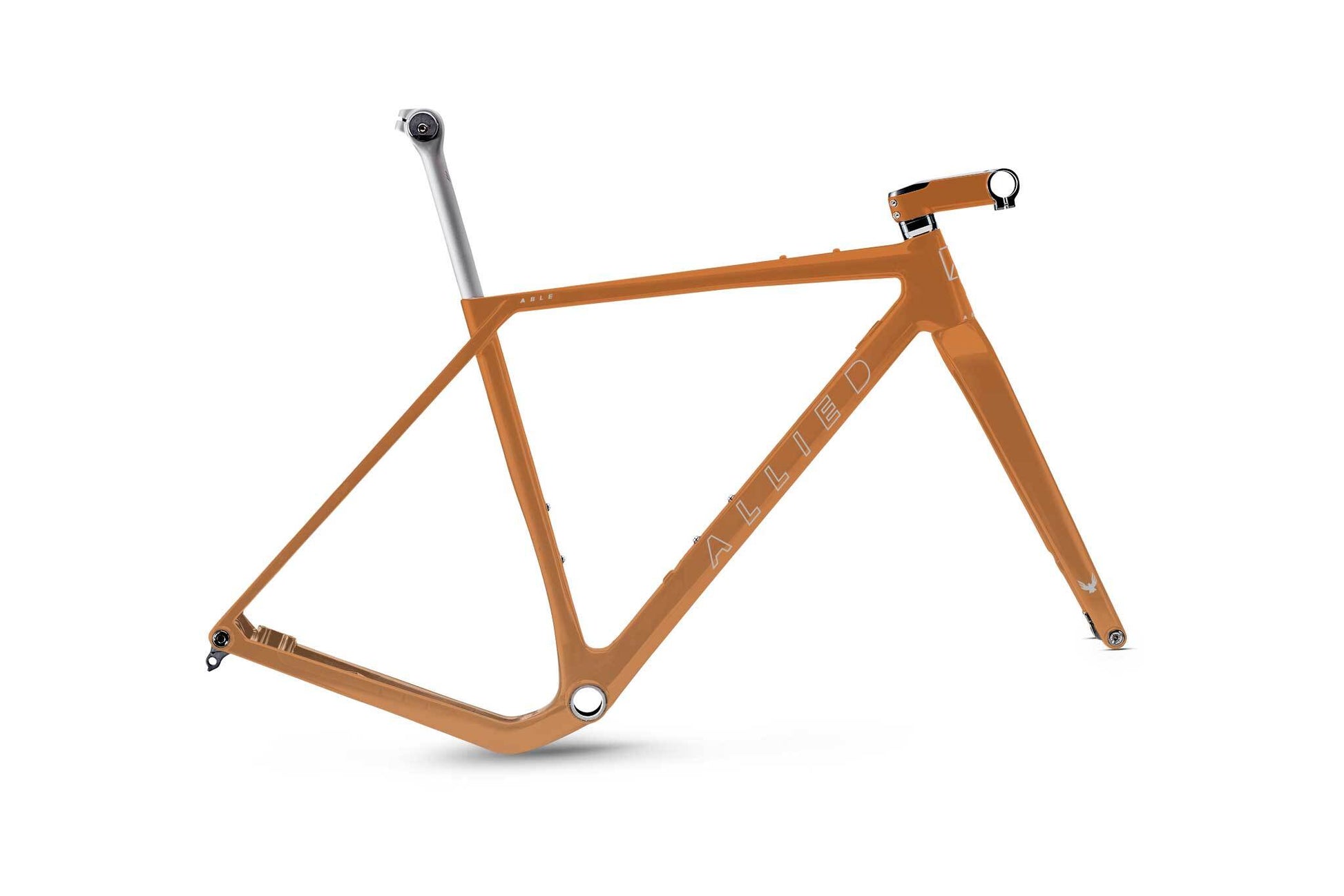

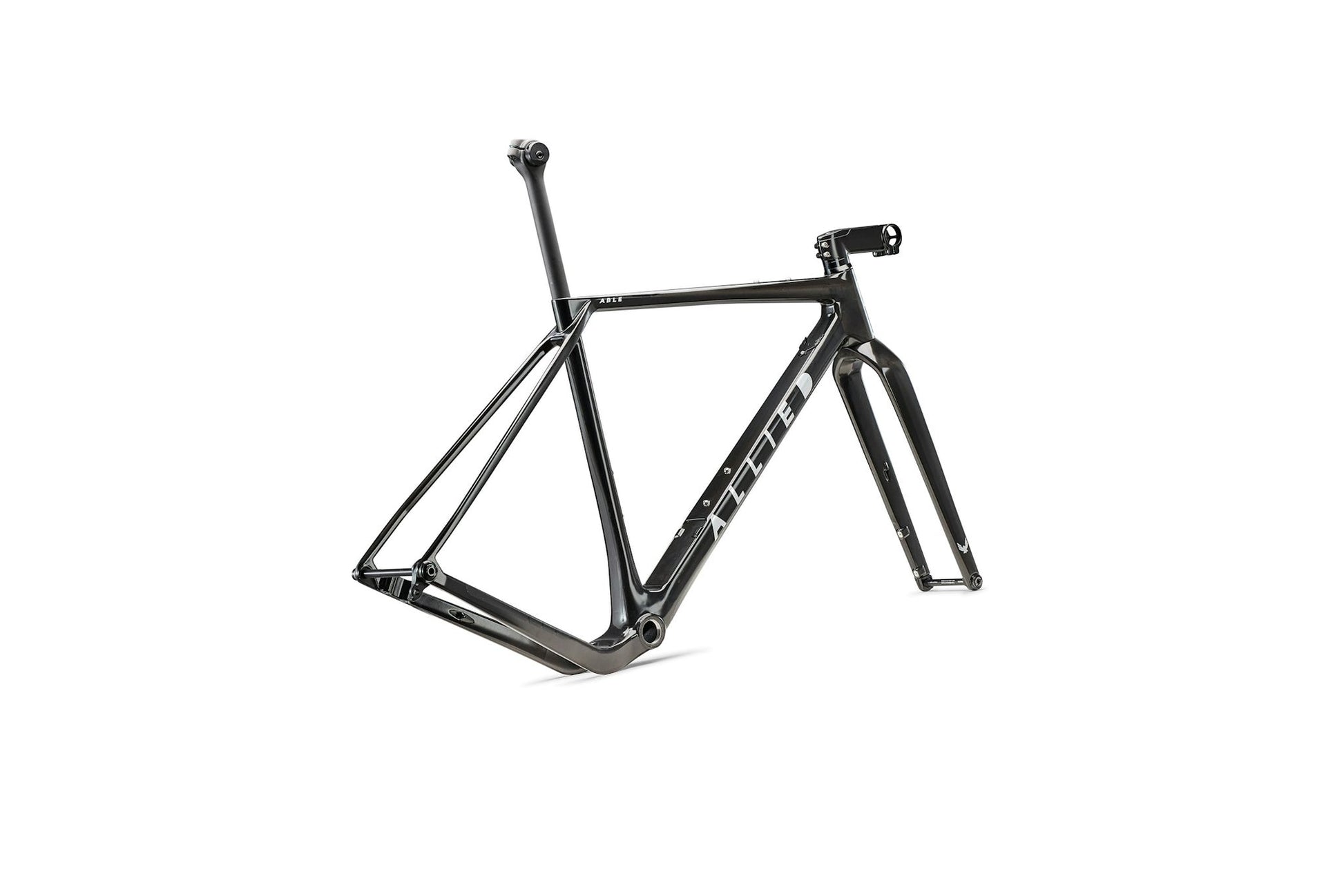

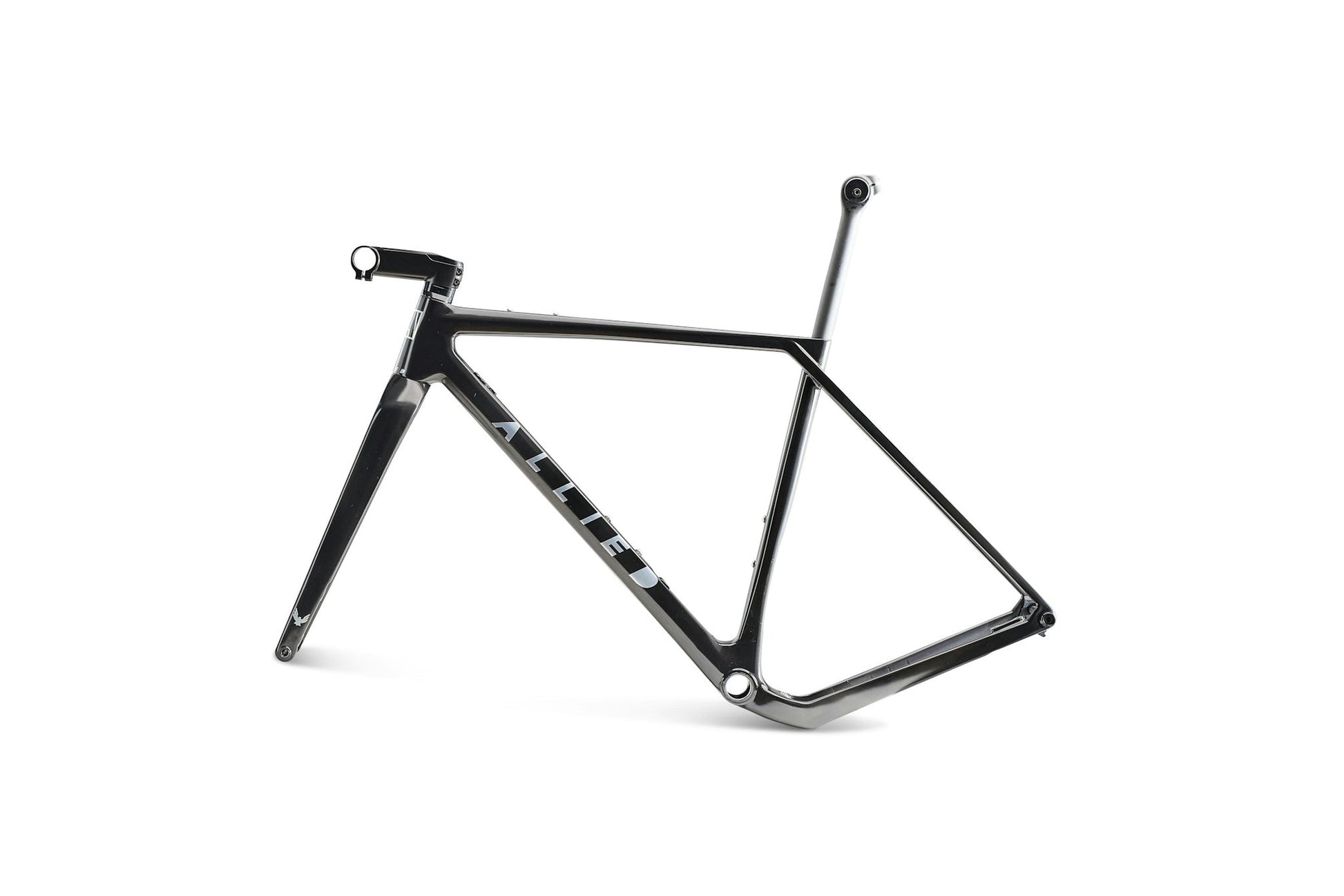

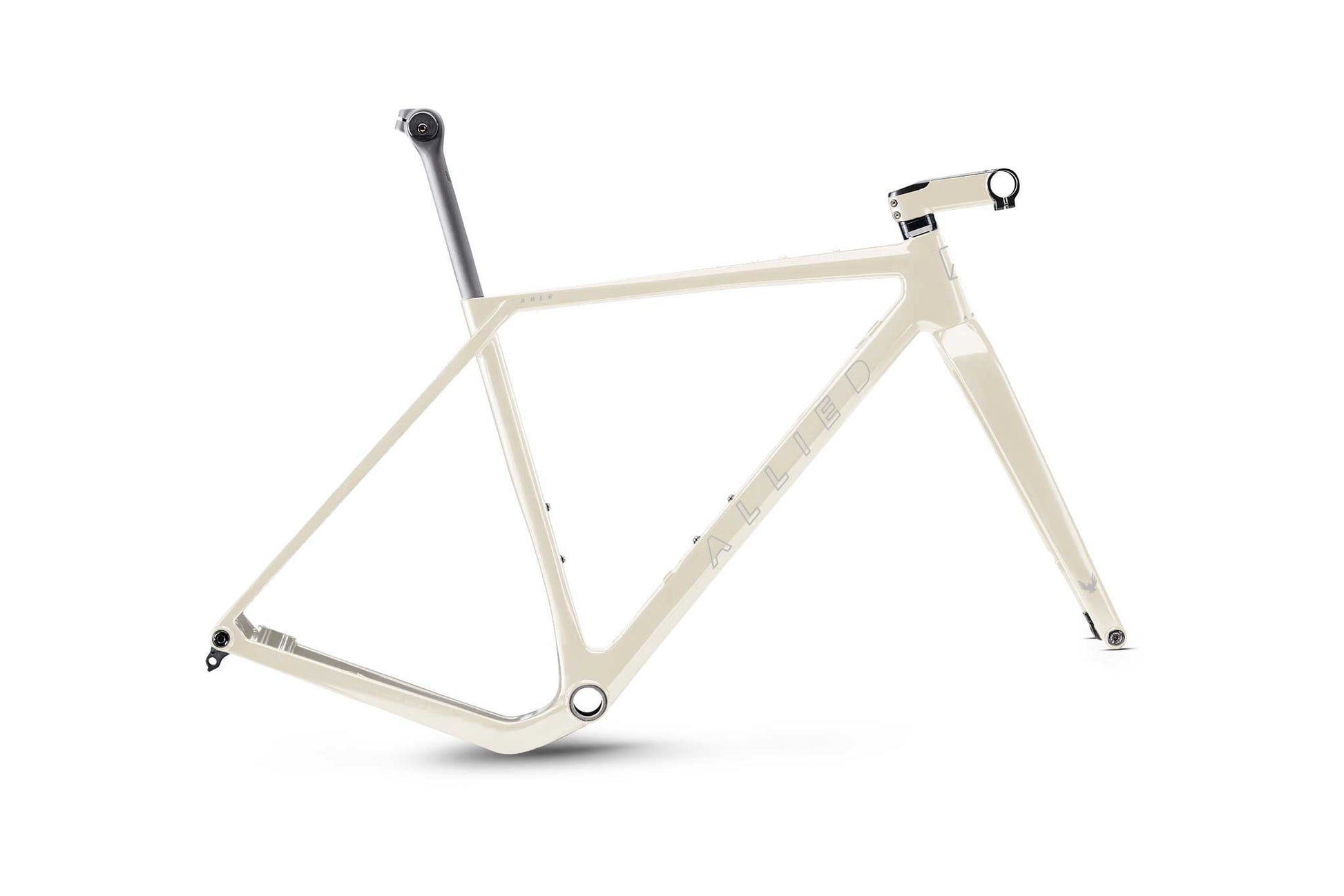

Carbon frame
Carbon seatpost
ST03 internally-routed stem

RACE FAST. GO WIDE.

ABLE is the premier gravel race-bike of choice for two essential reasons: speed and stability. Its racing-focused geometry and sleek tube shapes enable its swift, road-bike responsiveness, while lowered chainstays and clearance for gargantuan 700x57mm tires give it near MTB-level performance capability to meet the demands of modern gravel events. Speed is nothing without control, and ABLE is a master of both.

Built to Suit

You can’t start your gravel build with a better canvas than ABLE. Optimized for up to 700x57mm tires, boasting a threaded bottom bracket, internal cable routing, and UDH, suspension fork, and dropper post compatibility—it’s a gravel racer’s dream machine. And we’re here to help. Just chat in or request a callback, and we’ll get going on selecting components for your custom ABLE build.

Custom Paint is Our Thing

You may have heard, but our studio is known for making masterpieces. Have a little idea floating in your head for custom paint on your ABLE? Select custom color on your frameset to work with our in-house maestros on styling your ABLE with a one-of-a-kind look.

Geometry

Unflinching confidence and performance in every gravel condition is what ABLE is all about. With race-focused rider positioning, nimble handling, and stable tracking, ABLE feels like a rocket when it’s time to hit the gas and planted when the tracks get rough.

All units are in Millimeters or Degrees

	48	52	54	56	58	61
a Stack	535	540	555	575	595	615
b Reach	375	390	395	400	410	415
c Effective top tube	518	534	554	564	580	591
d Seat tube length	440	460	500	530	550	570
e Head tube length	92	97	113	135	156	177
f Head tube angle	69°	70.5°	70.5°	70.5°	70.5°	70.5°
g Seat tube angle	75°	75°	74°	74°	74°	74°
h Bottom bracket drop	80	80	80	80	80	80
i Chainstay length	435	435	435	435	435	435
j Fork length	410	410	410	410	410	410
k Wheelbase	1036	1039	1049	1061	1078	1090
l Standover height	736	752	787	812	832	852
m Fork rake	55	55	55	55	55	55
n Front center	609	611	622	633	651	663
