Inspired by the World Cup Race Winning Exie USA, the DV9 features a rowdy-but-not-to-rowdy 66.5° head angle and ultra-playful 425mm chainstays. A low standover improves fit for the inseam challenged rider, while size specific seat tube angles gives riders of all heights an efficient yet enjoyable riding position.
Whether you prefer the cushy and confident ride that 2.6” tires deliver or the blazing speed of weight-conscious 2.25” rubber, we’ve got you covered.

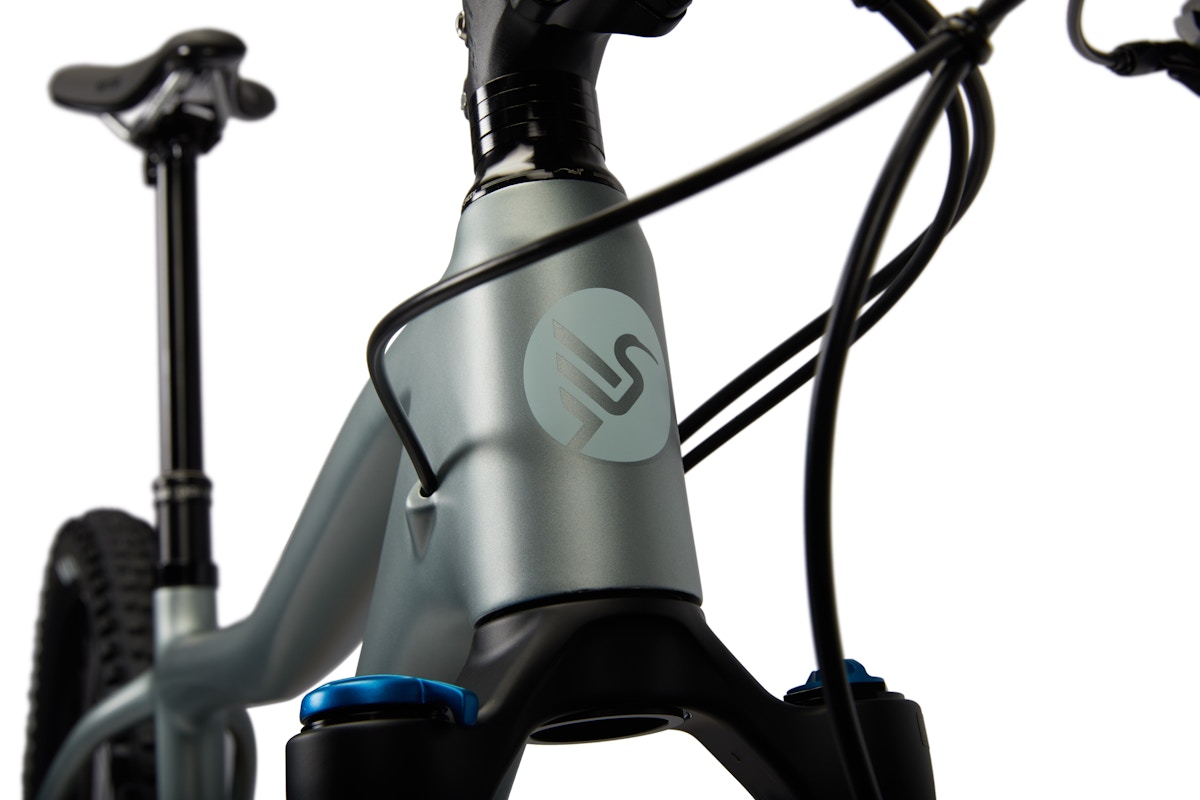

Internal cable routing used to be a pain in the ass but our internal tubes make routing easy. Just pop the housing through and it comes out the other end, no need for swear words or a pickset.

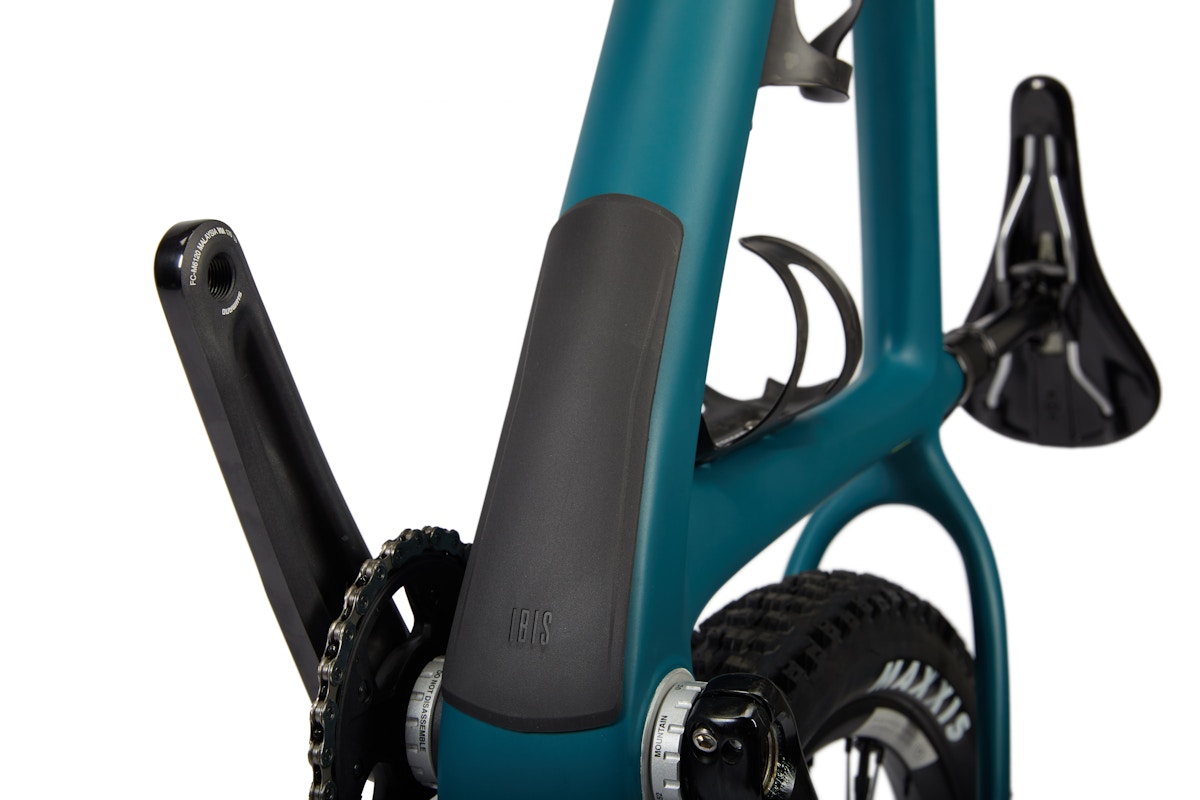

Our thick rubber downtube and chainstay protection help dampen noise and protect the frame. We’ve also included a simple-yet-elegant adjustable top guide that allows you to drop the hammer, not your chain.

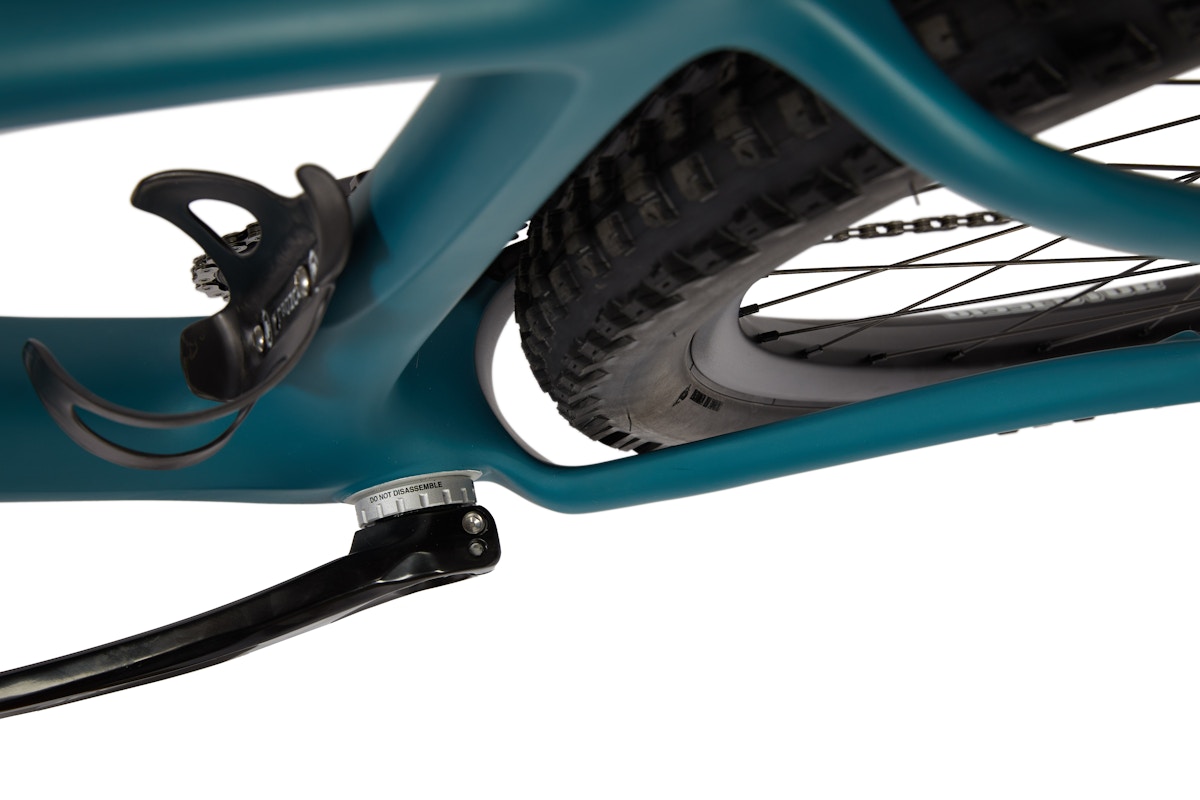

The DV9 has clearance for two water bottles inside the front triangle of every size frame. Even the small.
If it’s our fault, we’ll fix it. Simple as that.
| Model Version | DV9 V2 |
| Frame Material | Carbon Fiber |
| Wheel Size | 29" (up to 2.6" tires) |
| Front Travel | 120mm (compatible with 100mm–140mm) |
| Axle Width | 148mm rear / 110mm front |
| Seatpost Diameter | 31.6mm |
| Rear Brake | 160mm Post mount / 203mm max |
| Chainstay Length | 425mm |
| BB | 73mm English threaded |
| Chainline | 55mm chainline |
| Chainring Clearance | Up to 34T (round) |
| Derailleur Hanger | Universal Derailleur Hanger (UDH) |
| Tapered Headtube | IS 41/28.6 upper, IS 52/40 lower |
| Colors | Muddy Waters, Purple Crush |
| Sizes | S, M, L, XL |
| Frame Warranty |
7 Years |
