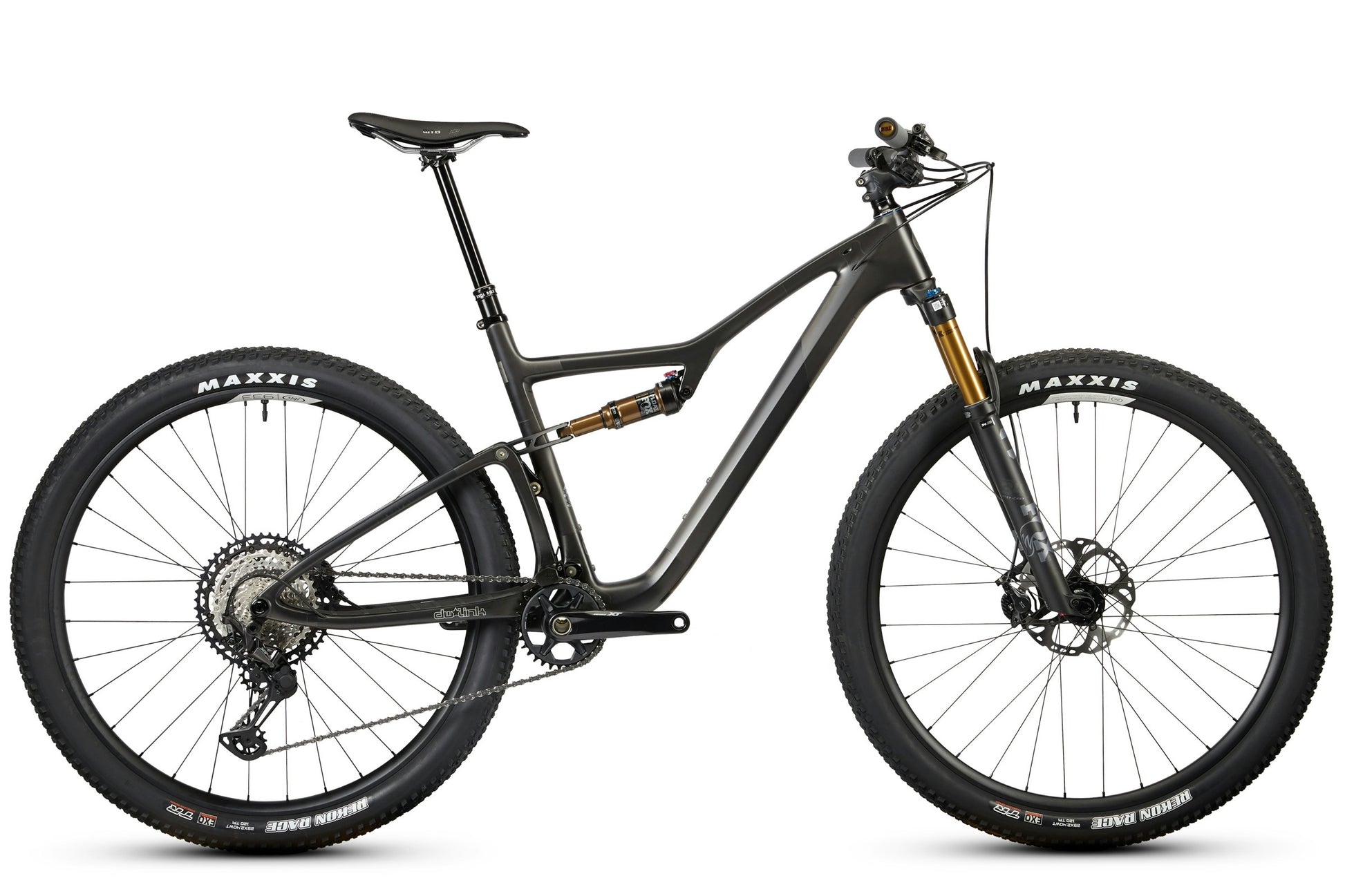

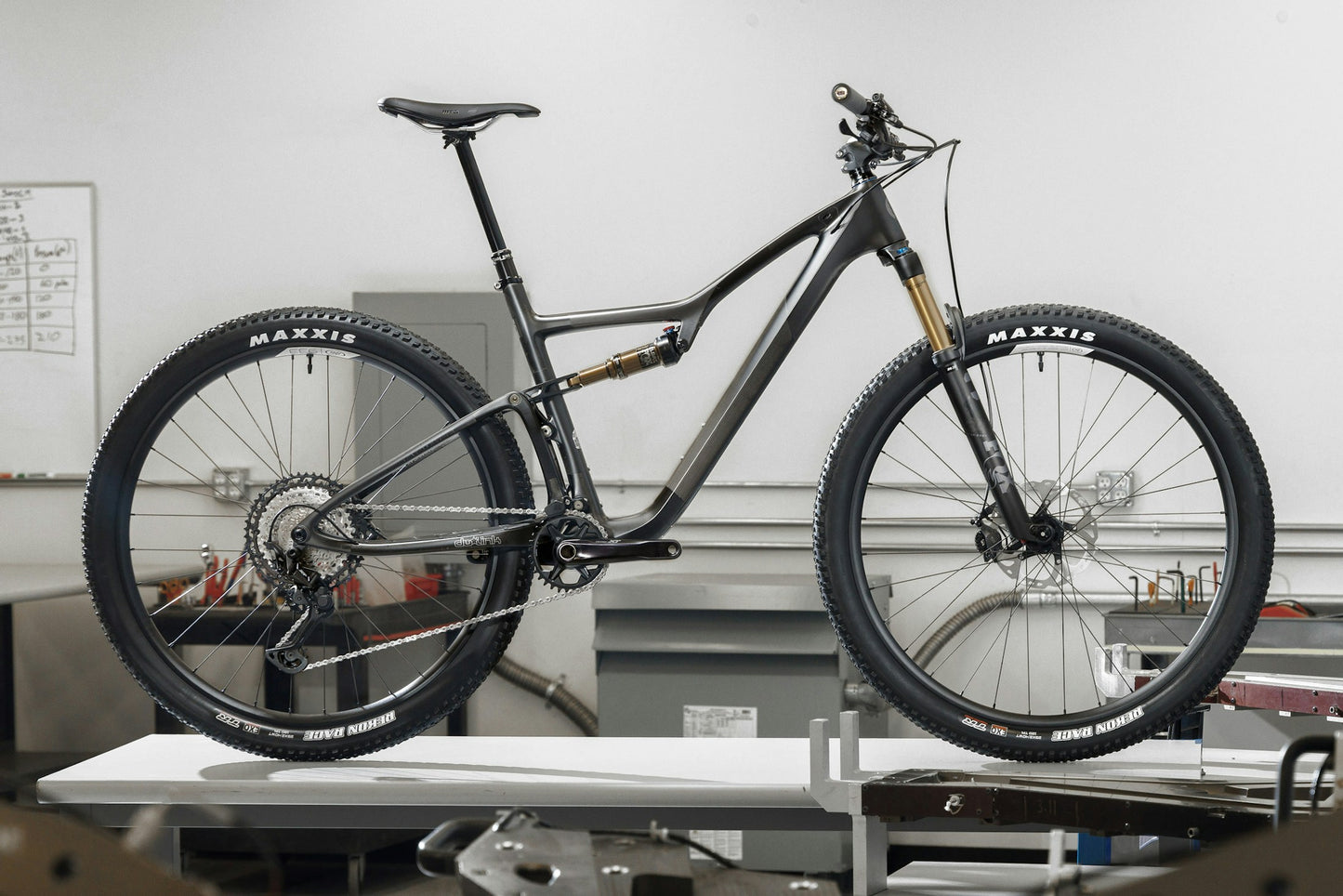

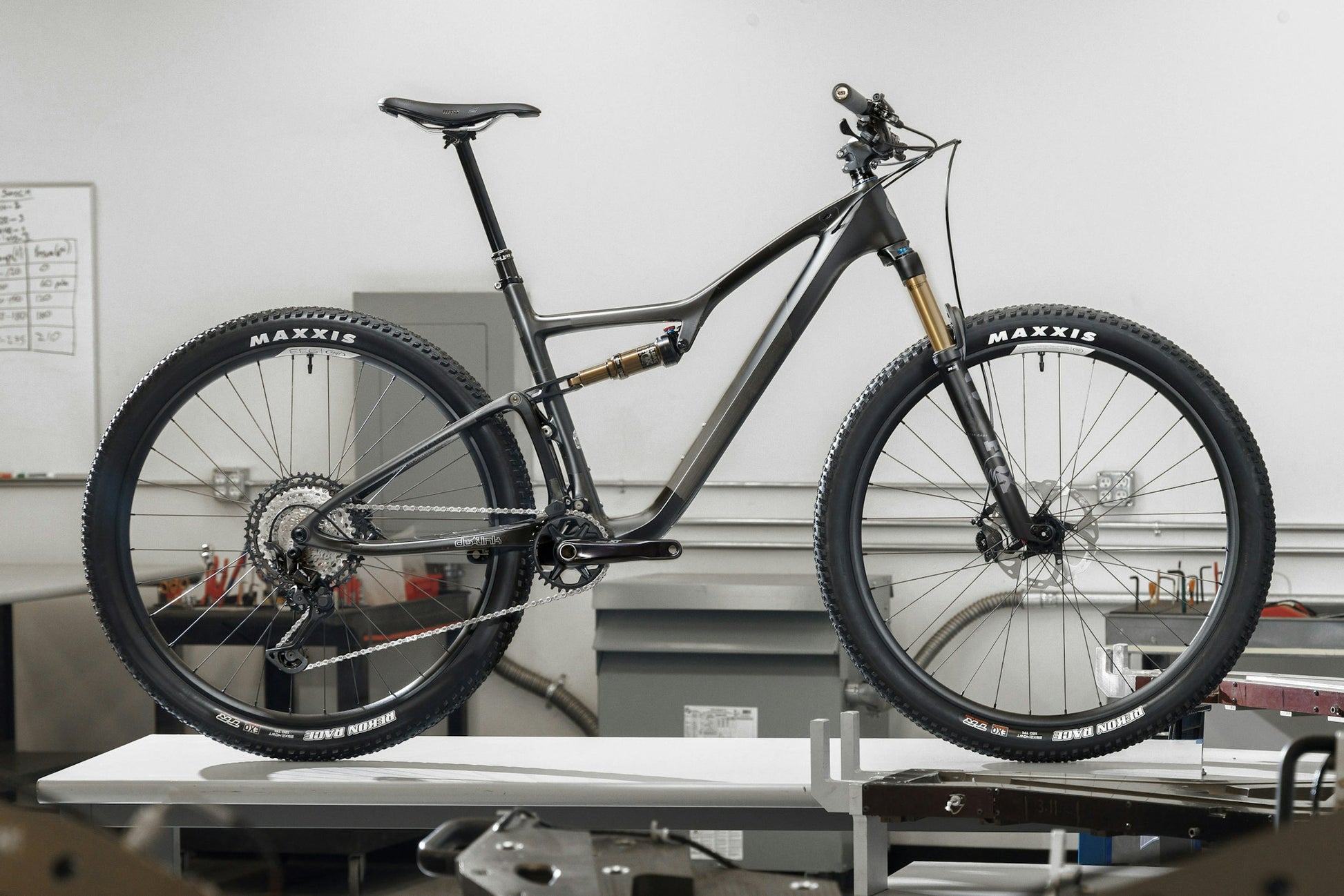

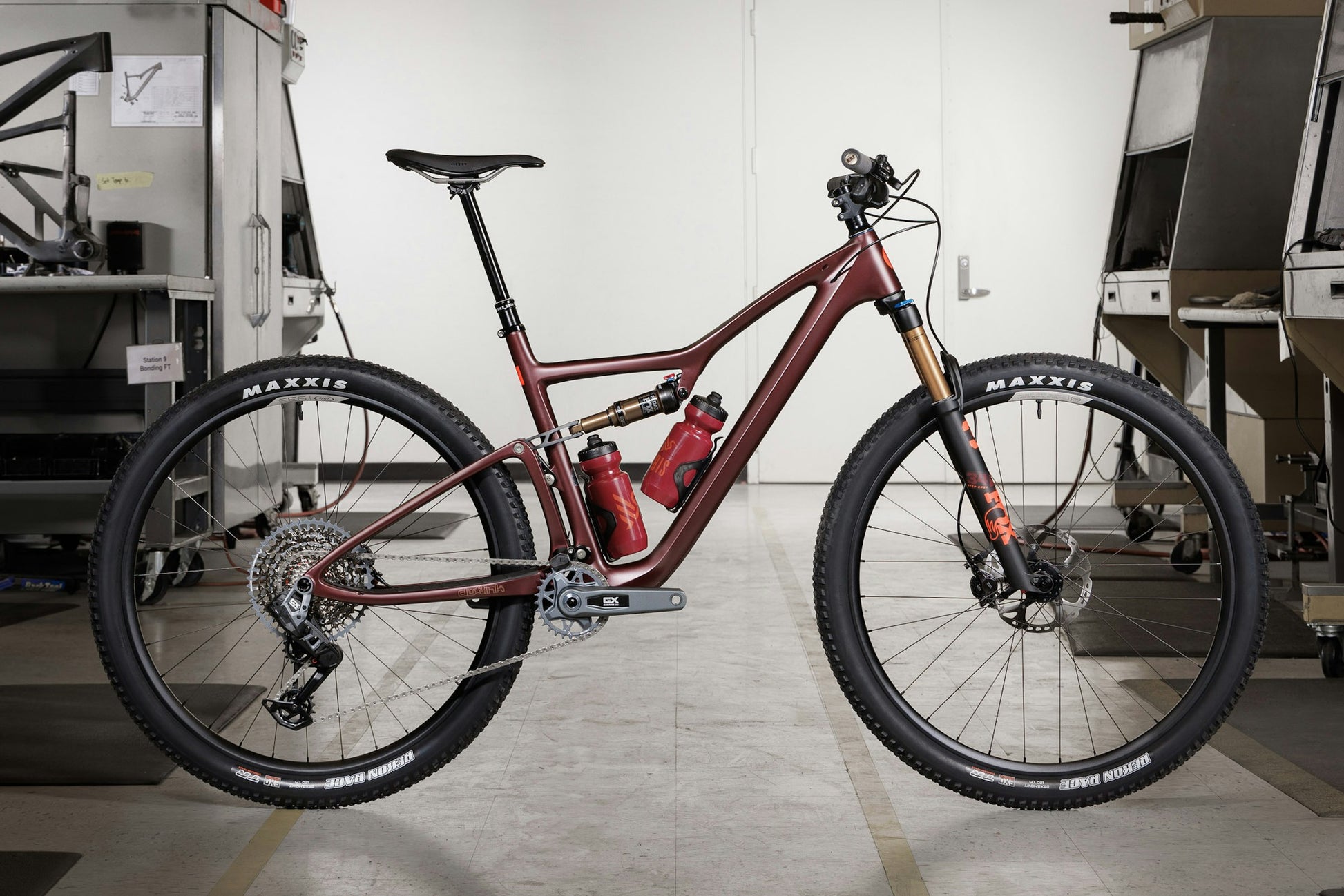

The Exie USA is a World-Cup capable cross-country race bike that flat out shreds. With a sub 2,000g frame weight and dw-link suspension, it offers a stunning combination of pedaling efficiency and downhill performance. We designed, built, and tested it in our Santa Cruz factory, which is powered by the warm California sunshine.

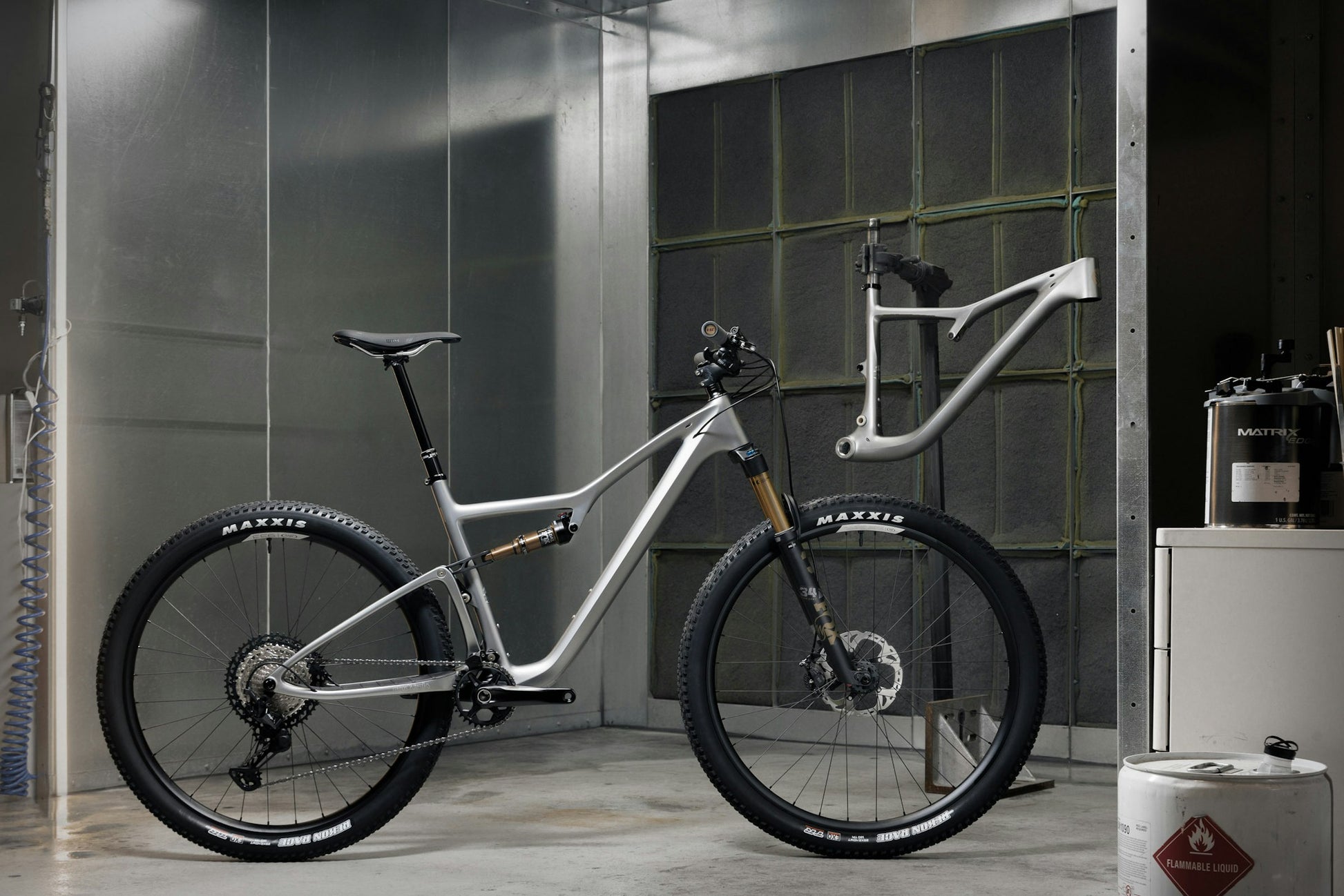

We build each Exie USA in our Northern California factory. This gives us the utmost control, which enable us to hit remarkable frame strength, stiffness, and weight targets for this frame.
Whether you’re racing short track or on a multi day epic, the Exie’s seat tube angles allows you to harness your strongest muscles, while reducing any potential knee or wrist strain. We’ve also steepened the seat tube angles as the frames get larger, to allow riders with different inseams to achieve the same riding positions.
Don’t squander a single watt. Our dw-link suspension platform offers incredible climbing efficiency and traction along with plush, downhill-crushing goodness.
We use bushings where it makes sense and bearings where it doesn’t. The IGUS bushings in our lower link are lighter, stiffer, and virtually maintenance free. We’ve also added features like a threaded bottom bracket to help make any future maintenance easy.
Internal cable routing doesn’t have to be a pain. We’ve added internal tubes to our tubes, no picksets, flashlights, or swear words required.
You can run overbuilt, chunky tires; you can run light, big volume fast tires, but whatever you run, you’re not limited by width.
The Exie USA has clearance for two water bottles inside the front triangle on every size frame.
Drop the hammer, not your chain.
If it’s our fault, we’ll fix it. Simple as that.
| Version | V1 |

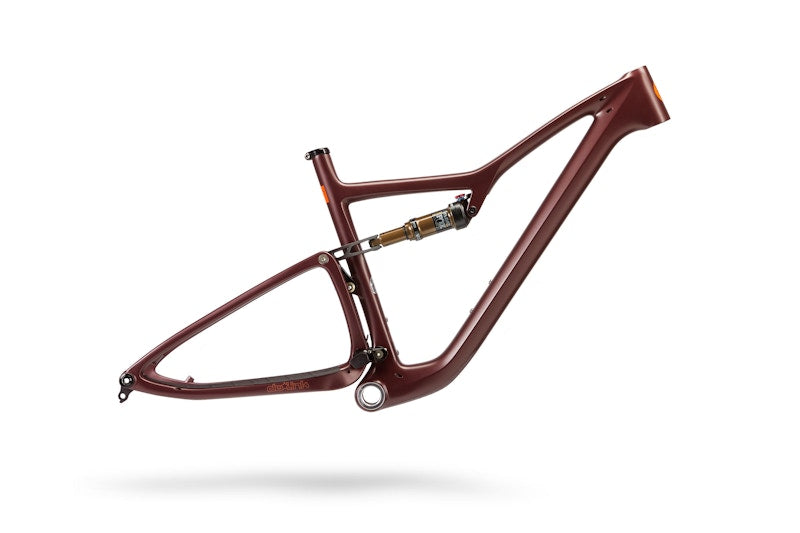

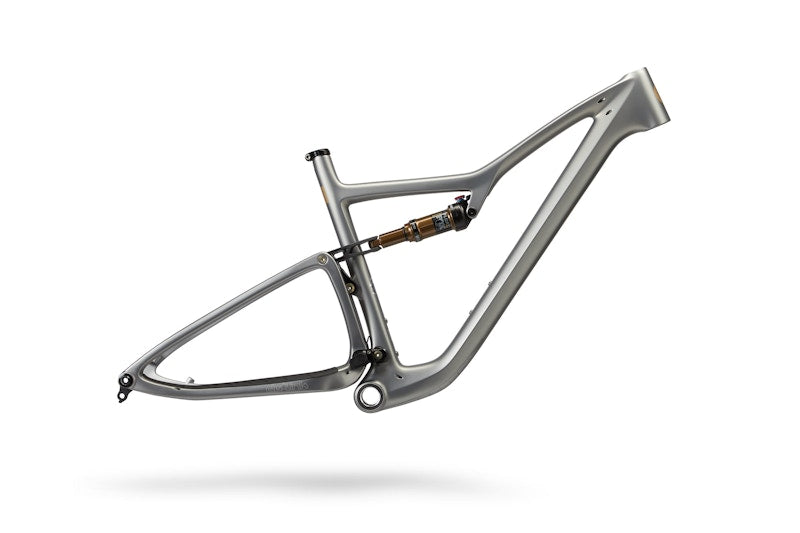

| Frame Material | Carbon Fiber |
| Frame Weight | 2026g, 4.47lbs (size medium, w/ shock) |
| Wheel Size | 29” / up to 2.4" tires |
| Front Travel | 120mm forks |
| Rear Travel | 100mm (4 inches) |
| Boost Axles | 148mm rear / 110mm front |
| Seatpost Diameter | 31.6mm |
| Rear Brake | 160mm post mount / 180mm max |
| Derailleur Hanger | Universal Derailleur Hanger (UDH) SRAM part number AC-DRHG-MTB-A1 |
| Bottom Bracket | Threaded (73mm English threaded) |
| Chainline | 52mm chainline, 168mm Q Factor |
| ISCG 05 Compatible | Integrated Upper Chain Guide |
| Headset | IS 41/28.6 upper, IS 52/40 lower |

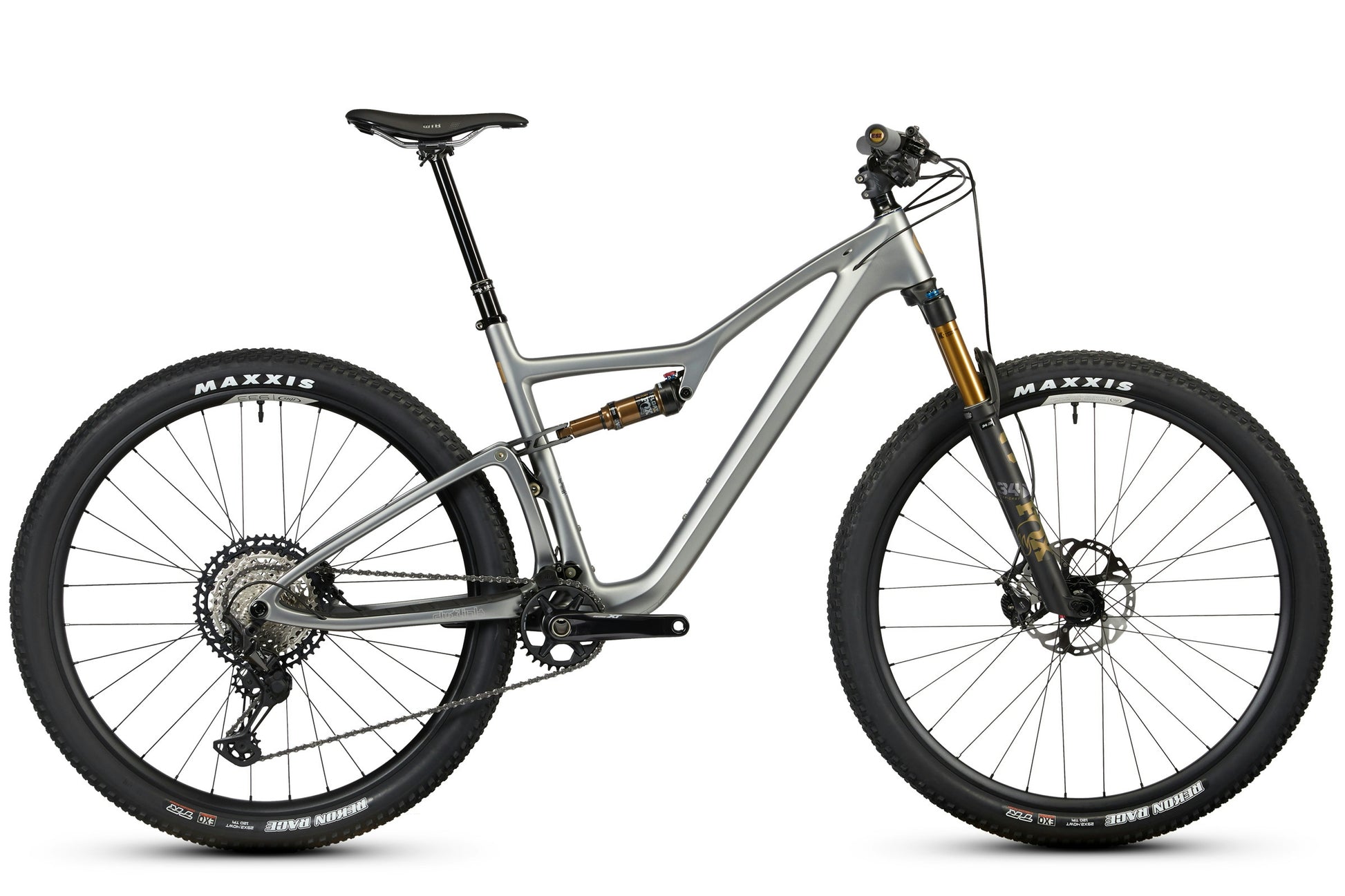

| Colors | Cyan Sky, Sage Green or Tangerine Burst |
| Sizes | S / M / L / XL |
| Frame Warranty | 7 years |
