Ibis Hakka MX
Ibis Hakka MX
HAKKA MX
The Hakka MX is our answer to the Swiss Army Knife.
With its ultra versatile geometry and 1000g frame weight, the Hakka MX is just as happy crushing the local club ride as it is jumping barriers or camping out.
It’s good to have options. With the Hakka MX, you can run road, cross and gravel friendly 700c wheels, or if you are into burlier backcountry exploration, go with 27.5/650b. With the Hakka MX, you don’t have to pick one tire option or the other. Our subtle sculpted chainstays give the frame clearance for up to 700 x 40c or 27.5 x 2.1” tires.
No matter what drivetrain you prefer, 1x, electronic, or 2x, the Hakka MX has you covered. The frame has internal cable routing provisions for every drivetrain on the market, plus a dropper post. We’ve even included a slick Di2 battery mount inside the downtube.
We’ve tried every bottom bracket under the sun and in the end, we haven’t found anything that’s more reliable than a threaded BB. Our Hakka features the T47 BB standard, which uses 30mm bearings enabling you to use the recent crop of lightweight cranksets. This is the best way to combine a threaded BB with 30mm spindle compatibility. It’s lightweight, quiet and durable, because no one likes a creaky bike.

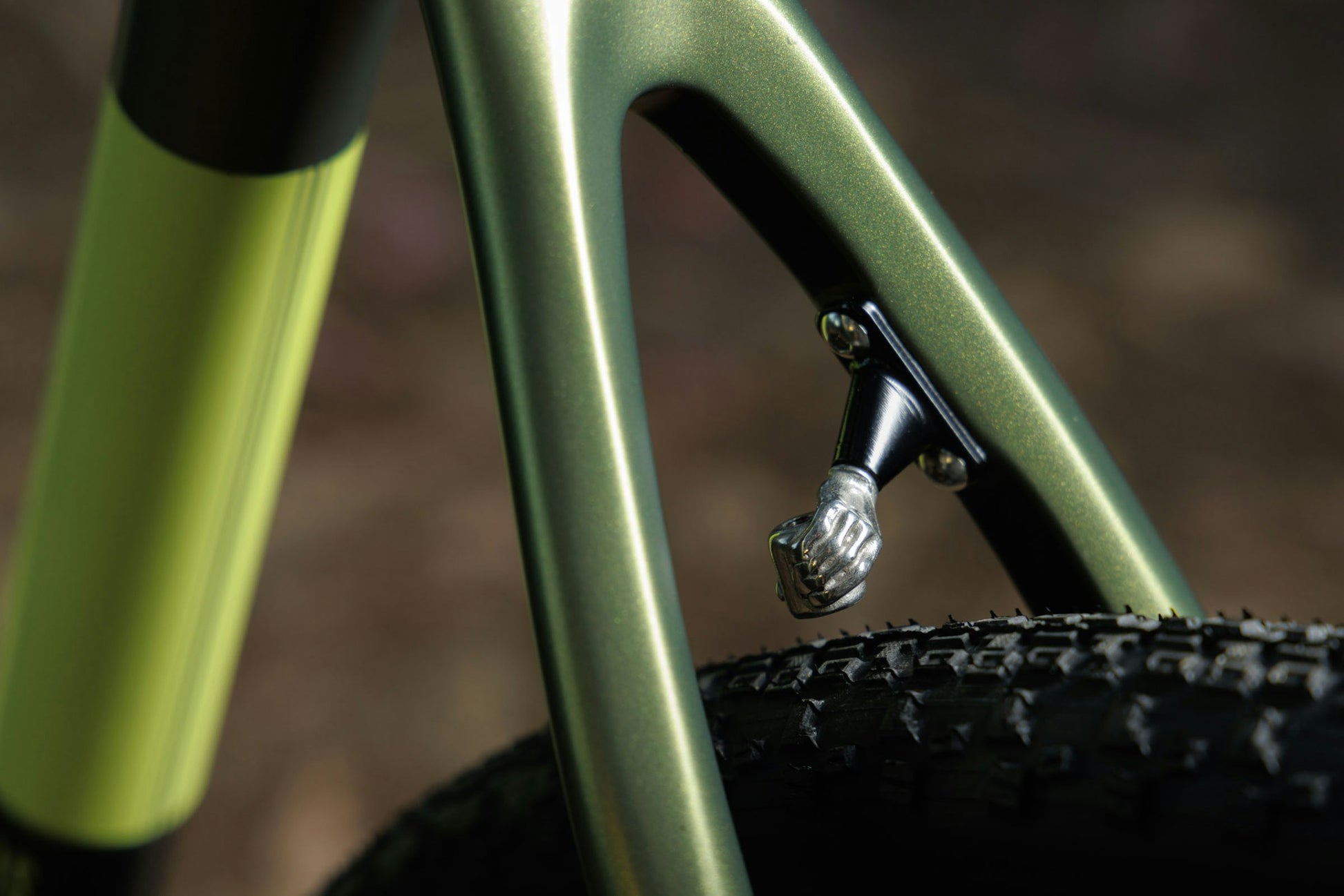

The Hakka MX has flat-mount disc mounts and fits a 160mm rotor. The ENVE G Series Gravel fork has fender eyelets, internal cable routing and monster clearance for 700c x 50c or 27.5″ x 2.25″ tires. There’s also a removable rear fender mount on the seat stays.
We offer two groups (Rival1 and Shimano GRX), two wheel sizes (700 or 27.5″), one more than two color options (Salt Water Taffy, Wizard Potion or Sacre Bleu) and two rim material options (carbon or aluminum) .
The Hakka comes in five frame sizes: 49, 53, 55, 58, 61
Frame Material | Carbon fiber monocoque |
Frame Weight | 1000g |
Wheel Size | 700c or 650b/27.5" |
Rear Axle | 142mm x 12mm thru-axle |
Front Axle | 100mm x 12mm thru-axle |
Seatpost Diameter | 31.6mm / Dropper Post Compatible |
Front Brake | Flat-mount front disc, 160mm rotor |
Rear Brake | Flat-mount rear disc, 160mm rotor |
Chainstay Length | 430mm |
Bottom Bracket | T47 Threaded Bottom Bracket, 68mm, External Cups |
Tapered Headtube | IS 41/28.6 upper, IS 52/40 lower |
Drivetrain | 1X or 2X compatible, Di2 compatible, up to 48t 1X chainring, 34t minimum |
Front Derailleur Spec | 34.9mm clamp, bottom pull |
Colors | Salt Water Taffy, Wizard Potion or Sacre Bleu |
Sizes | 49 / 53 / 55 / 58 / 61 |
Frame Warranty | 7 Years |
