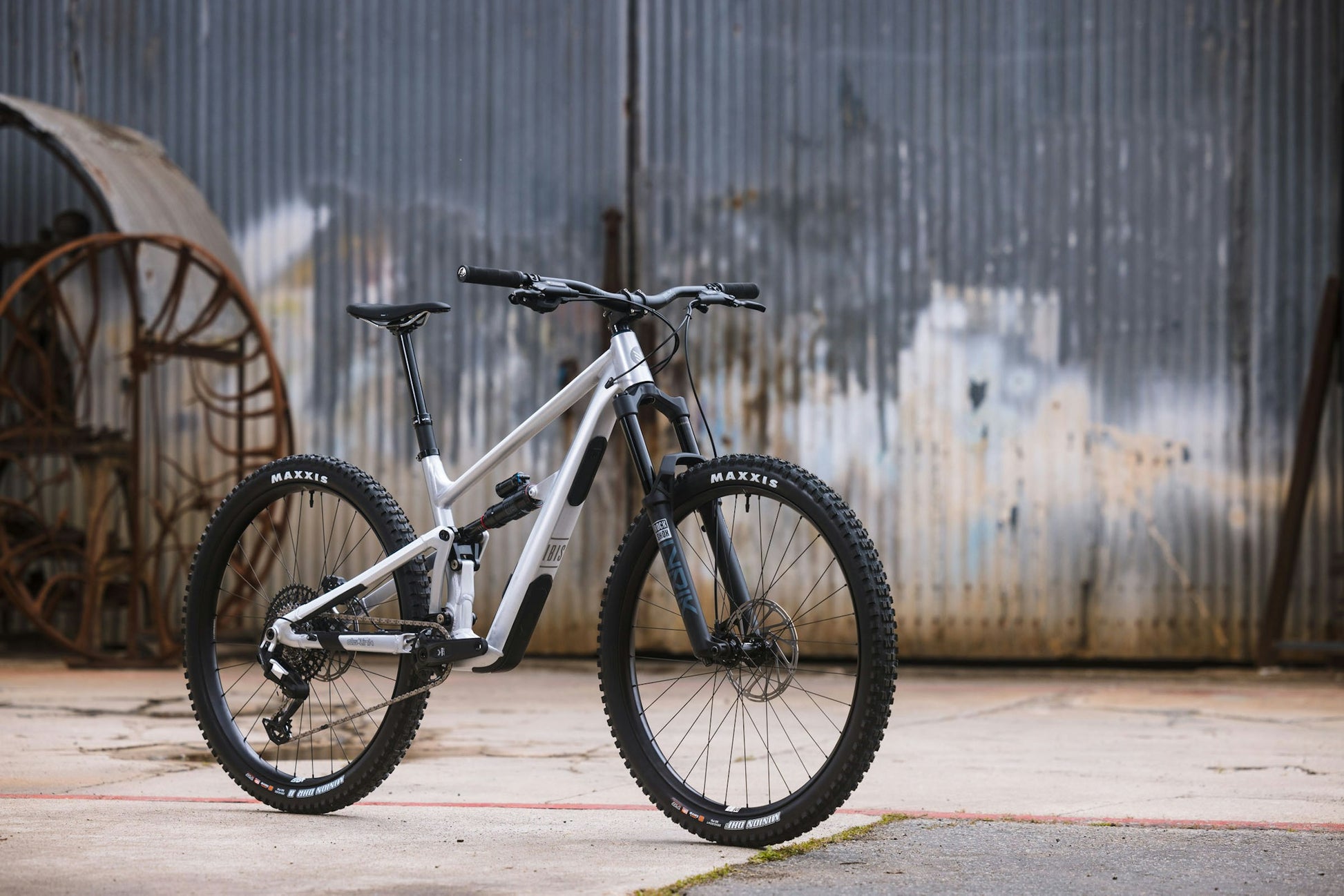

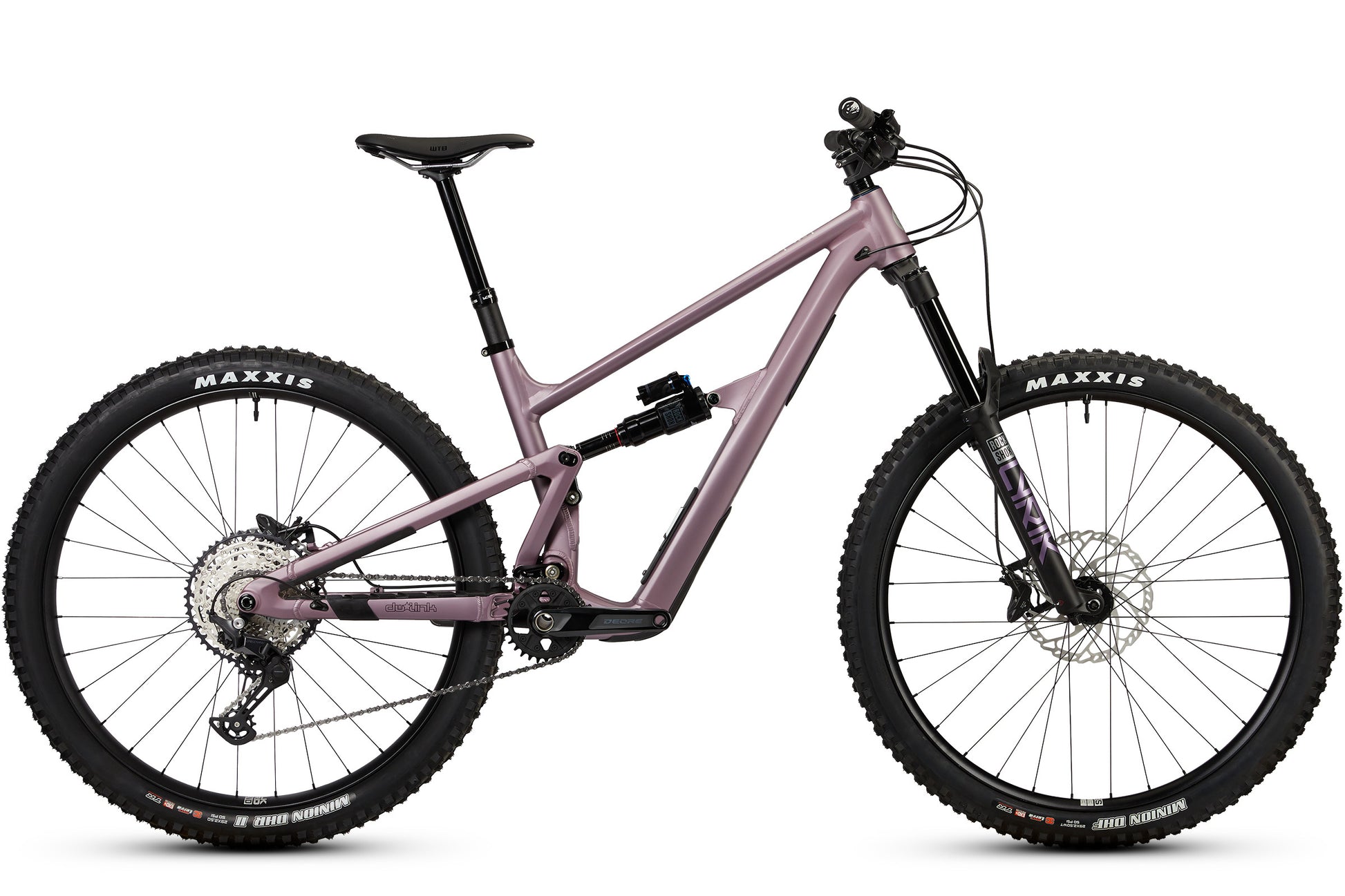

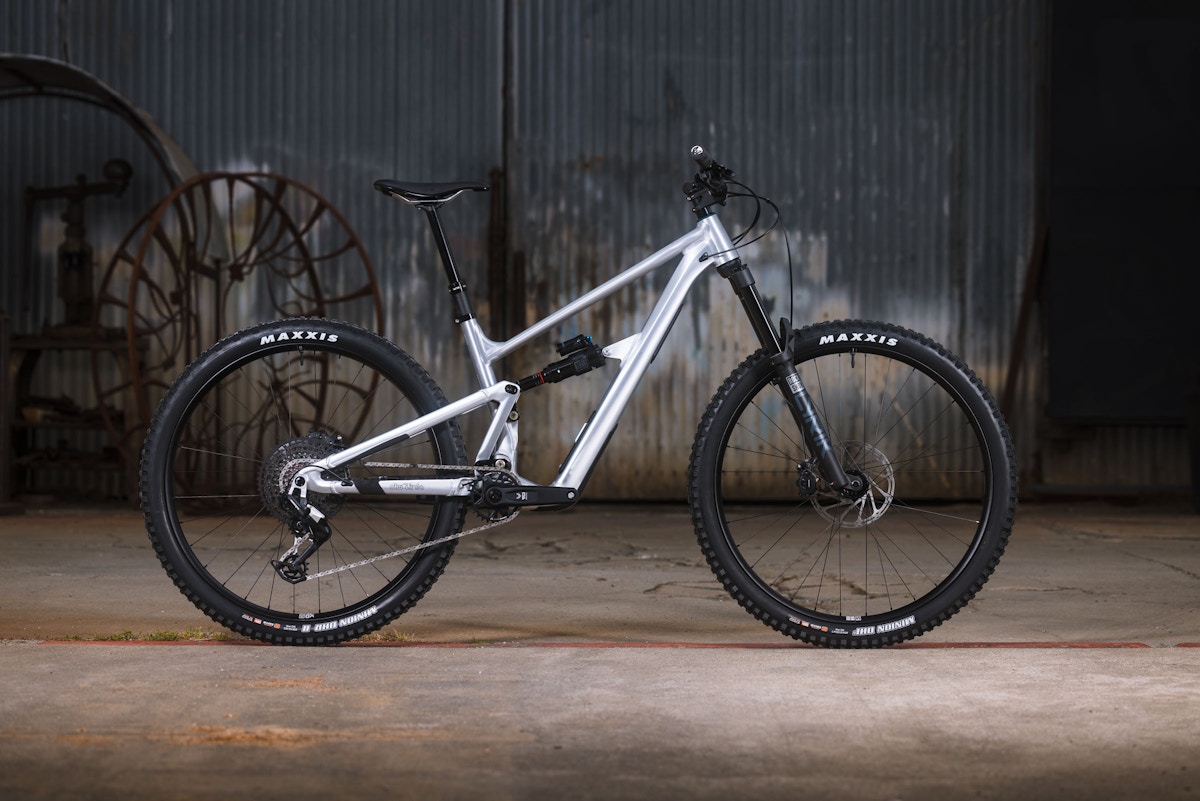

Ibis Ripmo AF

Ibis Ripmo AF

Regular price $2,249.00 USD
Regular price $2,999.99 USD Sale price $2,249.00 USD
Sale Sold out
Size
Color
Build Kit

IT’S METAL

Over our long tenure from mountain biking’s awkward adolescence to its current anything-shreddy era, we’ve experimented with steel, aluminum and titanium—remember the Bow-Ti, the first superbike? We remember the metal times too, and it feels good to offer a premium ride experience to our broadening family of riders, courtesy of durable, affordable aluminum alloy.

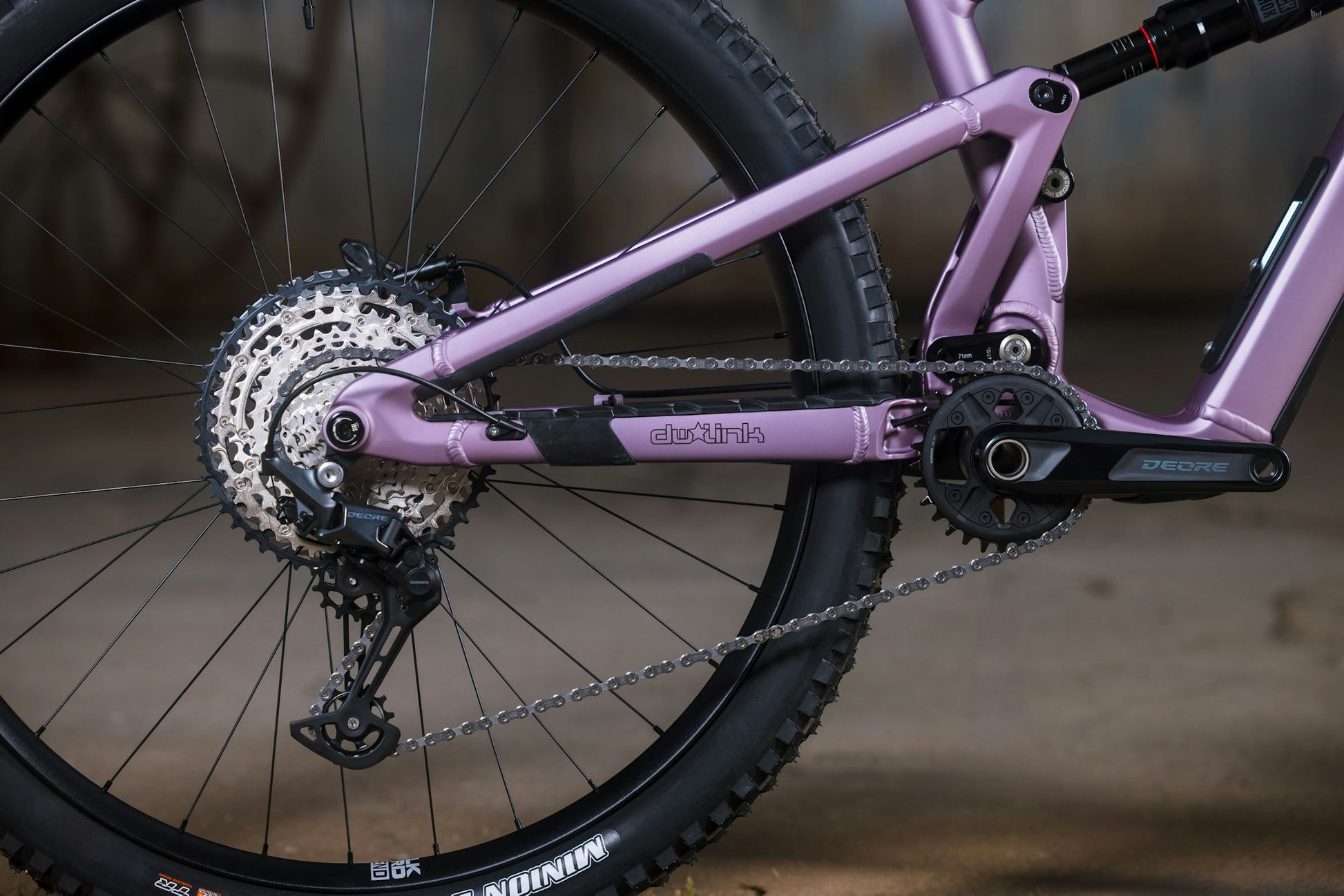

UNIVERSAL DERAILLEUR HANGER

The Rip­mo AF UDH fea­tures a UDH derailleur for max­i­mum future com­pat­i­bil­i­ty and moves to a 55mm chain line. The wider chain line allows for a stiffer chainstay.

MODERN GEOMETRY

With a steep, 76-degree seat tube angle and a rangy but not stratospheric reach, the Ripmo AF places riders centrally and upright over the bottom bracket. It makes for an efficient position that can go the long haul without placing too much weight on its slack, 64.9-degree headtube angle. A 44mm reduced-offset fork is more surefooted on steep descents and steadies high speeds. Better up, better down.

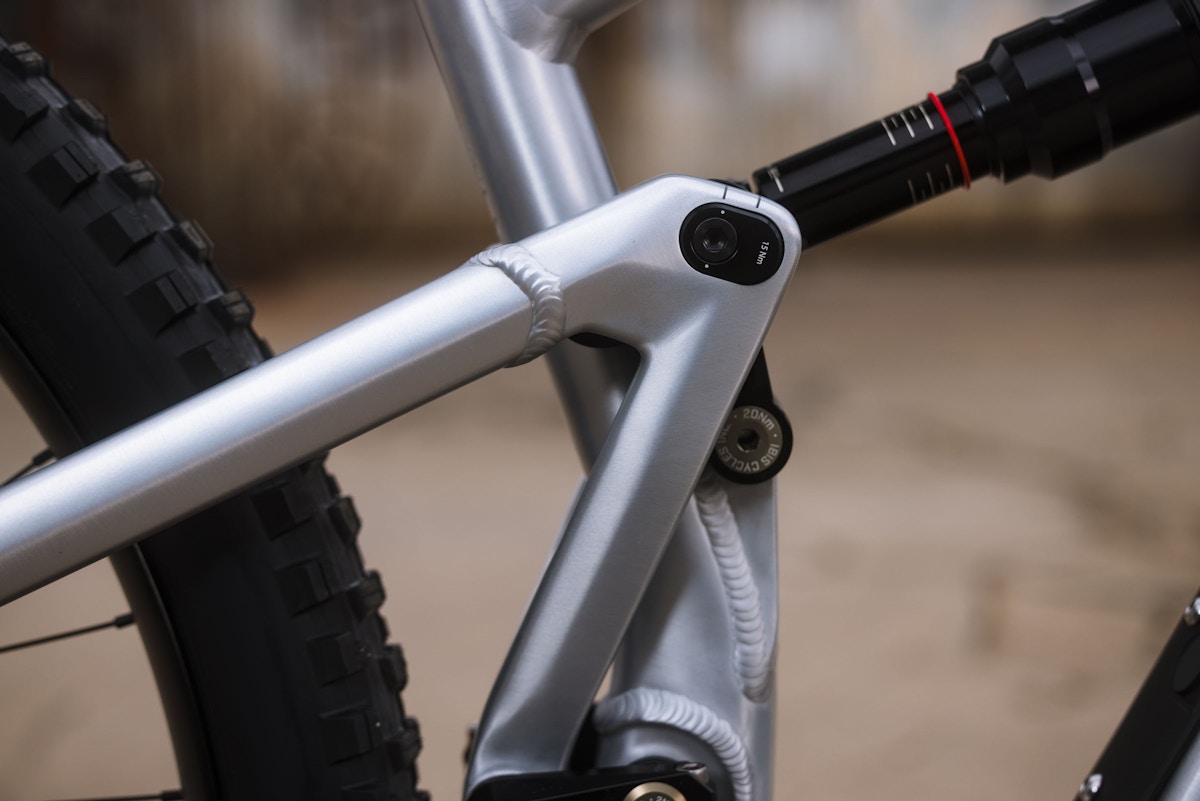

DW LINK

Since 2005, we’ve part­nered with sus­pen­sion guru Dave Wea­gle on the dw-link sus­pen­sion plat­form. It pro­vides an unpar­al­leled com­bi­na­tion of climb­ing effi­cien­cy and down­hill per­for­mance, which has been proven repeat­ed­ly at the high­est lev­els of racing.

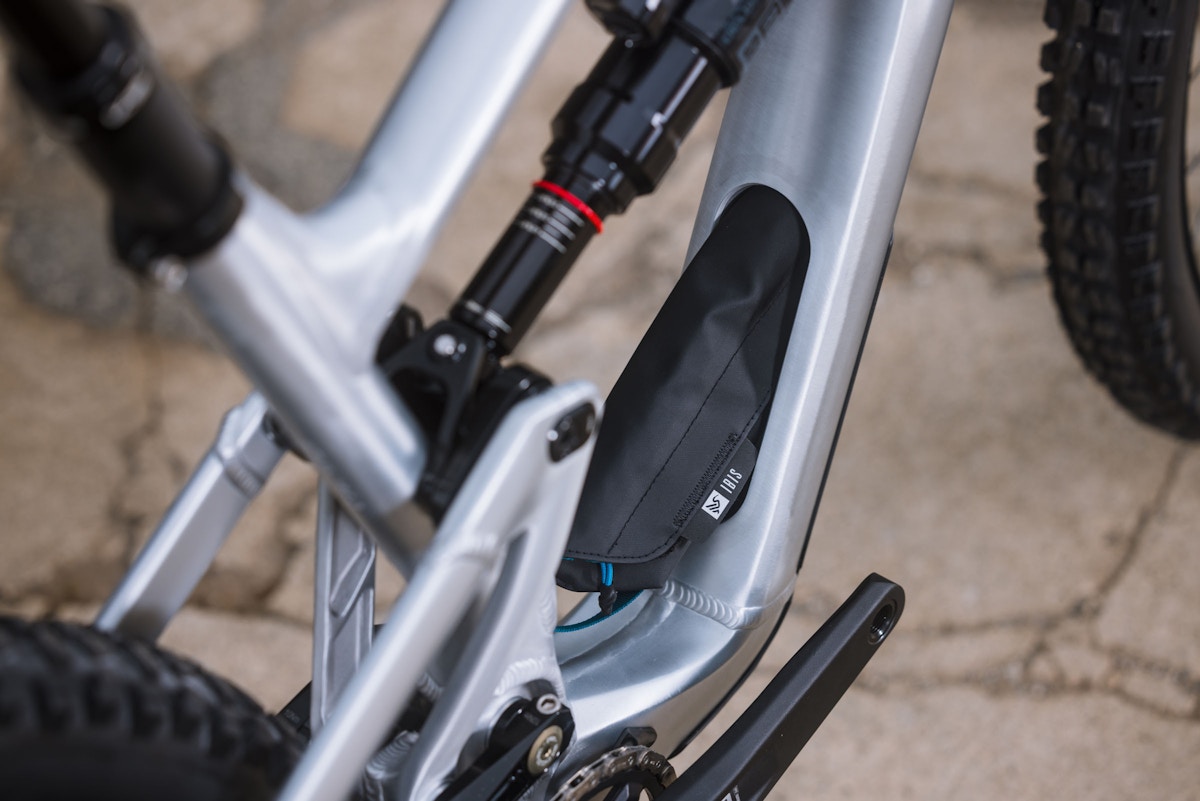

AIR & COIL COMPATIBLE

The Ripmo AF is compatible with both coil and air shocks due to a more progressive leverage rate. It allows for coil’s linearity to thrive and we spec air shocks with tunes that provide pop without feeling too harsh. On the trail, it gives the suspension a supple feel throughout the entirety of the stroke, enhancing traction no matter how deep you dig.

2.6” TIRE CLEARANCE

Ibis helped pio­neer the wide rim rev­o­lu­tion, which inspired the new crop of wider 2.4” — 2.6” tires. When paired togeth­er, this com­bo can be run at ultra low pres­sures which results in elbow-drag­ging cor­ner­ing trac­tion with­out sac­ri­fic­ing straight line speed.

PICK YOUR SIZE

We use words like small, medi­um, and large to describe our siz­ing because it’s easy to under­stand, but our ultra low stan­dovers give you the abil­i­ty to size your frame based on reach and preference.

LONG DROPPER POST

What’s better than a dropper post? A longer one. Our frames are designed to accommodate the longest dropper posts possible. Riders over 5’8 (or 173cm) can easily run a 185mm dropper post, while folks between 5’ and 5’8 (152cm - 172cm) can use a post 125mm or longer depending on inseam length.

REMOVABLE ISCG05 MOUNT

Our optional ISCG 05 mount is there if you want it, removable if you don’t.


LIFETIME WARRANTY

If it’s our fault, we’ll fix it. Simple as that.

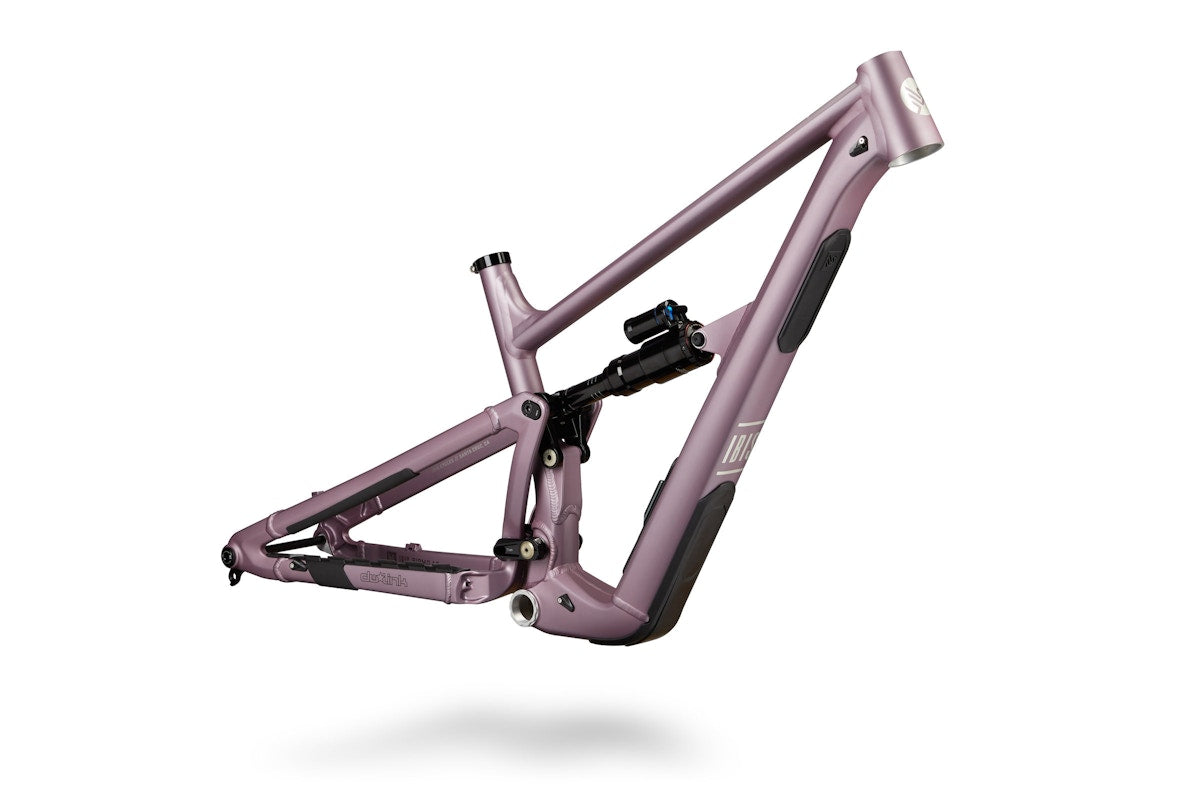

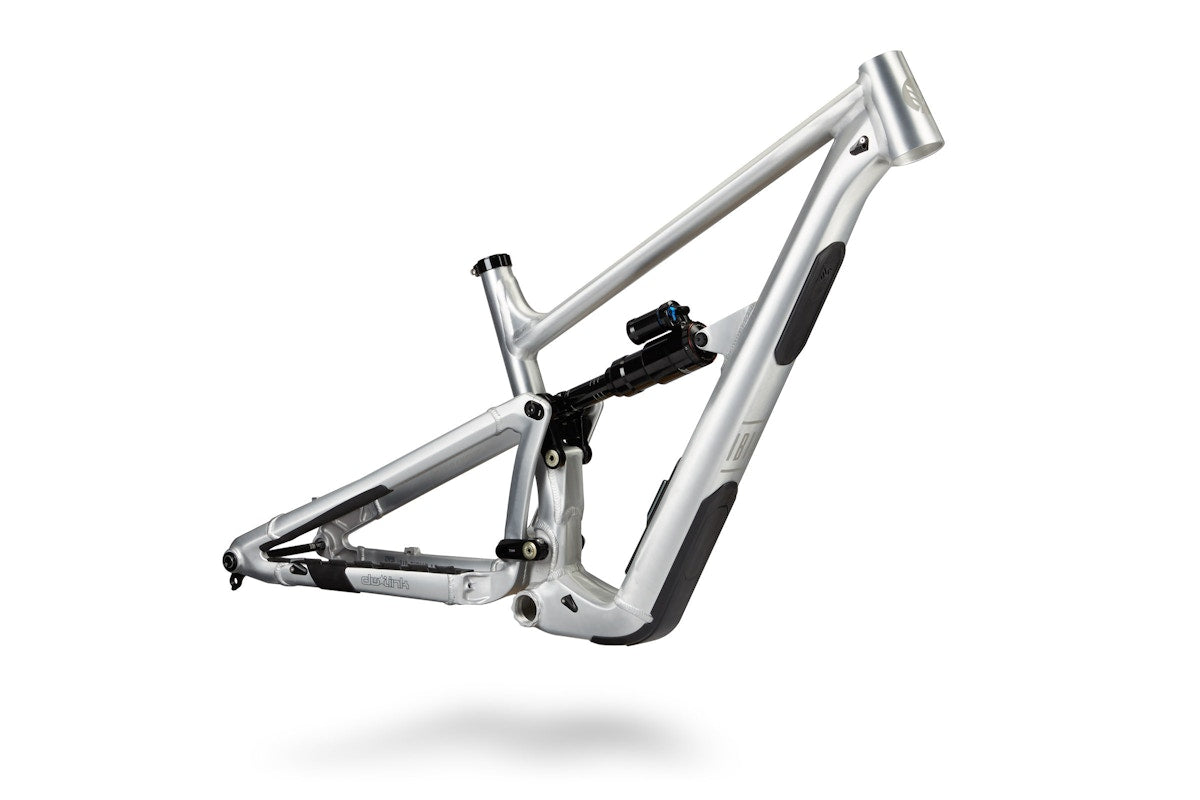

Version V1 UDH
Frame Material Aluminum
Frame Weight 8.25 lbs / 3.74 kg (size M with Marzocchi Bomber Air)
Wheel Size 29” / up to 2.5" tires
Front Travel 160mm
Rear Travel 147mm
Shock Specs 210 x 55mm
Boost Axles 148mm rear / 110mm front
Seatpost Diameter 31.6mm
Rear Brake 160mm Post mount / 203mm max rotor
Chainstay Length 435mm
Bottom Bracket Threaded (73mm English threaded)
Chainline 55mm chainline, 182mm Q Factor
Derailleur Hanger SRAM UDH
ISCG 05 Compatible ISCG 05 Tab Mount available separately
Headset ZS44 upper / ZS56 lower
Colors Cinnabon Bronze or Espresso Black
Sizes S / M / L / XL
Frame Warranty Lifetime
