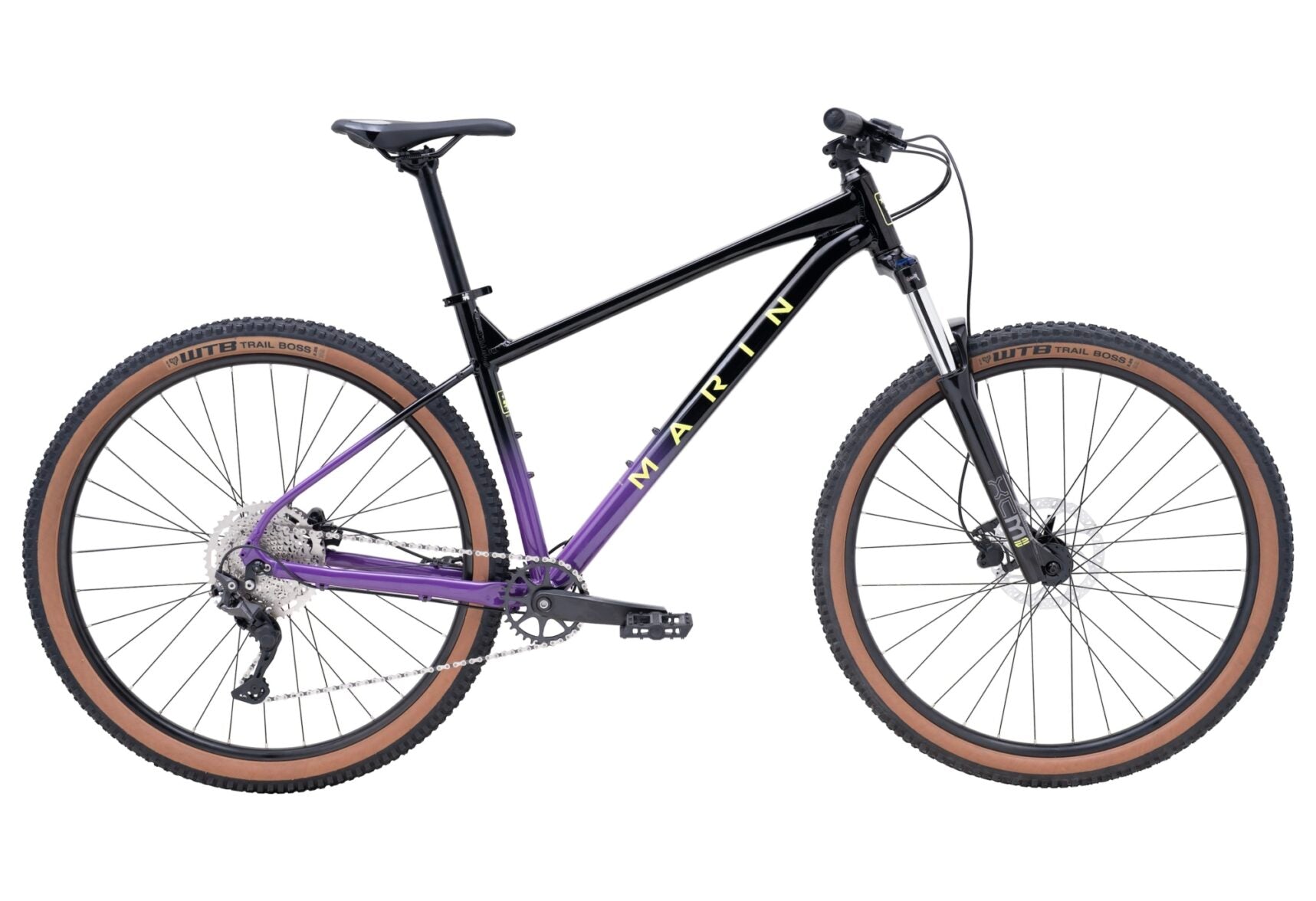

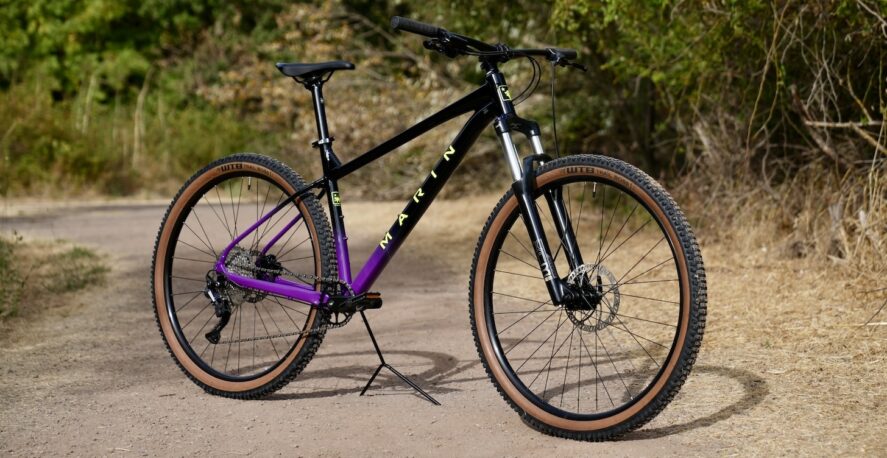

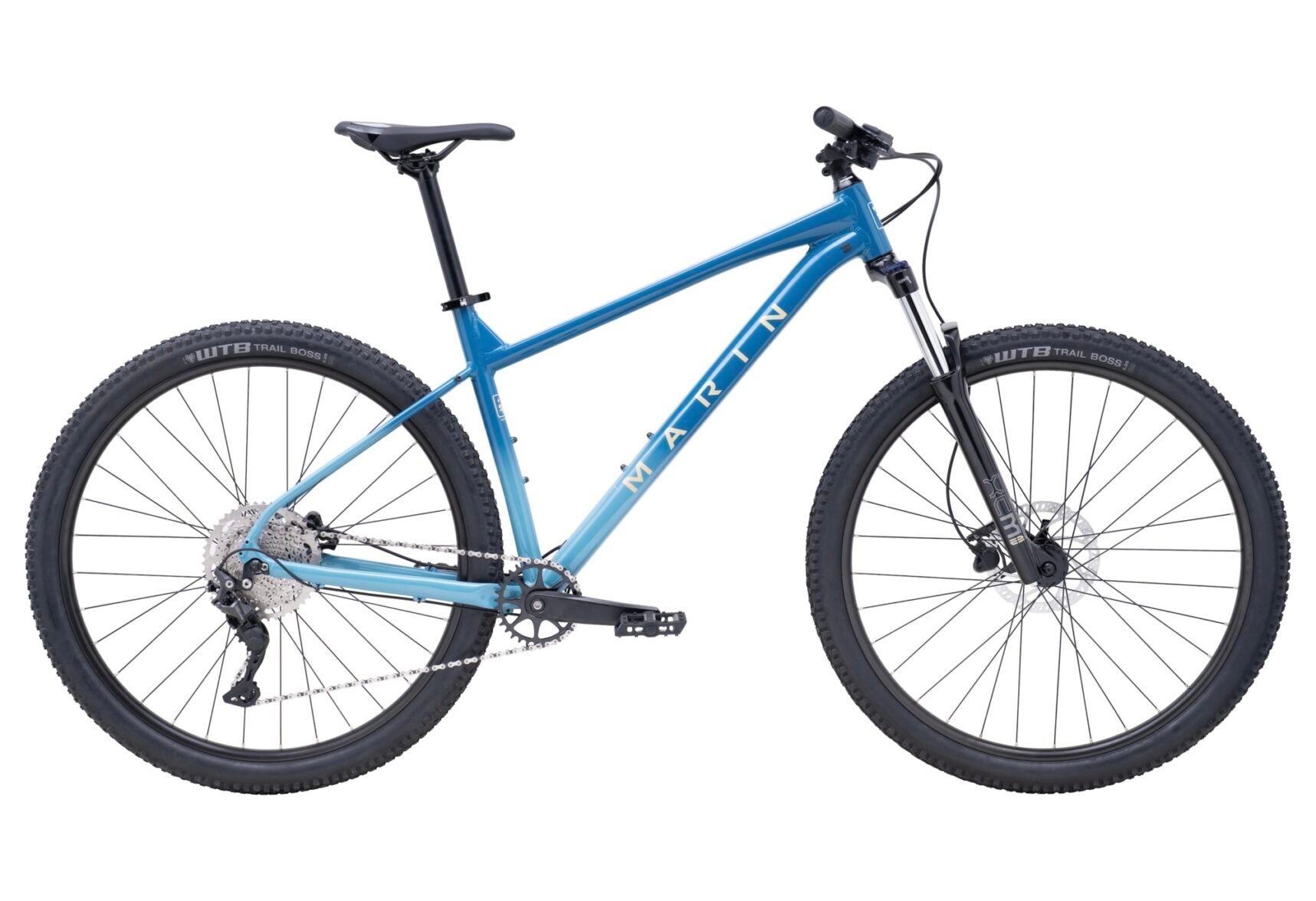

MARIN BOBCAT TRAIL 4
MARIN BOBCAT TRAIL 4
HARDTAIL TRAIL RIDING
AGGRESSIVE SINGLETRACK
The Marin Bobcat Trail 4 is our mid-level Bobcat, packing plenty of fun into a bang-for-bike package. Very much a legit MTB, the Bobcat 4 is stacked with quality kit for off-road adventures and includes an SR/Suntour fork, microSHIFT Advent wide-range 9-speed shifting and Tektro hydraulic brakes. Like all Bobcats, it’s built around a fast, comfy and fun Series 2 aluminum frame and is available in 27.5” or 29” wheels, depending on frame size.
Key upgrades over the Bobcat Trail 3:
- MicroShift Advent 9 1x Drivetrain
- WTB Trail Boss Comp tires
SPECIFICATIONS
-
FRAME
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
-
FRONT SUSPENSION
SR/Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
-
RIMS
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
-
HUB, REAR
Forged Alloy, Disc, 32H
-
HUB, FRONT
Forged Alloy, Disc, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
WTB Trail Boss Comp, 27.5/29x2.25, Wire Bead
-
DERAILLEUR, REAR
microSHIFT Advent 9, Clutch
-
DERAILLEUR, FRONT
-
SHIFT LEVER
microSHIFT Advent 9 Trail
-
CRANKSET
Alloy Crank, Steel Narrow-Wide Chainring, 32T
-
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
-
CHAIN
KMC X9
-
CASSETTE
SunRace 9-Speed, 11-46T
-
BRAKE, FRONT
Tektro M275 Hydraulic Disc, 180mm Rotor
-
BRAKE, REAR
Tektro M275 Hydraulic Disc, 160mm Rotor
-
BRAKE LEVERS
Tektro M275 Hydraulic
-
HANDLEBAR
Marin 31.8 Riser, 12mm Rise, 780mm Width
-
STEM
Marin Alloy, 31.8mm Clamp, 45mm
-
GRIPS
Marin MTB, Closed End
-
HEADSET
FSA No.10-P
-
SEATPOST
Marin Alloy, 30.9
-
SADDLE
Marin MTB
-
PEDALS
Nylon Platform
Specifications, pricing, and availability are subject to change without notice.
