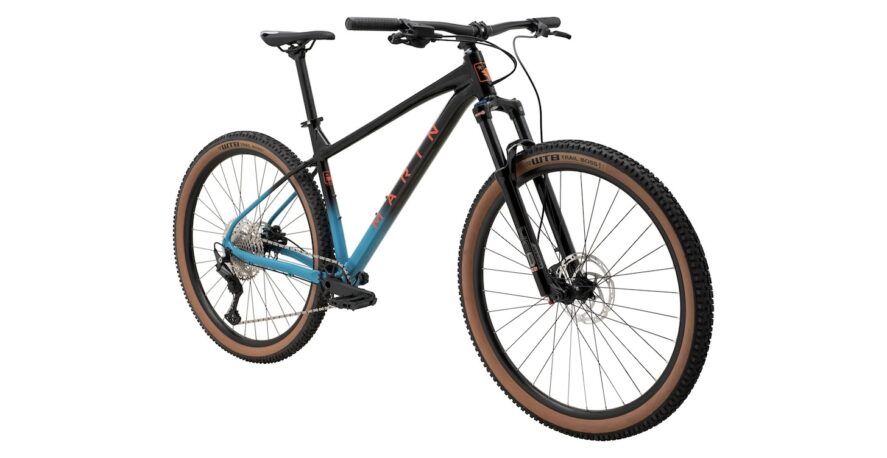

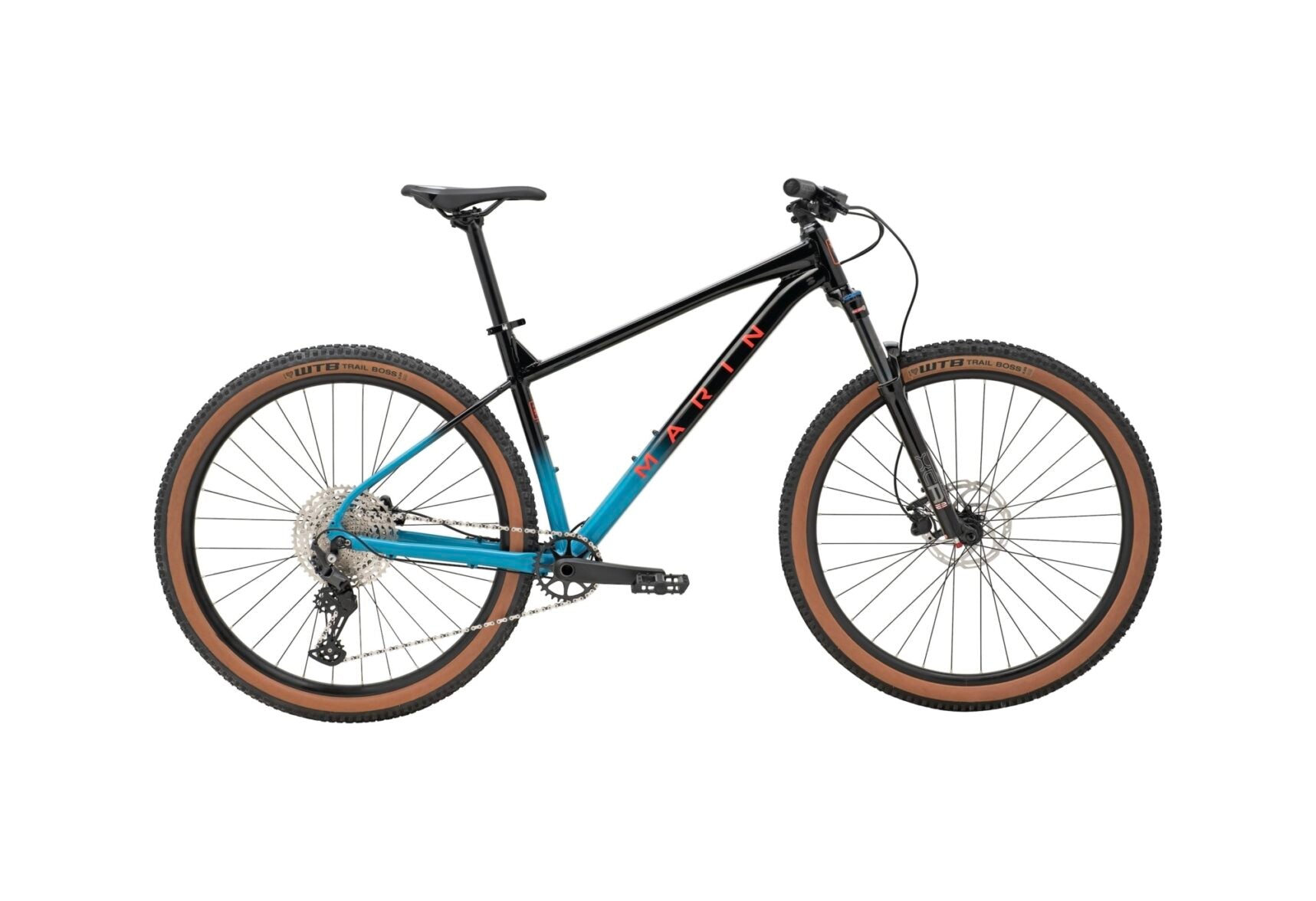

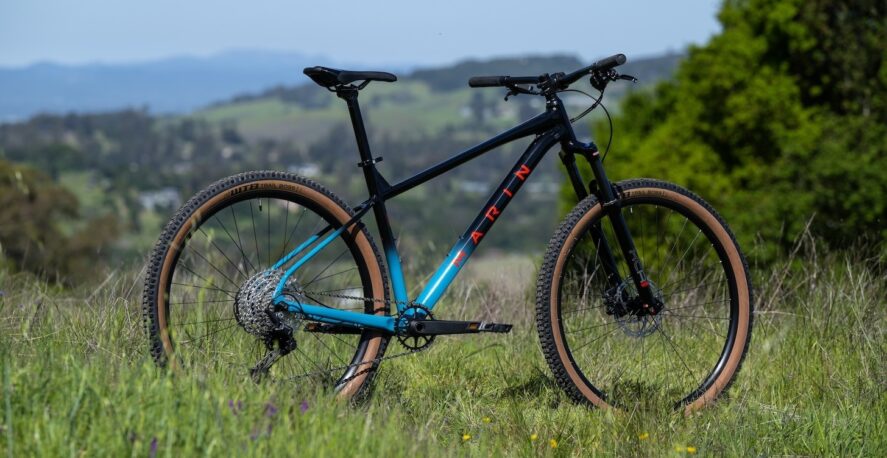

Marin Bobcat Trail 5

HARDTAIL TRAIL RIDING

AGGRESSIVE SINGLETRACK

Super capable, super fun, super value. The Marin Bobcat Trail is your perfect gateway to mountain biking, combining quality components, a lightweight aluminum frame and trail-ready geometry.

The best of the Bobcats, the Marin Bobcat Trail 5 is our chance to really push what our bang-for-your-buck MTB can do. Fast, comfy and fun Series 2 aluminum frame? Check. 1X drivetrain? You got it. SR/Suntour XCR fork? You bet. Shimano CUES 11-speed shifting, Tektro hydraulic brakes and trendy tanwall WTB tires? Damn straight! And, of course, your choice of 27.5” or 29” wheels.

Specifications

• Frame

  Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

• Front Suspension

  SR/Suntour XCR LOR-DS BOOST, Thru-Axle, 120mm Travel, Lockout, 42mm (27.5") and 46mm (29") Offsets

• Rim

  Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

• Hub Rear

  Forged Alloy, Disc, 32H

• Hub Front

  Forged Alloy, Disc, 32H

• Spokes

  14g Black Stainless Steel

• Tires

  WTB Trail Boss Comp, 27.5/29x2.25”, Wire Bead

• Derailleur Rear

  Shimano CUES U6000GS, w/Clutch

• Derailleur Front

  -

• Shift Lever

  Shimano CUES 11-Speed

• Crankset

  Alloy Crank, Steel Narrow-Wide Chainring, 32T

• Bottom Bracket

  Sealed Cartridge Bearings, Square Taper

• Chain

  KMC LG

• Cassette

  Shimano CUES CSLG400, 11-Speed, 11-48T

• Brakes Front

  Tektro M280 Hydraulic Disc, 180mm Rotor

• Brakes Rear

  Tektro M280 Hydraulic Disc, 160mm Rotor

• Brake Levers

  Tektro M280 Hydraulic

• Handlebar

  Marin 31.8 Riser, 12mm Rise, 780mm Width

• Stem

  Marin Alloy, 31.8mm Clamp, 45mm

• Grips

  Marin MTB, Closed End

• Headset

  -

• Seatpost

  Marin Alloy, 30.9

• Saddle

  Marin MTB

• Pedals

  Nylon Platform

Specifications, pricing, and availability are subject to change without notice.
