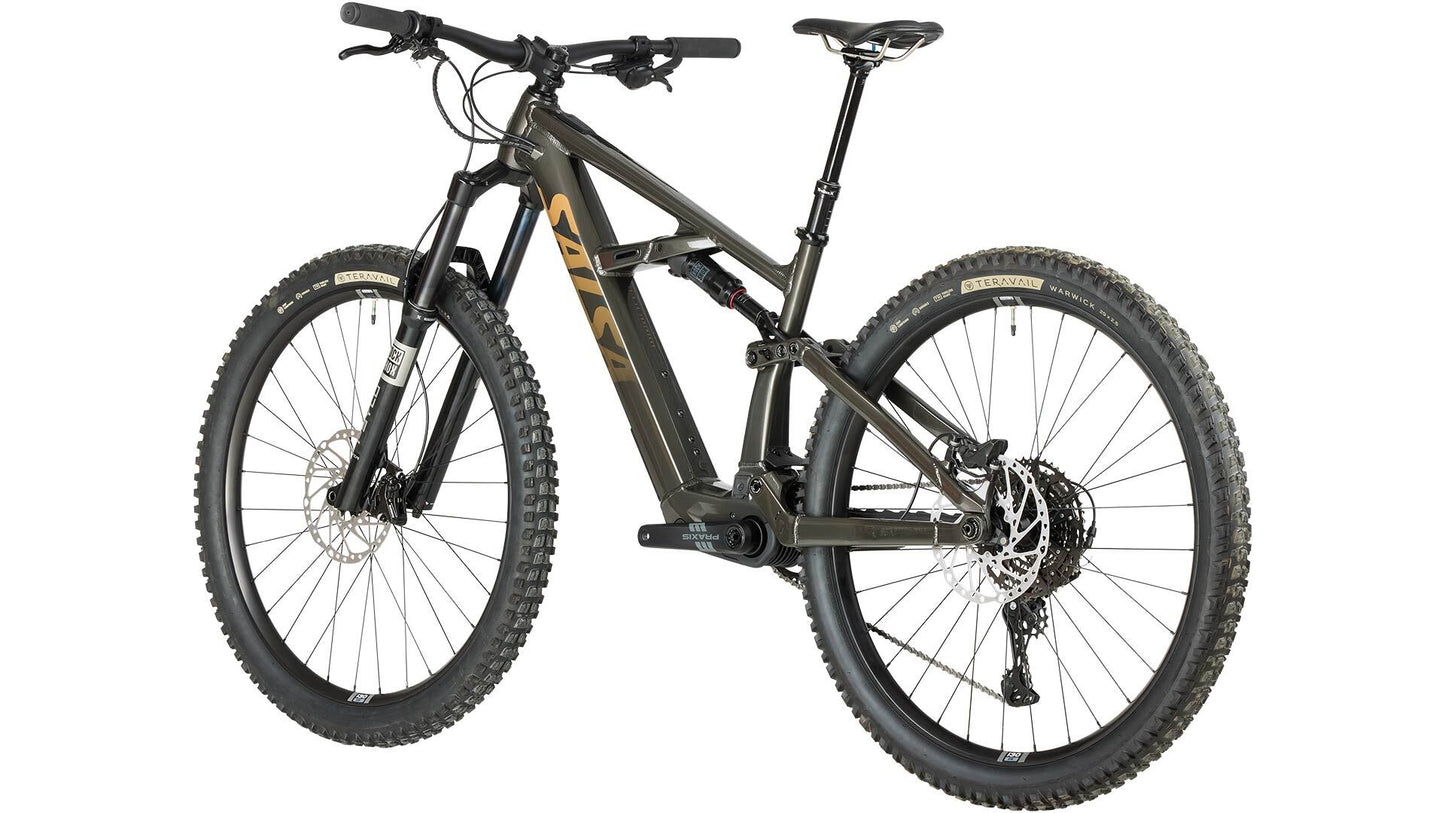

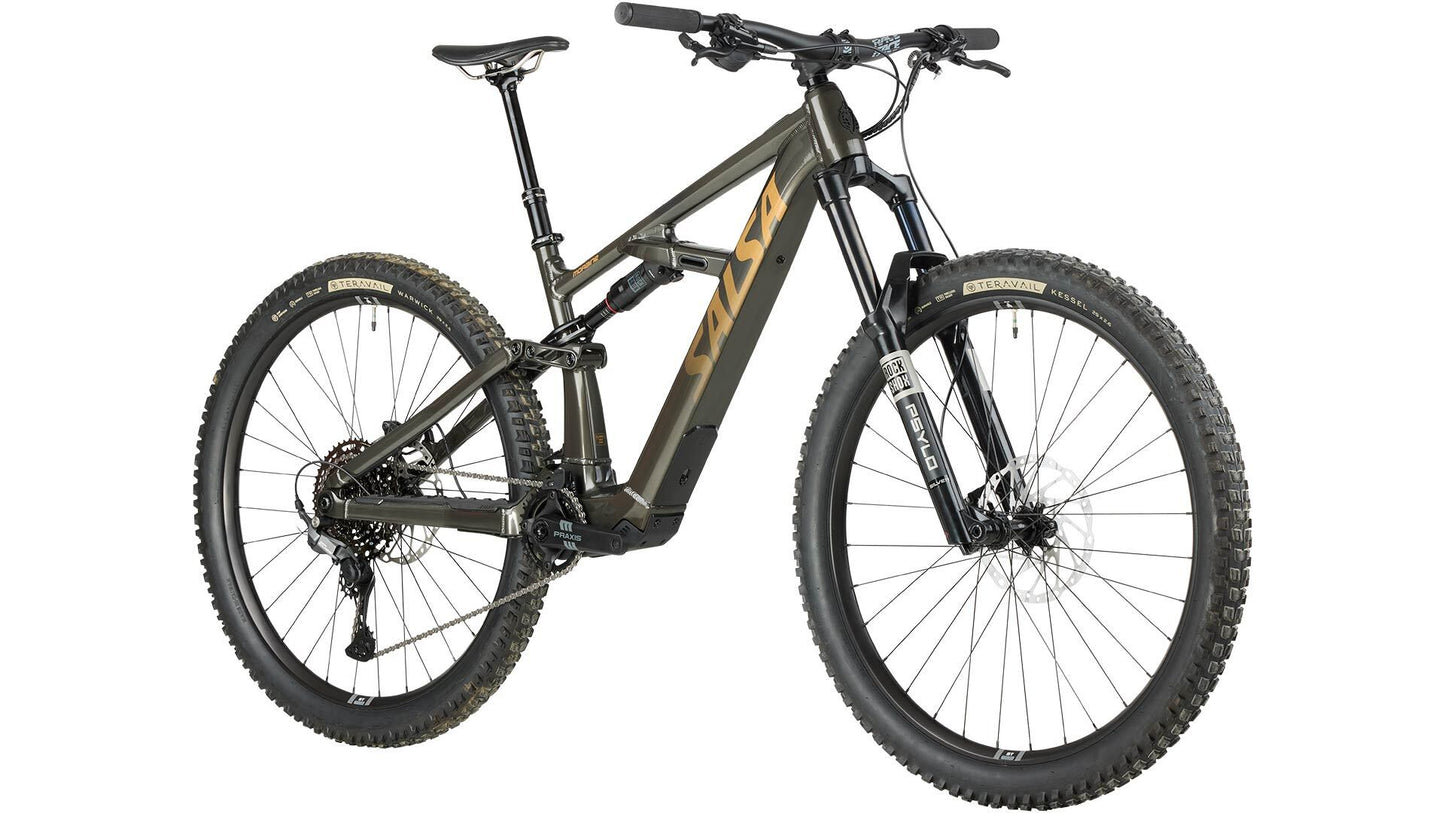

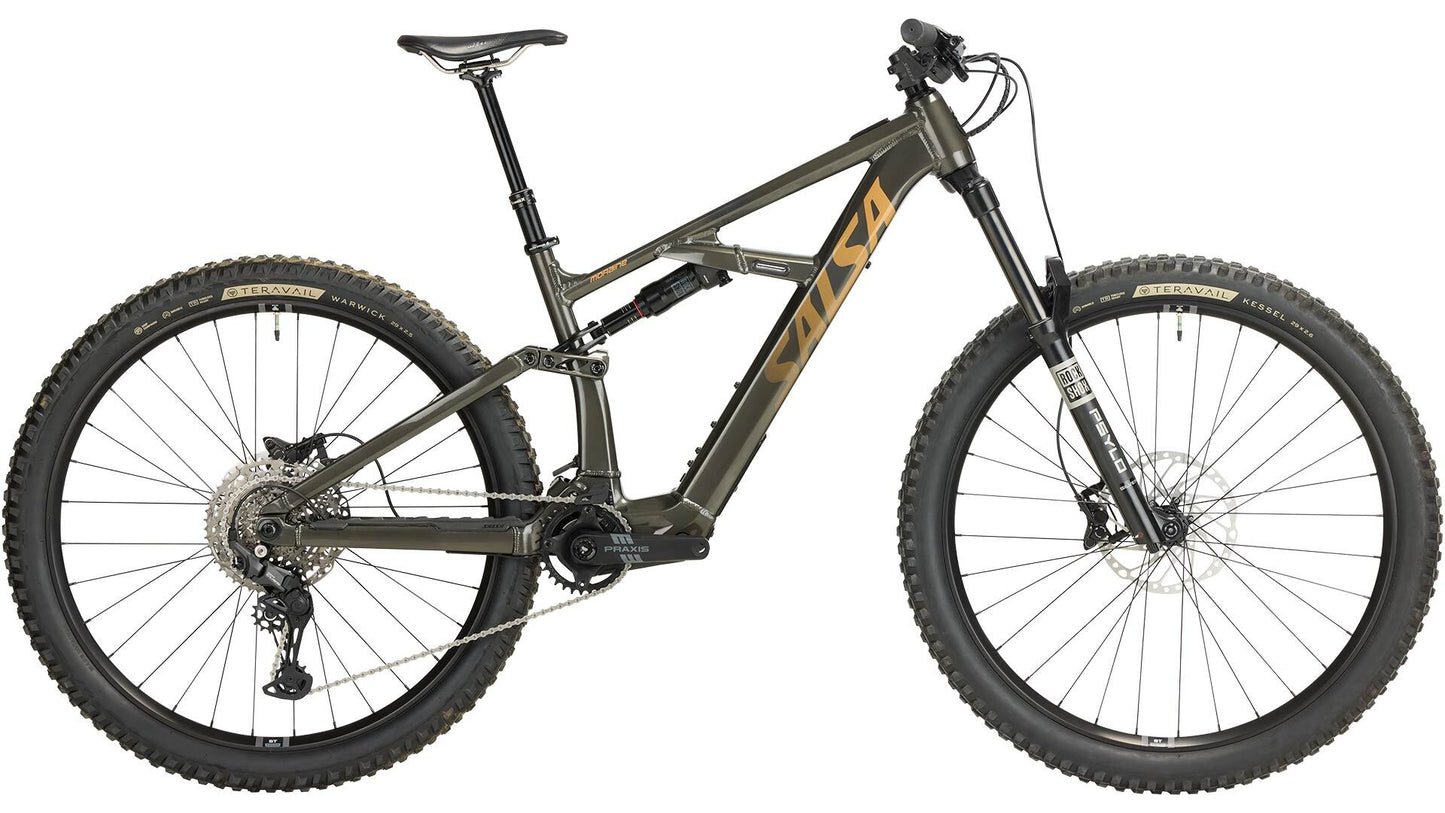

Salsa Cycles Moraine Cues 10
Salsa Cycles Moraine Cues 10
Pickup available at Shop location
Usually ready in 2-4 days
Moraine CUES 10 is an all-mountain eMTB that lets you ride wherever your heart wants, without your legs and lungs disagreeing: think long days of ridgelines, rocky slopes, and perfect viewpoints. Moraine’s 6061-T6 aluminum frame and its playful geometry say “heck yes” to everything. The Fazua Ride 60 drive system encourages you further with 60Nm of torque and a 430Wh battery in a quiet, compact package. Moraine’s 145mm of Split Pivot rear suspension teams up with a 160mm fork for supportive and efficient pedaling and soaking up the terrain. Our on-bike storage keeps the essentials secured to your frame and the sweat off your back. Shimano’s CUES 10 drivetrain is a workhorse with everything you need (smooth shifting, durability, wide range) and nothing you don’t. Moraine makes big days in the mountains more fun.
- Meets UL 2849, and UL 2271 certification
Moraine runs on Fazua’s Ride 60 drive system, a lightweight unit weighing in at just 9.2lb (4.2kg) yet delivering 60Nm max torque. Moraine’s mid-drive setup also keeps the motor’s weight low and centered on the bike for neutral handling. The Fazua Ride 60 is a Class 1 motor with electric assist up to 20 mph/32 kph.
The Fazua Ride 60 system delivers up to 60Nm of assist, with three customizable assist levels and a speed sensor to control torque output.
Frameset
- Frame
- Moraine Aluminum
- Fork
- Rockshox Psylo Silver RC, 160mm
- Rear Shock
- Rock Shox Deluxe Select
- Color
- Black Coffee
Drivetrain
- Drive Unit
- Fazua Ride 60
- E-Bike Classification
- Class 1
- Drive Type
- Mid-drive
- Max Assist Speed
- 20 mph
- Motor Torque
- 60Nm
- Range Estimate
- 40 miles
- Assist Levels
- Breeze / River / Rocket / Boost
- Walk Assist
- Yes
- Max Motor Assist
- 450W (w/ Boost function)
- Throttle
- No
- Battery Capacity Watt Hours
- 430Wh
- Battery Capacity Amp Hours
- 9.95Ah
- Battery Power Volts
- 43V
- Battery Type
- Energy 430 Fix (Lithium Ion)
- Removable Battery
- Removable for Service
- Estimated Charge Time
- 3.5 hours
- Charger Included
- Yes
- Lights Included
- No
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano CUES U6000 Shadow Plus
- Cassette
- Shimano LG400, 11–48t, 10-speed
- Chain
- Shimano LG500
- Crankset
- FSA CK-730 Fazua Ride 60 crank arms, 55mm CL, 104 BCD Spider, MegaTooth 34t steel chainring. MRP 1x SL TR2 for Fazua Ride 60
- Shifter
- Shimano CUES U6000
- Brake Levers
- Shimano M4100
- Brake Caliper
- Shimano MT420
- Rotors
- Shimano Deore RT64, Center Lock (200mm front and rear)
Components
- Headset
- FSA Orbit 1.5E ZS NO.57E
- Stem
- Salsa 35.0 Guide Trail, 40mm
- Handlebar
- RaceFace Chester 35.0, 20mm rise, 780mm wide
- Grips/Bar Tape
- Salsa file tread, lock-on
- Seatpost
- Tranz X YSP18, SM, MD: 150mm travel; LG, XL: 170mm travel
- Saddle
- WTB Solano, Medium, Fusion Form, steel rail
Wheels
- Front Hub
- Shimano TC500-15-B CLD
- Rear Hub
- Shimano TC500-MS-B CLD
- Spoke
- 2.0mm straight gauge, black
- Rim
- WTB ST i30 Tough TCS, 32h
- Front Tire
- Teravail Kessel 29 x 2.6", Durable casing, WTB TCS Sealant included (tubes installed)
- Rear Tire
- Teravail Warwick 29 x 2.5", Durable casing, WTB TCS Sealant included (tubes installed)
Weight
- Complete Bike Weight
- 50 lbs 13 oz (Medium)
*Specification and pricing subject to change without notice.
