Salsa Journeyer Flat Bar Deore 700c
Salsa Journeyer Flat Bar Deore 700c
Couldn't load pickup availability

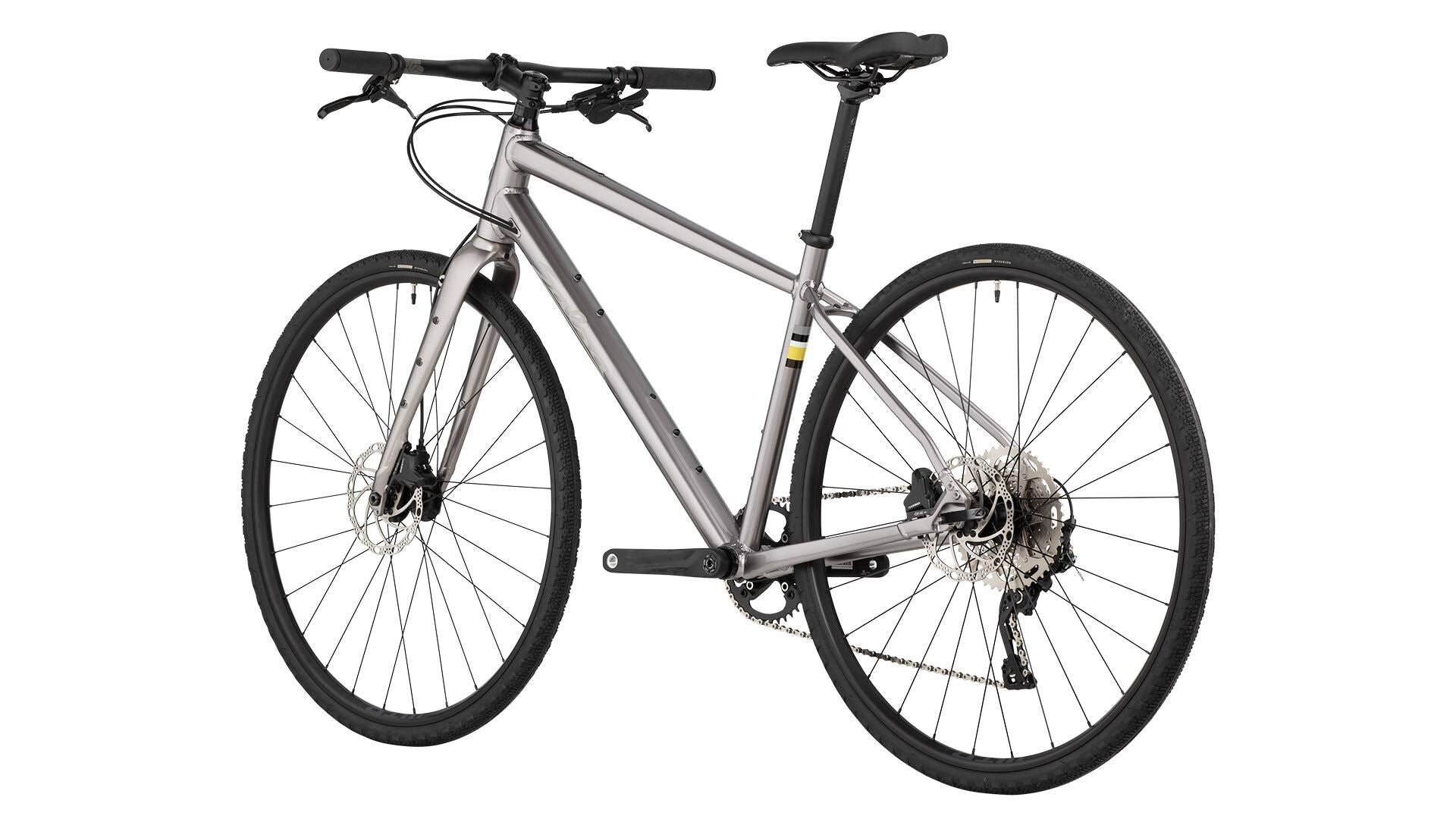

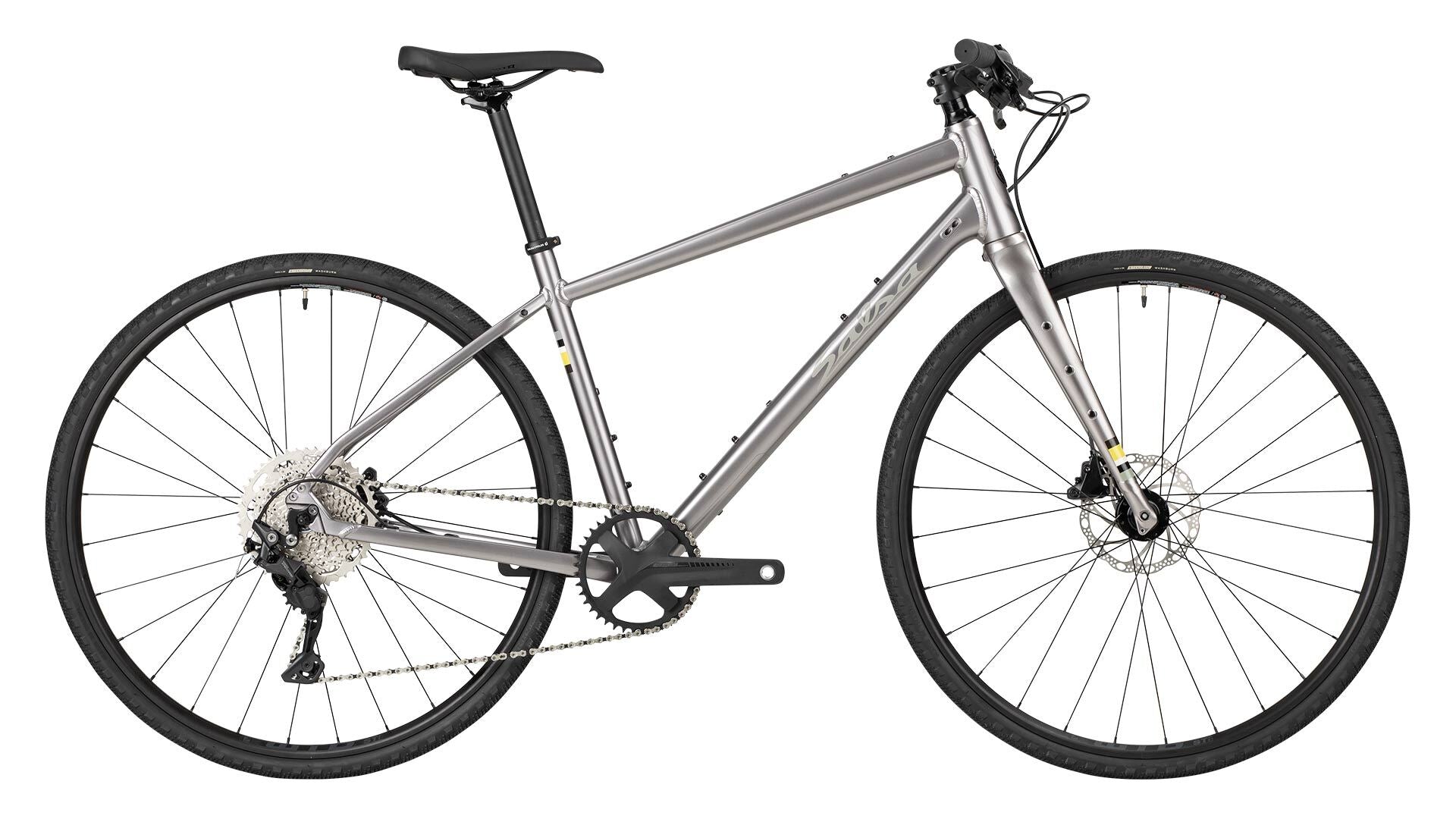

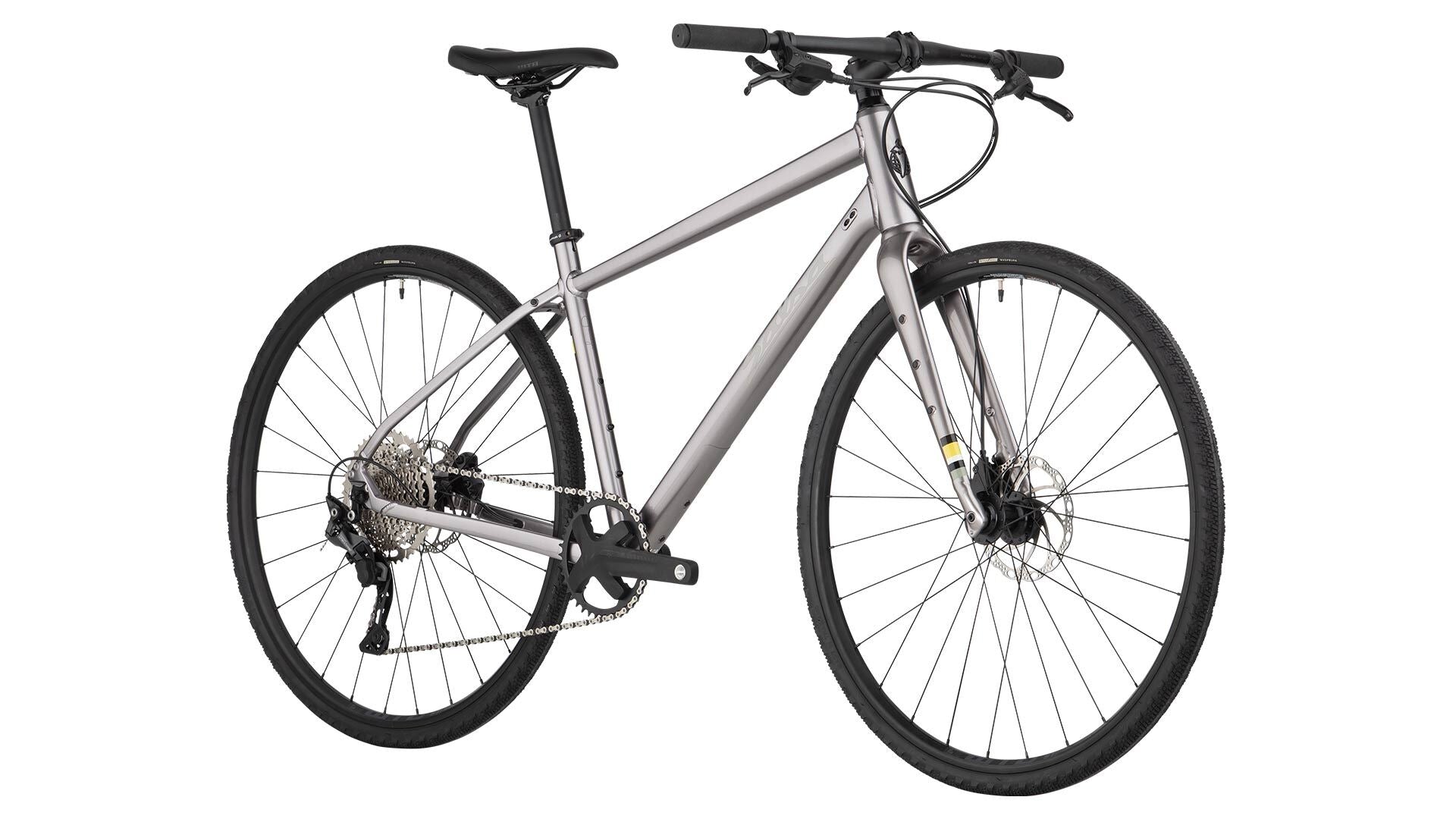

Journeyer Flat Bar Deore 700c is more than capable on all your local gravel routes, with a flat-bar setup that grants you lots of leverage on rough roads or with heavy loads. The all-new aluminum frame and Fantail aluminum fork focus on rider comfort and versatility. Rack and fender mounts, plus our signature Three-Pack and accessory mounts, mean that Journeyer is ready for gravel rides, bikepacking, or adding a little fun to your errand run. 700c wheels and 38 mm tires roll efficiently on a wide range of surfaces and offer traction in loose corners. Shimano’s time-tested Deore components ensure a smooth, reliable ride. Journeyer is a flat bar gravel bike that can go a long way.
Frameset
- Frame
- Journeyer Flat-Bar Quick-Release
- Fork
- Fantail Deluxe
- Color
- Ash
Drivetrain
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano Deore M5120 SGS, 10/11-speed
- Cassette
- Shimano Deore M4100, 11–46t, 10-speed
- Chain
- Shimano HG54
- Crankset
- Omega MegaExo 40t, FSA Road MegaExo bottom bracket
- Shifter
- Shimano Deore M4100
- Brakes and Rotors
- Tektro HD-R280, TR-160-22 (6-bolt, 160 mm)
Components
- Headset
- FSA NO.42 ACB IS-2
- Stem
- Salsa Guide 31.8, 6-degree
- Handlebar
- Salsa Salt Flat 31.8, 700 mm
- Grips/Bar Tape
- Salsa File Tread
- Seatpost
- Promax SP-2016 27.2x350mm, 12 mm offset
- Saddle
- WTB Volt Medium, Steel, 142 x 265 mm
Wheels
- Front Wheel
- WTB Serra 12 x 100 mm TA hub, WTB ST i23 700c rim, 28h
- Rear Wheel
- WTB Serra 10 x 135 mm QR hub, WTB ST i23 700c rim, 28h
- Tires
- Teravail Washburn 700c x 38 mm, 30 tpi, Wire Bead
Weight
- Complete Bike Weight
- 25lbs (MD, with pedals)
*Specification and pricing subject to change without notice.
- Design Wheel/Tire Size
- 700c x 38 mm
- Alternate Wheel-Tire Sizes
- 700c x 32–50 mm; 650b x 47–50 mm
- Rigid Fork Length
- 405 mm axle-to-crown
- Fork Offset
- 50 mm
- Headset-Upper
- IS41
- Headset-Lower
- IS52
- Crown Race
- 40 mm
- Seatpost
- 27.2 mm
- Seat Collar
- 32.0 mm
- Dropper Compatible (Routing)
- Yes, internal
- Stem Clamp / Steerer Clamp Diameter
- 28.6 mm / 1 1/8"
- Front Derailleur Mount
- 31.8 mm OD, bottom pull
- Front Derailleur Type
- 2x, bottom swing
- Bottom Bracket
- 68 mm BSA
- Crankset (Max Ring)
- 1x crankset: 42t max.; 2x crankset: 48/33t max.
- Front Brake (Rotor)
- Flat mount 140 fork standard (160 mm max.)
- Rear Brake (Rotor)
- Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
- Front Spacing
- 100 mm
- Front Axle
- M12 x 120 TP = 1.5, TL = 12 mm thru-axle
- Rear Spacing
- 135 mm
- Rear Axle
- 10 x 135 mm quick release
- Derailleur Hanger
- Salsa 959
- Downtube Accessory Mounts
- Yes, One
- TopTube Mounts
- Yes
- Rack Mounts
- Rear: yes; Front: yes, low rider
- Fender Mounts
- Yes
- Water Bottle Mounts
- XS frame: 1 in main triangle; SM frame: 2 in main triangle; MD, LG, and XL frames: 3 in main triangle
- Three-Pack Mounts
- XS and SM frames: 1 on down tube; MD, LG, and XL frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg
